Glove compartment removal note
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

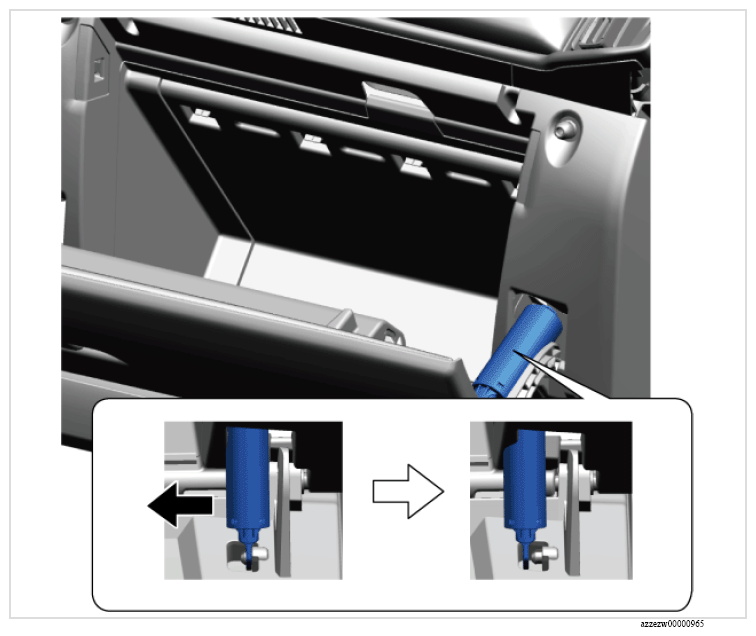

- Move the stay damper in the direction of the arrow shown in the figure and remove it from the glove compartment.
 Courtesy of MAZDA MOTORS CORP.
|

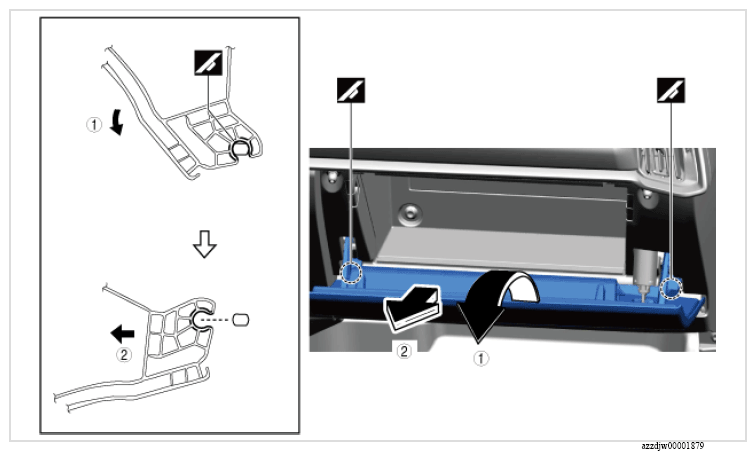

- Remove the glove compartment as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| (1) (2)... |
Servicing procedure |
