Passenger side lower panel installation note

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the passenger side lower panel to the dashboard and tighten the bolts and screws temporarily.
Install the glove compartment.

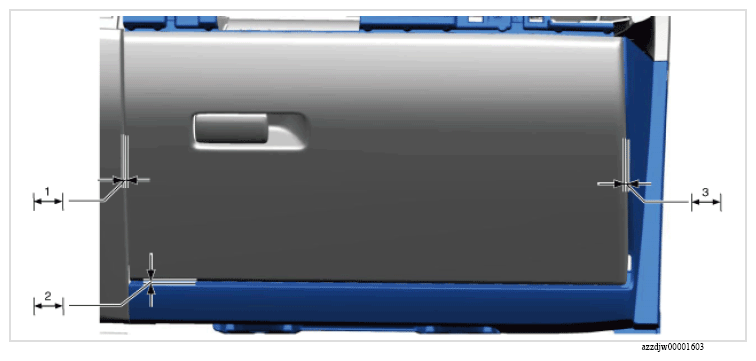

Measure the clearances shown in the figure and verify that the measured values are within the standard.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	0.5-2.5 mm {0.02-0.09 in}
	2.5-4.5 mm {0.10-0.17 in}
	3.0-5.0 mm {0.12-0.19 in}

If not within the standard, move the passenger side lower panel and adjust the installation position.

Remove the glove compartment.
Tighten the bolts and screws completely.
