Passenger side lower panel removal note

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially peel back the seaming welt until the passenger side lower panel can be removed.

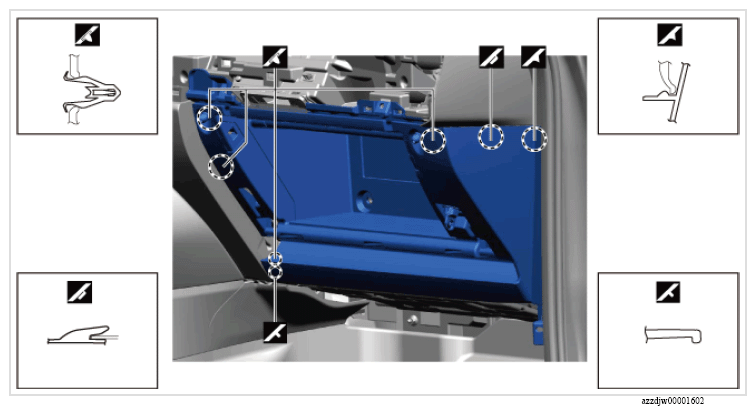

  2. Remove the passenger side lower panel as shown in the figure.
    G16710244Courtesy of MAZDA MOTORS CORP.
