Perform Radar Sensor (Front Side) Aiming
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

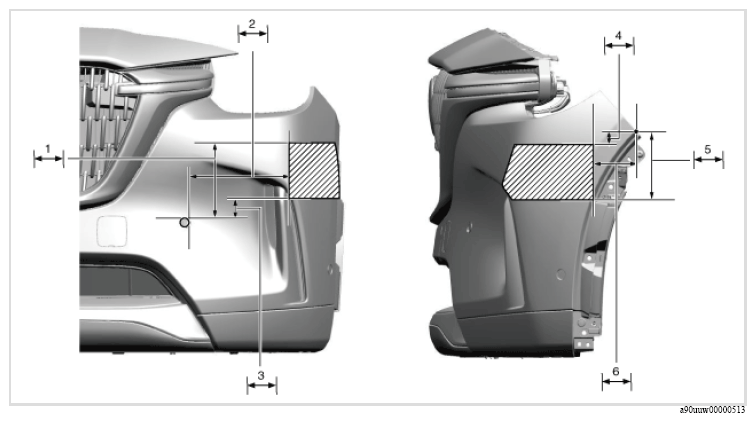

- When repainting the front bumper face, do not repaint the radar emitting area shown in the figure (same as right side) because the radar sensor (front side) aiming may not be performed correctly.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| Radar emitting area | |
| 118 mm {4.65 in} | |
| 220 mm {8.66 in} | |
| 55 mm {2.2 in} | |
| 35 mm {1.4 in} | |
| 157 mm {6.18 in} | |
| 100 mm {3.94 in} |
NOTE:
- Refer to the appropriate service information for the procedure for using the M-MDS. (Refer to [ RADAR SENSOR (FRONT SIDE) AIMING] in the appropriate troubleshooting information ).
