Remove Front Map Light: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The front map light is integrated with the following parts.
    • Emergency call switch (with emergency call switch)
    • Panorama sunroof switch (with panorama sunroof)
    • Sunroof switch (with sunroof)

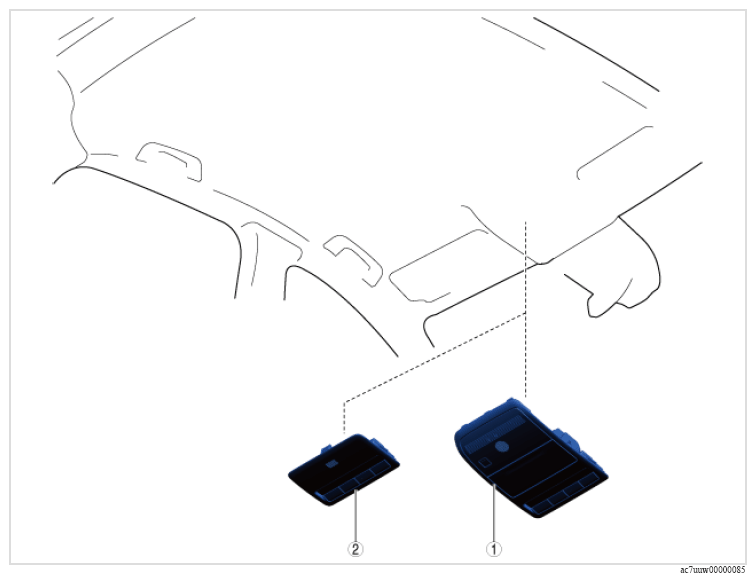

  1. Remove using the procedure shown in the figure.
    G16715636Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name Application status
1 Front map light (See Front map light (with sunglasses holder) removal note ). With sunglasses holder
2 Front map light (See Front map light (without sunglasses holder) removal note ). Without sunglasses holder
