High-Mount Brake Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

D-code

51580

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Side spoiler (See REAR SPOILER REMOVAL/INSTALLATION .)
2. Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION .)

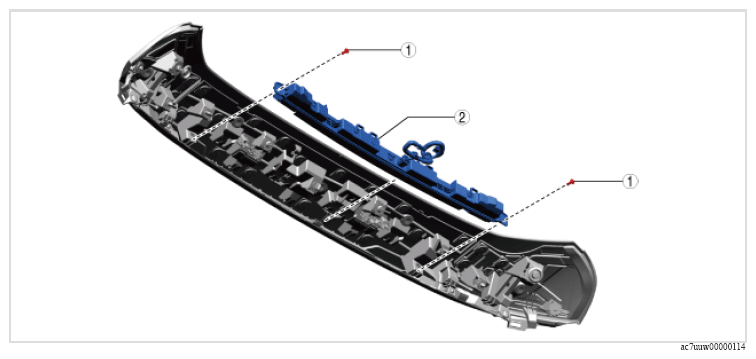

Remove using the procedure shown in the figure.

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Screw
2	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL NOTE )
