Steering shift switch removal note
WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.
- Pull out the steering shift switch from the steering wheel until the steering shift switch connector is visible.

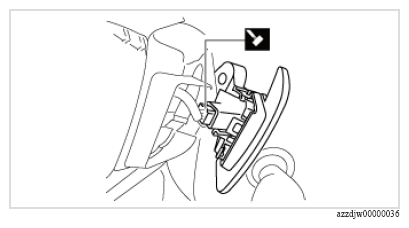

- The figure shows the right side (same as left side).
 Courtesy of MAZDA MOTORS CORP.
|
- Disconnect the steering shift switch connector.
- Remove the steering shift switch.
