Blower Unit Disassembly/Assembly
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
- Disassemble in the order indicated in the table.BLOWER UNIT COMPONENT OPERATION

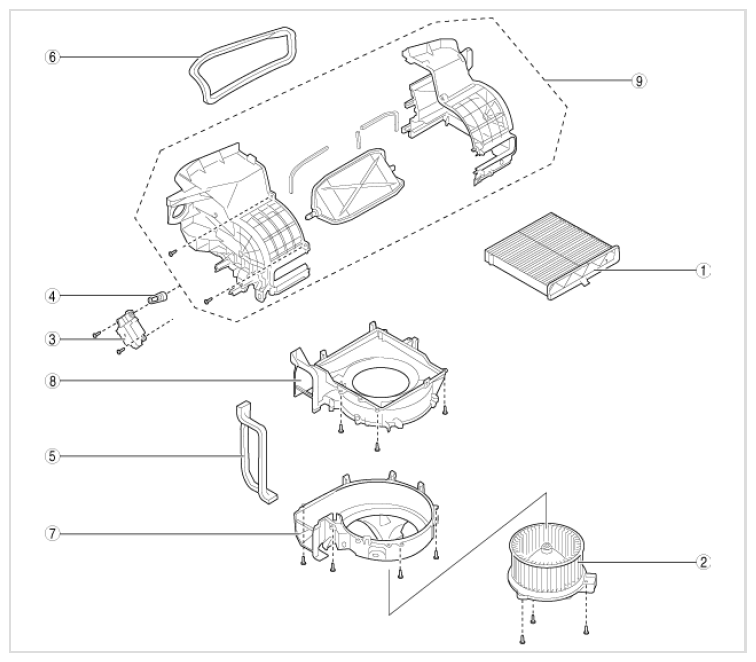

Component no Refer to 1 Air filter 2 Blower motor 3 Air intake actuator 4 Air intake link 5 Polyurethane (1) 6 Polyurethane (2) 7 Blower case (2) 8 Blower case (1) 9 Blower case assembly - Assemble in the reverse order of disassembly.
