Refrigerant Charging: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not use a different type of refrigerant or charge beyond the specified level. Otherwise, cooling ability will be lowered and the A/C compressor could be damaged.

NOTE:

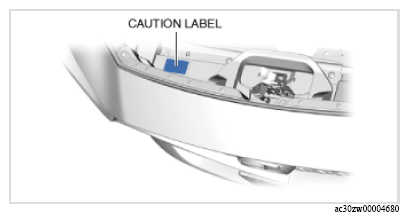

When draining or adding the refrigerant, verify the appropriate refrigerant type and specified amount of refrigerant from the caution label.

Courtesy of MAZDA MOTORS CORP.

Refrigerant type	Regular amount of refrigerant (approx. quantity) (g {OZ})
HFO-1234yf (R-1234yf)	455-505 {16.1-17.8}
