Condenser Removal/Installation: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
4. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
6. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
9. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
10. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
Remove the bolts.

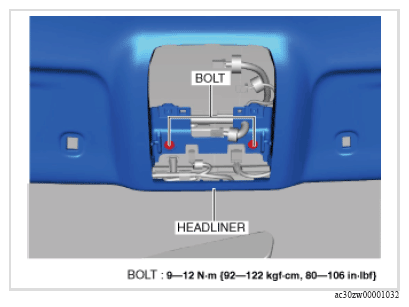

Fig 1: Headliner Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

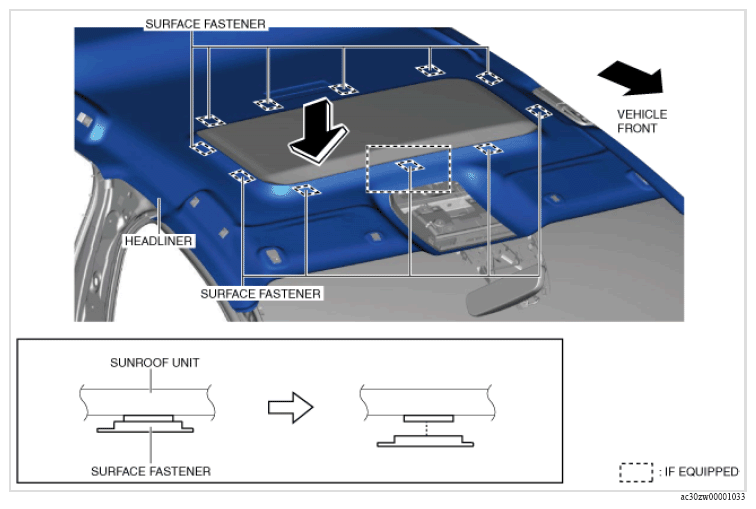

Move the headliner in the direction of the arrows shown in the figure and detach the surface fasteners from the sunroof unit. (with sunroof system)

Courtesy of MAZDA MOTORS CORP.

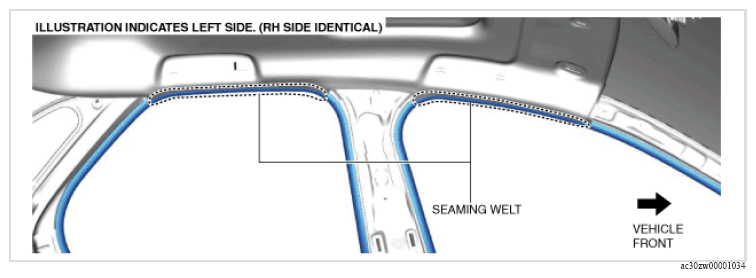

Partially peel back the seaming welts.

Courtesy of MAZDA MOTORS CORP.

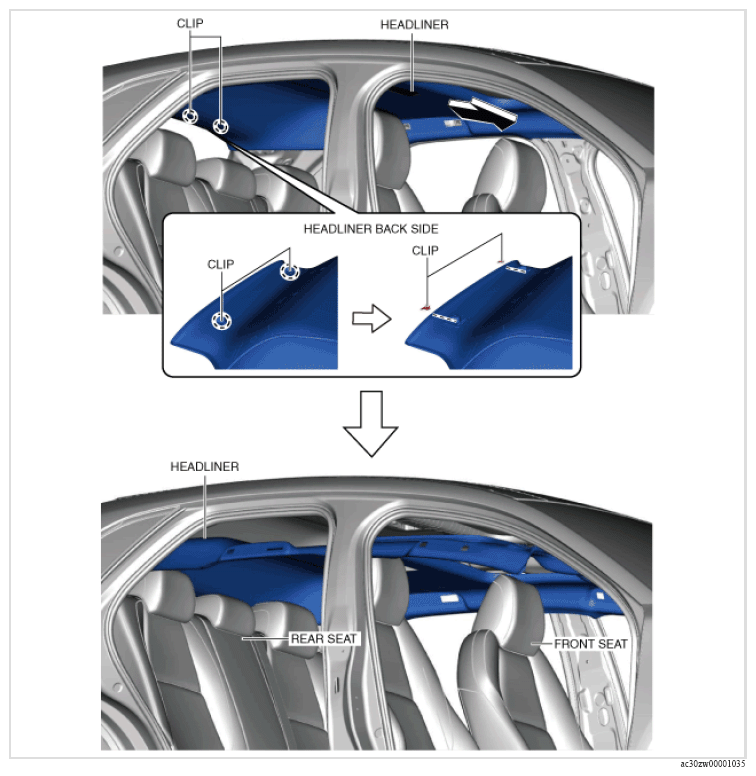

Slide the headliner in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Set the headliner on front seats and rear seats.
Disconnect the connectors.

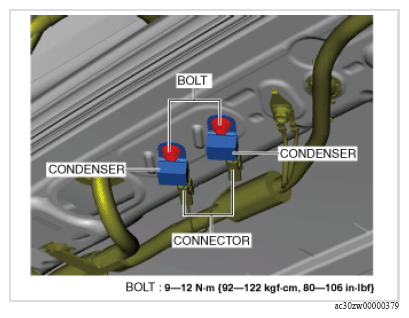

Fig 2: Condenser Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Remove the condenser.
Install in the reverse order of removal. (See HEADLINER INSTALLATION NOTE .)
