Bolt Installation Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bolts in the order of (1), (2) and (3).

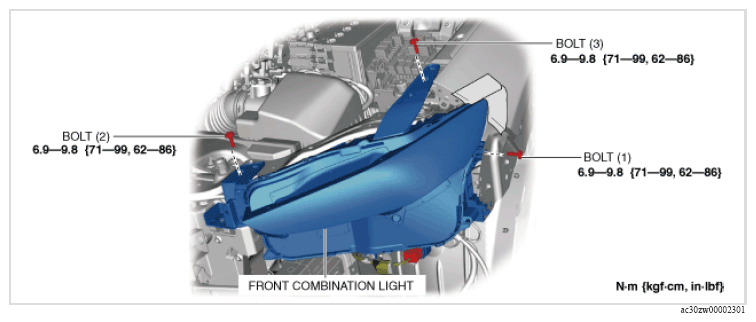

Fig 1: Front Combination Light Bracket Bolts Tightening Sequence With Torque Specification
G16377030Courtesy of MAZDA MOTORS CORP.
