Component Locations
NOTE:
Refer to WIRING DIAGRAMS
for circuit identification.
COMPONENT LOCATION
| Component | Location |
|---|---|

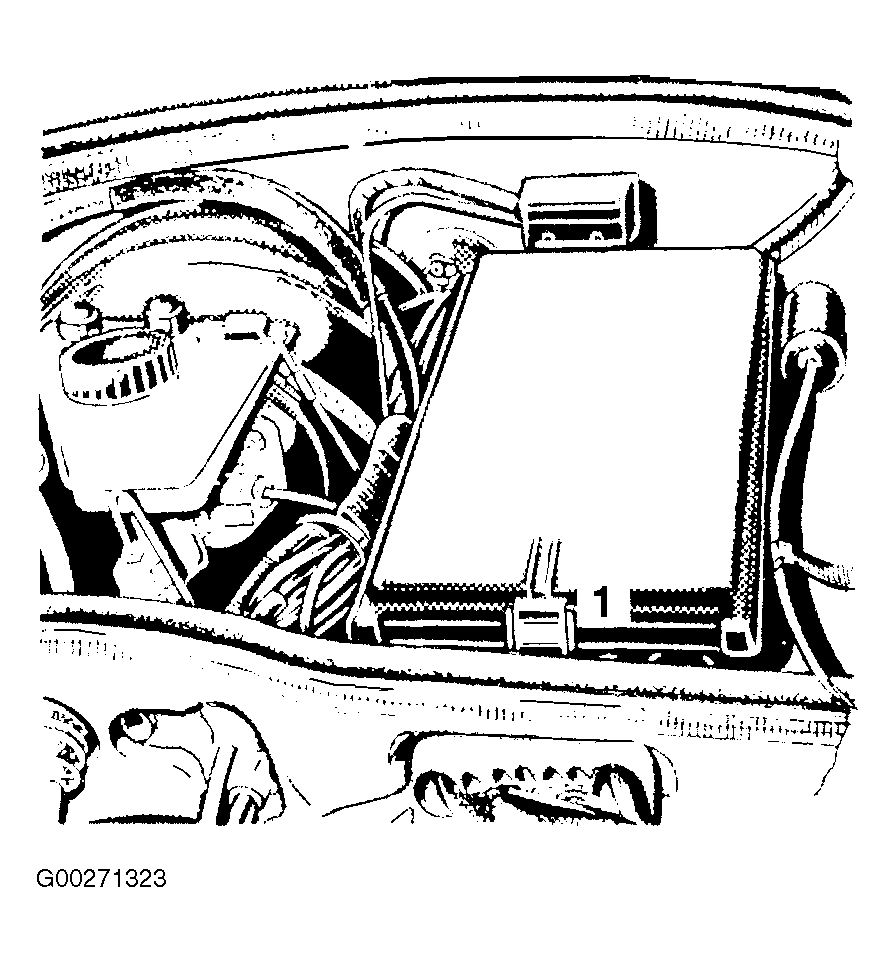

| Fuses/Relay Box | Left Side In Component Compartment |
| Power Window Motors | One Inside Each Door |
| Power Window Relay | Left Side In Component Compartment |

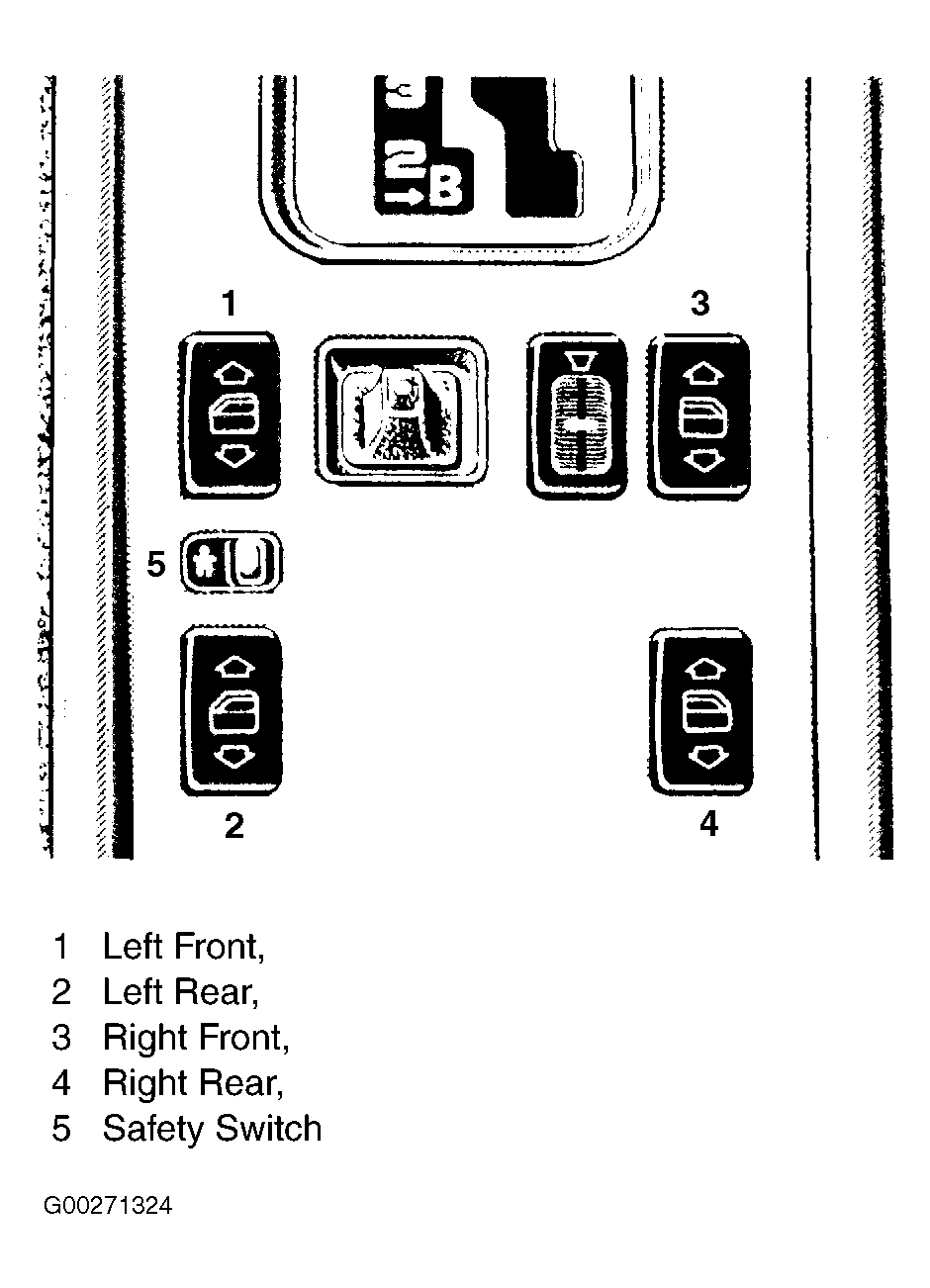

| Power Window Switches | Center Console & Appropriate Rear Door |
| Rear Window Safety Switch | Center Console |
