3.5L Fault Code Diagnostic Tests

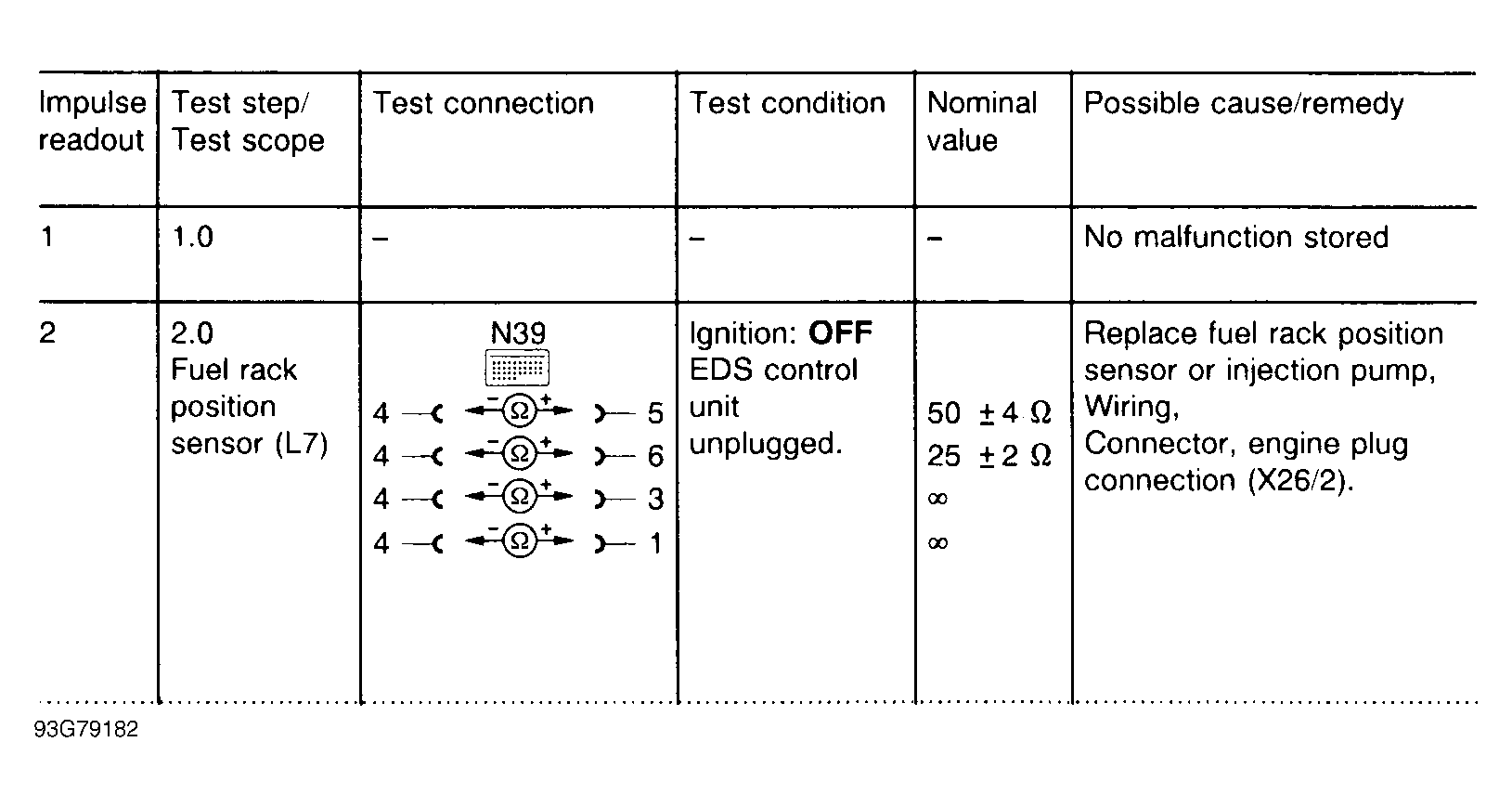

Fig 1: 3.5L Fault Code Diagnosis (1 of 9)

G93G79182

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

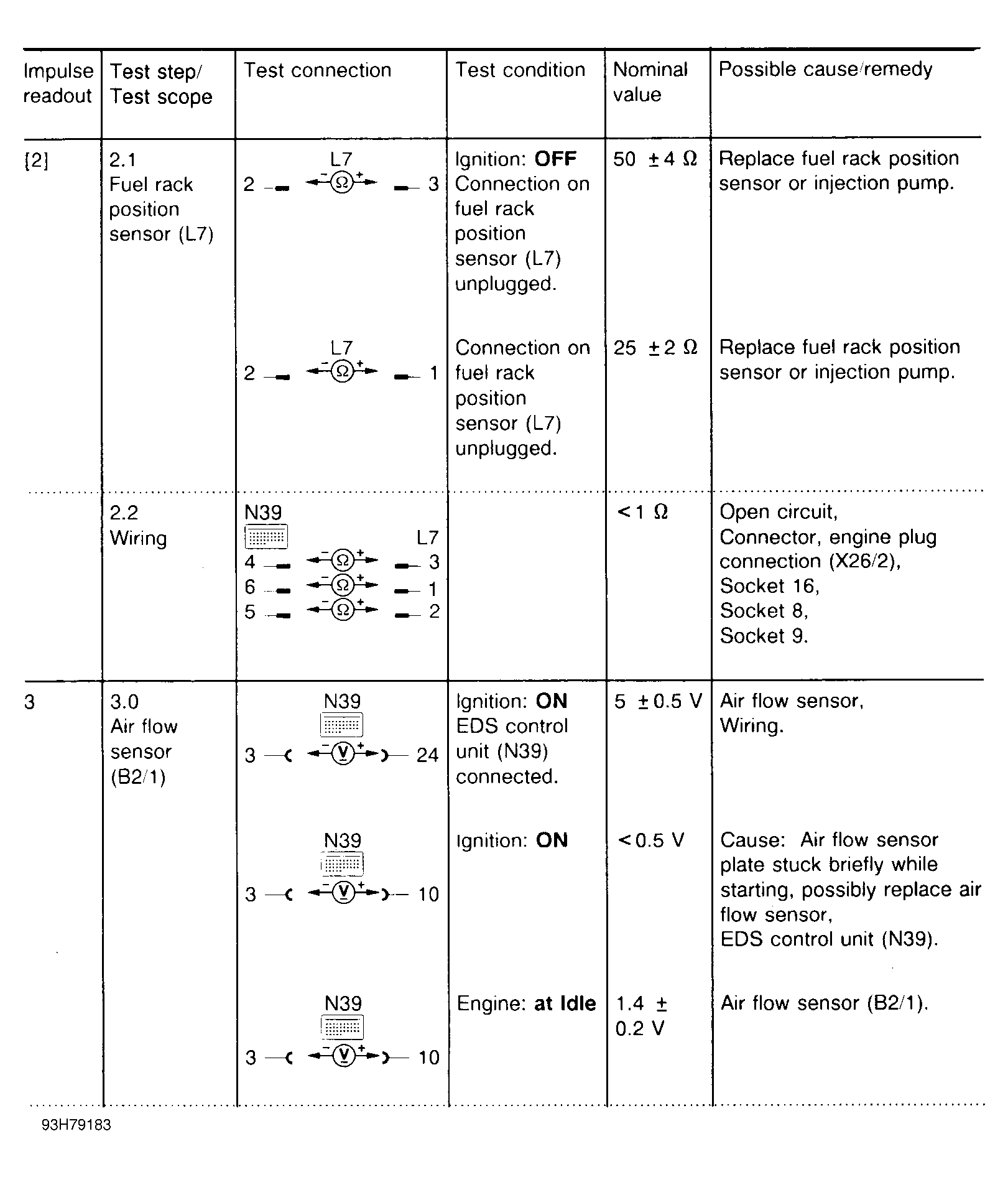

Fig 2: 3.5L Fault Code Diagnosis (2 of 9)

G93H79183

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

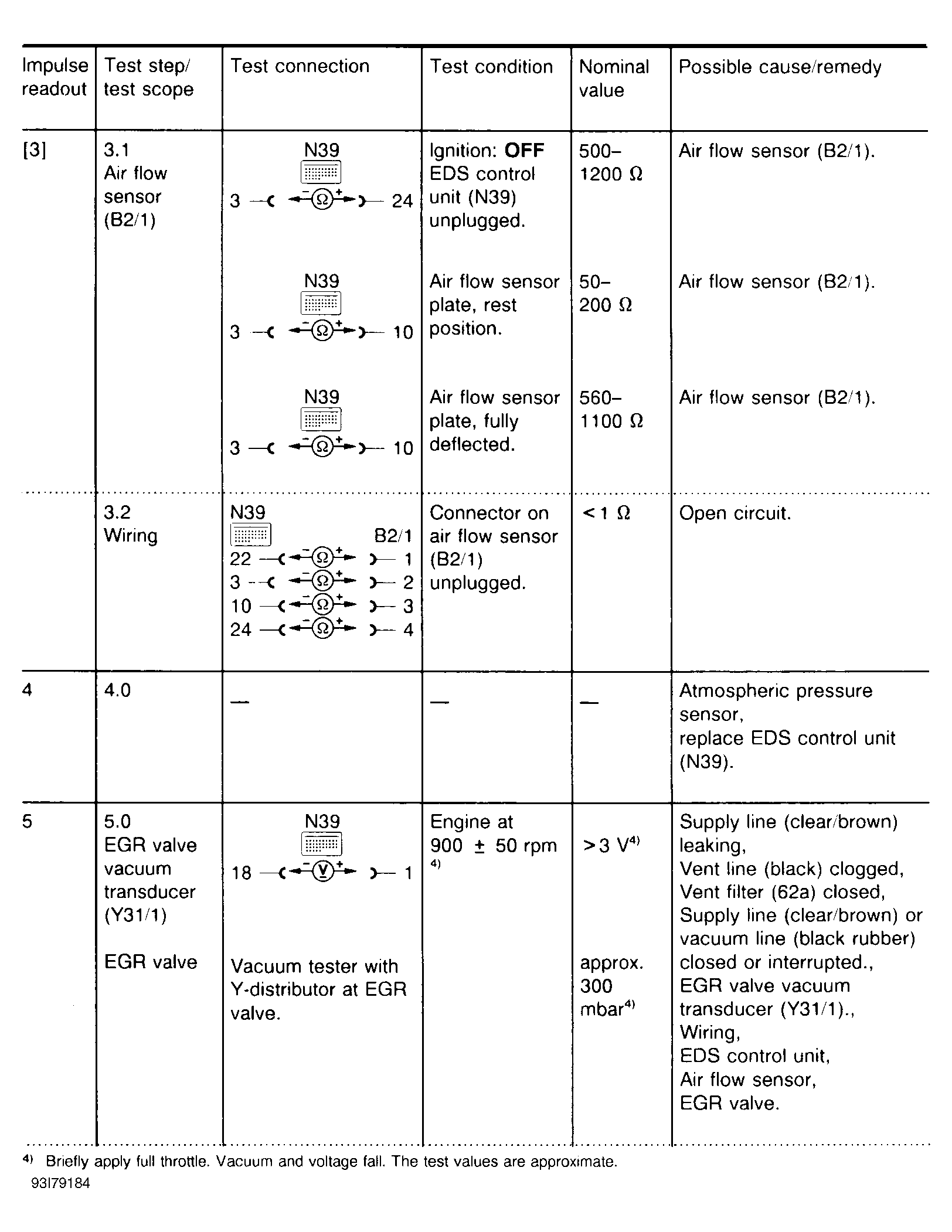

Fig 3: 3.5L Fault Code Diagnosis (3 of 9)

G93I79184

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

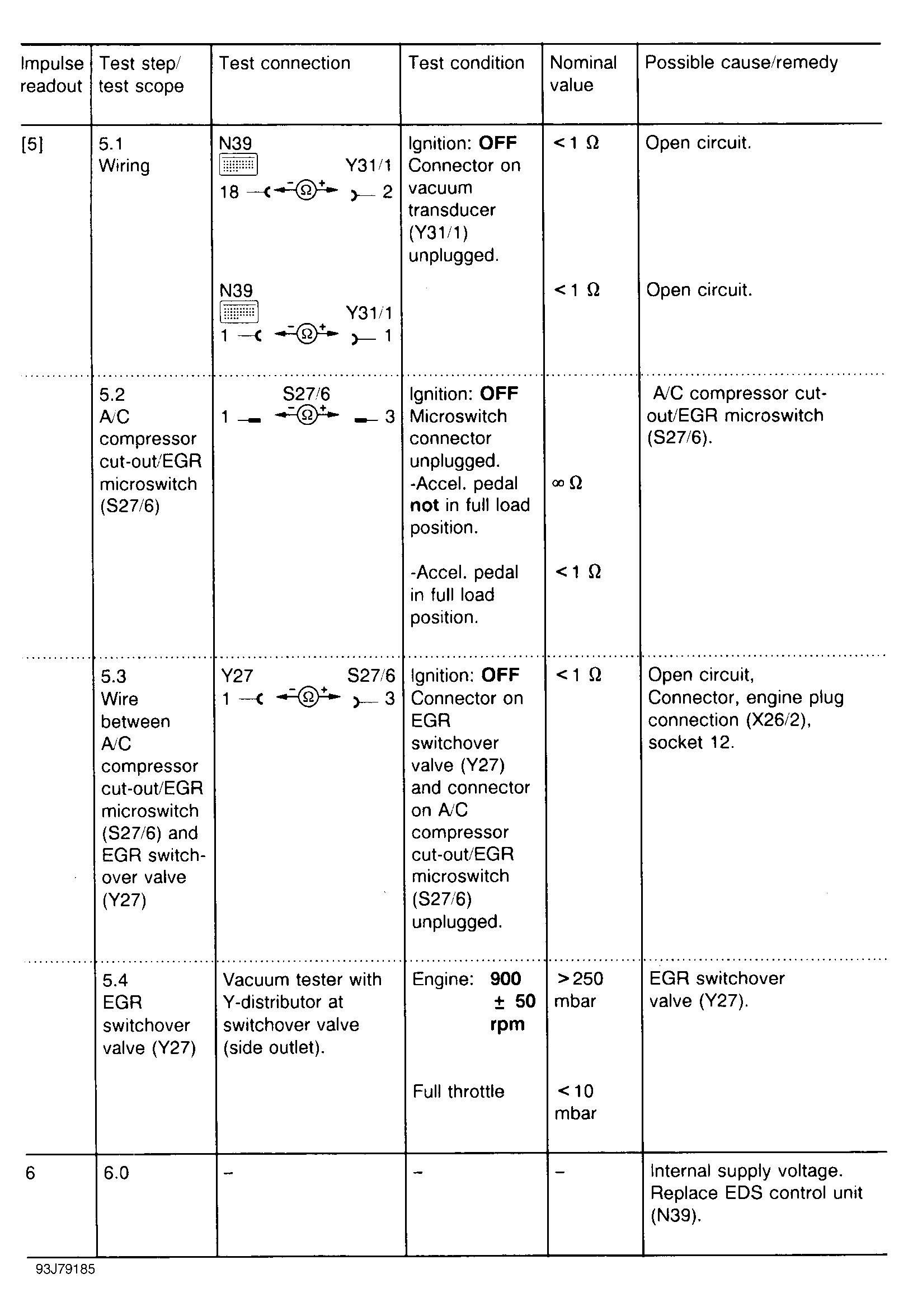

Fig 4: 3.5L Fault Code Diagnosis (4 of 9)

G93J79185

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

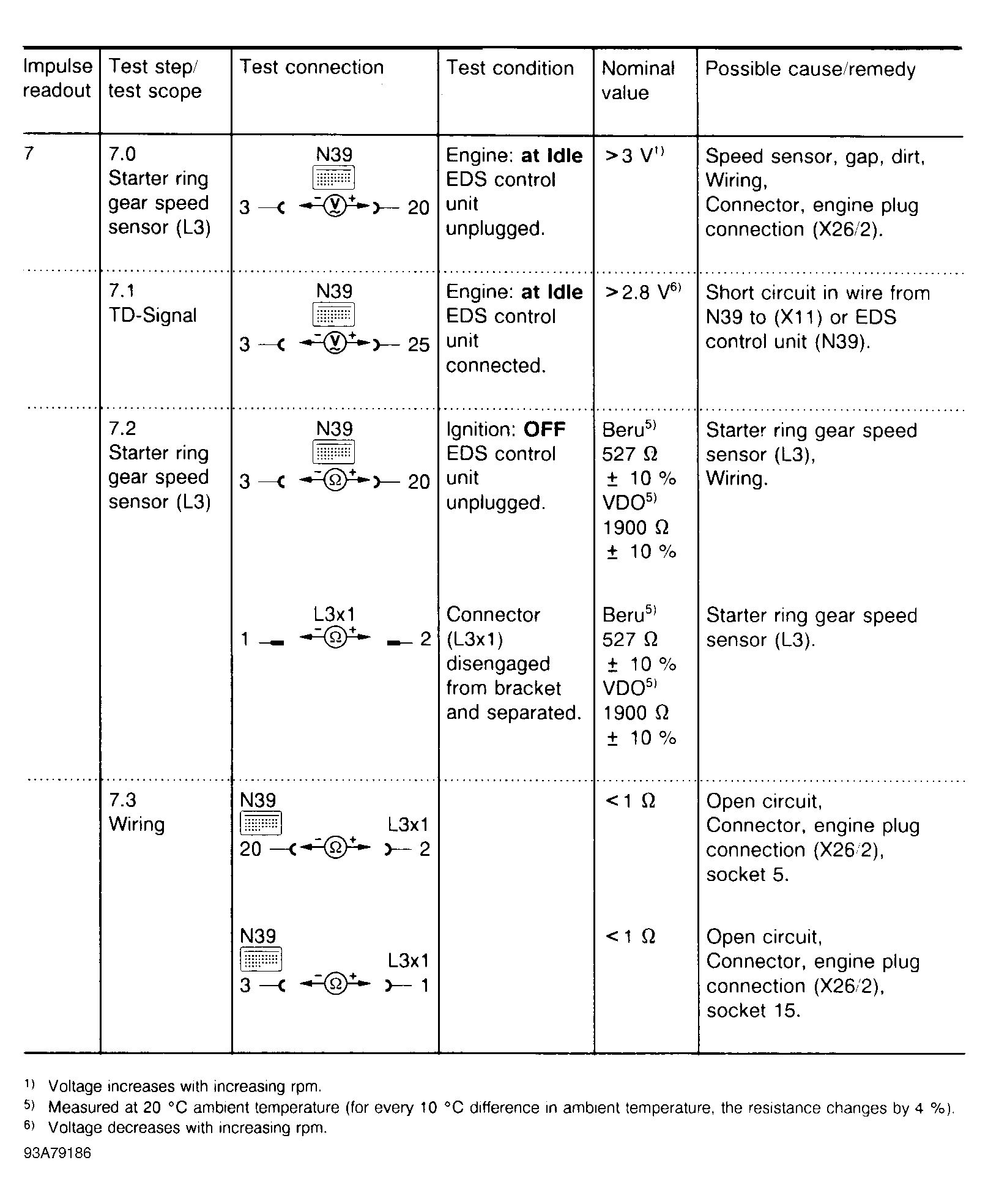

Fig 5: 3.5L Fault Code Diagnosis (5 of 9)

G93A79186

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

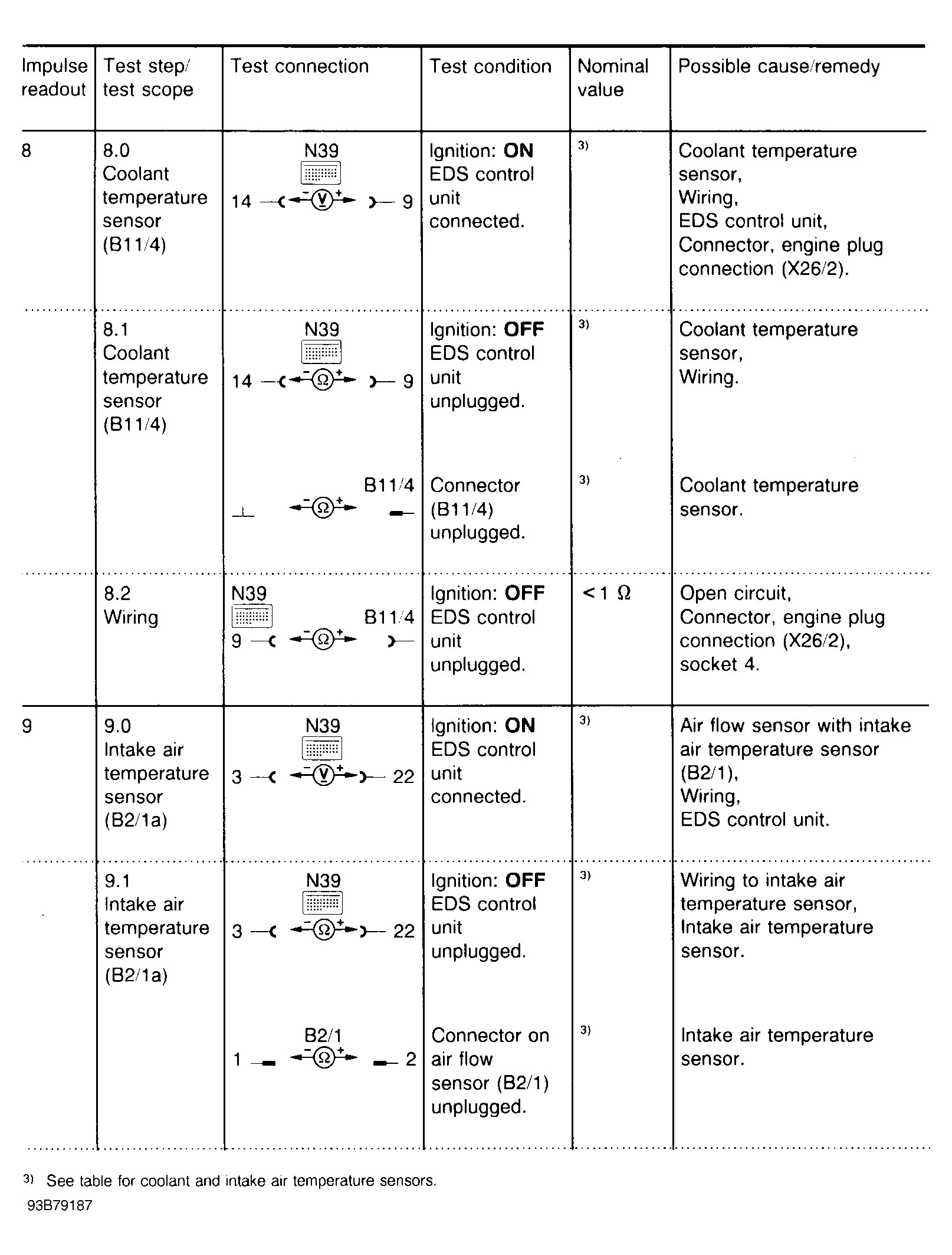

Fig 6: 3.5L Fault Code Diagnosis (6 of 9)

G93B79187

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

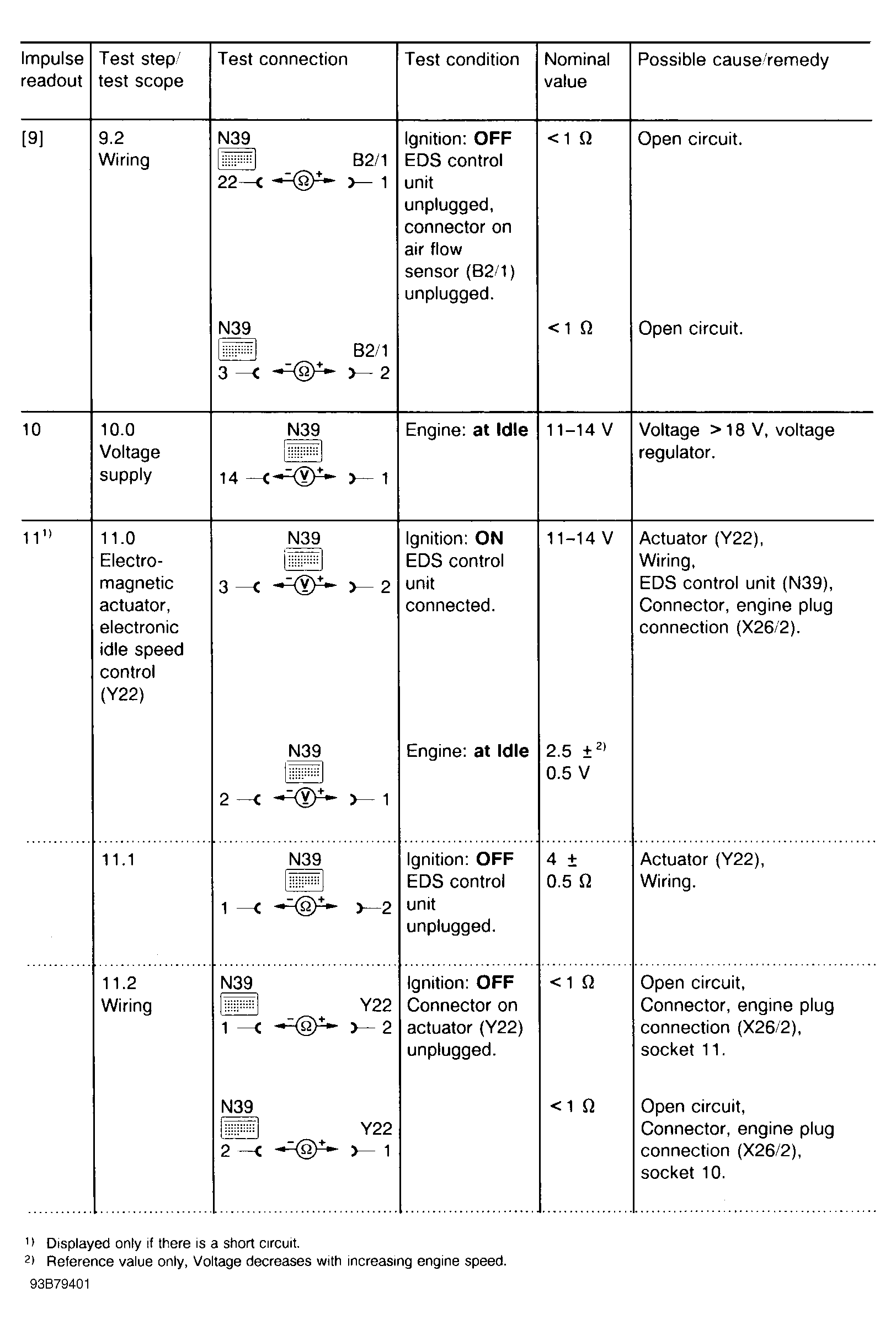

Fig 7: 3.5L Fault Code Diagnosis (7 of 9)

G93B79401

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

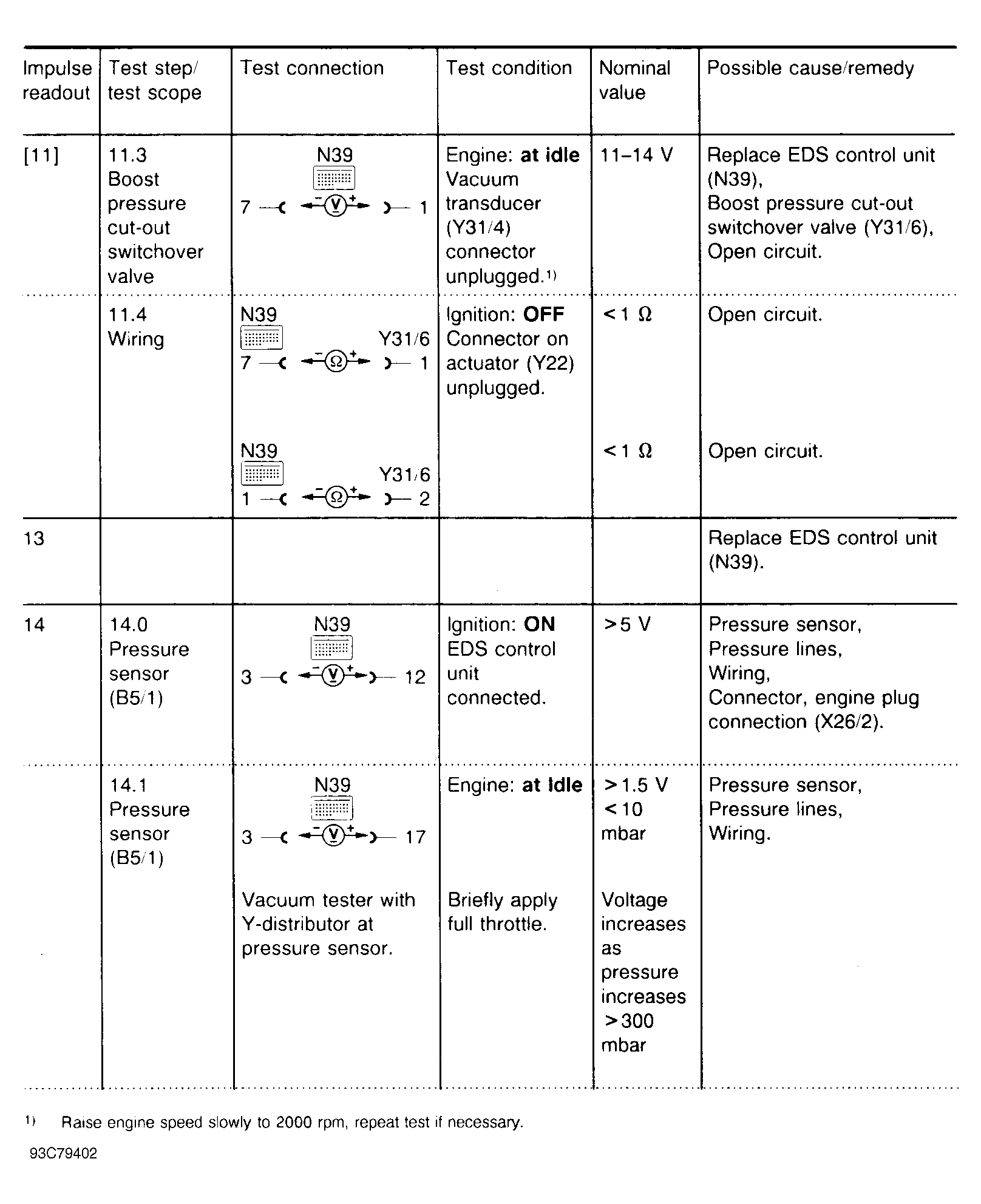

Fig 8: 3.5L Fault Code Diagnosis (8 of 9)

G93C79402

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

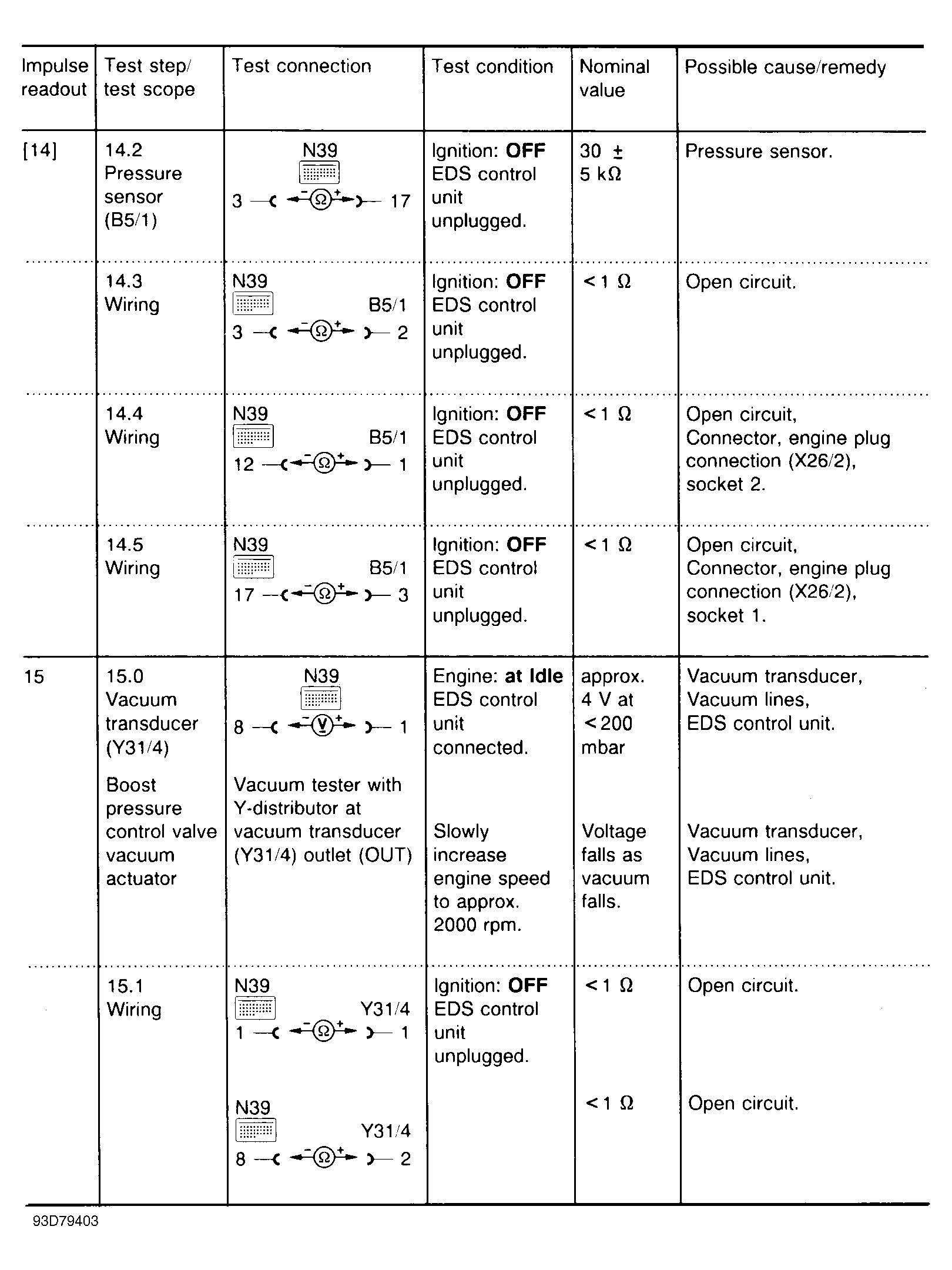

Fig 9: 3.5L Fault Code Diagnosis (9 of 9)

G93D79403

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
