Control Pressure Cable

Remove air cleaner. Loosen 2 nuts on connecting rod. Turn connecting rod until tips of needles align. See Fig 1 . Tighten 2 nuts on connecting rod. Install air cleaner.

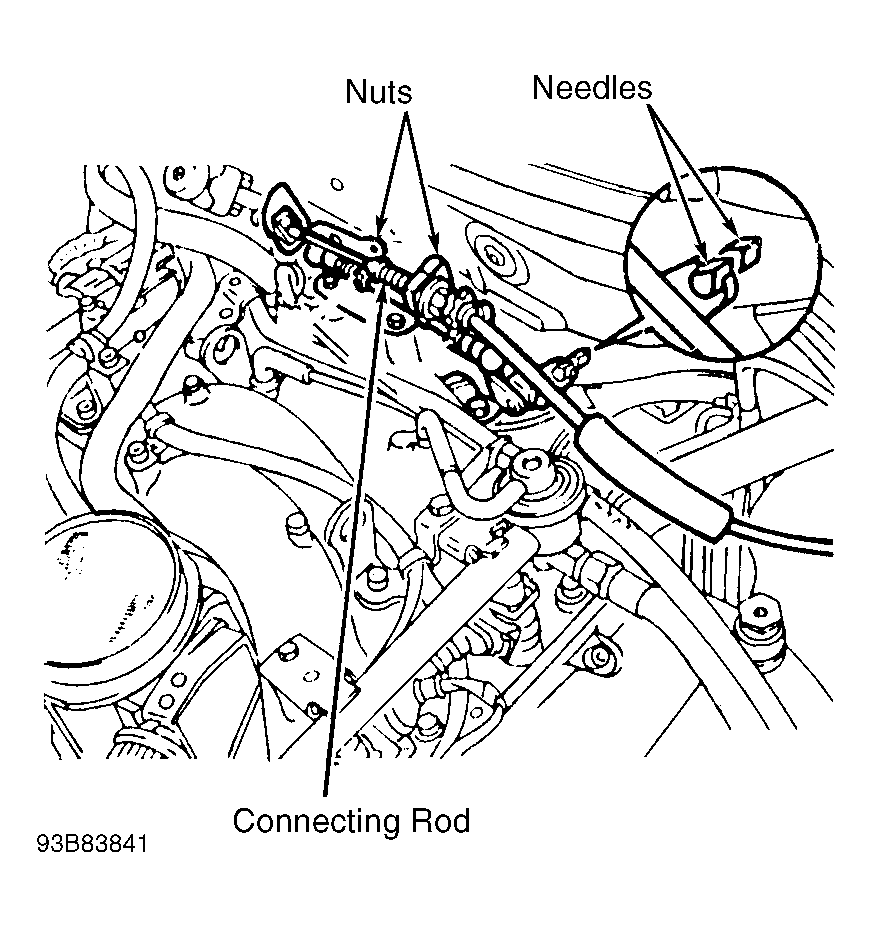

Fig 1: Aligning Needles (V8 Engines)
G93B83841Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
