CHECK-ENGINE malfunction indicator lamp location/task/function - GF07.13-P-3144H

ENGINE 104.942 in MODEL 124.028 with CODE (491) U.S. version

ENGINE 104.992 in MODEL 124.032 /052 /066 /092 with CODE (491) U.S. version

ENGINE 104.991 in MODEL 129.063 with CODE (491) U.S. version

ENGINE 104.994 in MODEL 140.032 /033 with CODE (491) U.S. version

ENGINE 111.961 in MODEL 202.022 with CODE (491) U.S. version

ENGINE 111.974 in MODEL 202.023 with CODE (491) U.S. version

ENGINE 104.941 in MODEL 202.028 with CODE (491) U.S. version

ENGINE 606.912 in MODEL 210.020 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025 with CODE (491) U.S. version

ENGINE 104.995 in MODEL 210.055 with CODE (491) U.S. version

Instrument cluster

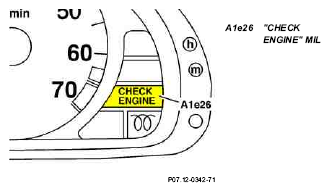

Fig 1: Identifying CHECK-ENGINE Malfunction Indicator Lamp Location - Instrument Cluster

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Instrument cluster with multifunction display

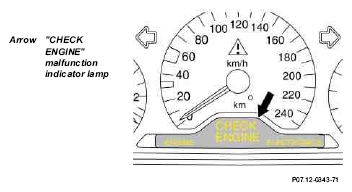

Fig 2: Identifying CHECK-ENGINE Malfunction Indicator Lamp Location - Instrument Cluster With Multifunction Display

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	CHECK ENGINE malfunction indicator lamp location	In the instrument cluster
	CHECK ENGINE malfunction indicator lamp task	Indicates faults in the injection system
	CHECK ENGINE malfunction indicator lamp function	The "CHECK ENGINE" malfunction indicator lamp (A1e26) is controlled by the diagnostic module or the engine control module at the ground side. To check the function of the incandescent lamp, the lamp is lit on ignition ON and for 1 second above an engine speed of approx. 500 rpm. If no fault is detected, the diagnostic module or the engine control module breaks the ground connection to the "CHECK ENGINE" MIL (A1e26) and the lamp extinguishes.
