Idle Speed Control (ISC) System Tests (Section 25)
NOTE:
For aid using diagnostic charts, see
USING DIAGNOSTIC CHARTS
.

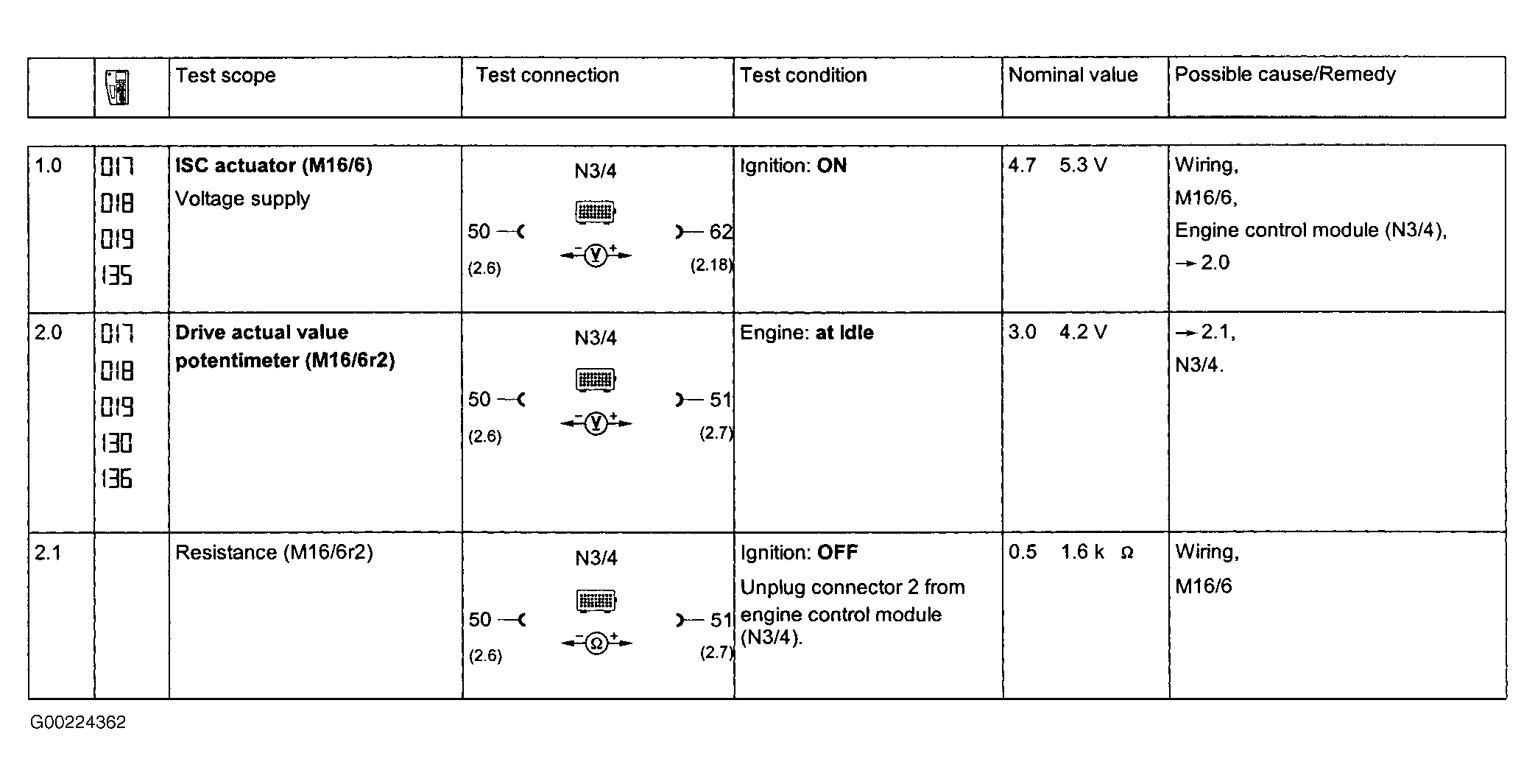

Fig 1: Idle Speed Control (ISC) Tests - Section 25 (Steps 1.0-2.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

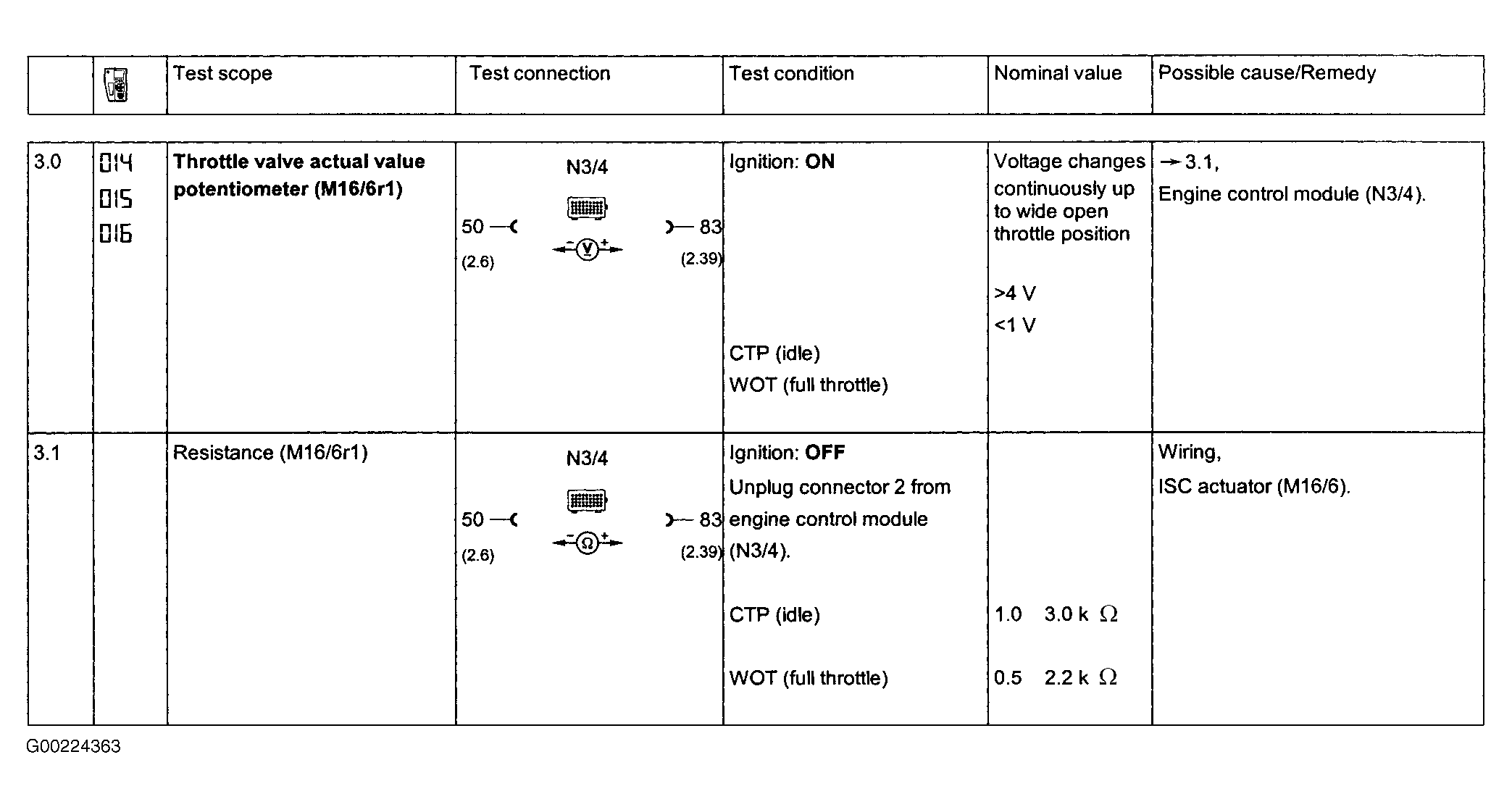

Fig 2: Idle Speed Control (ISC) Tests - Section 25 (Steps 3.0-3.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

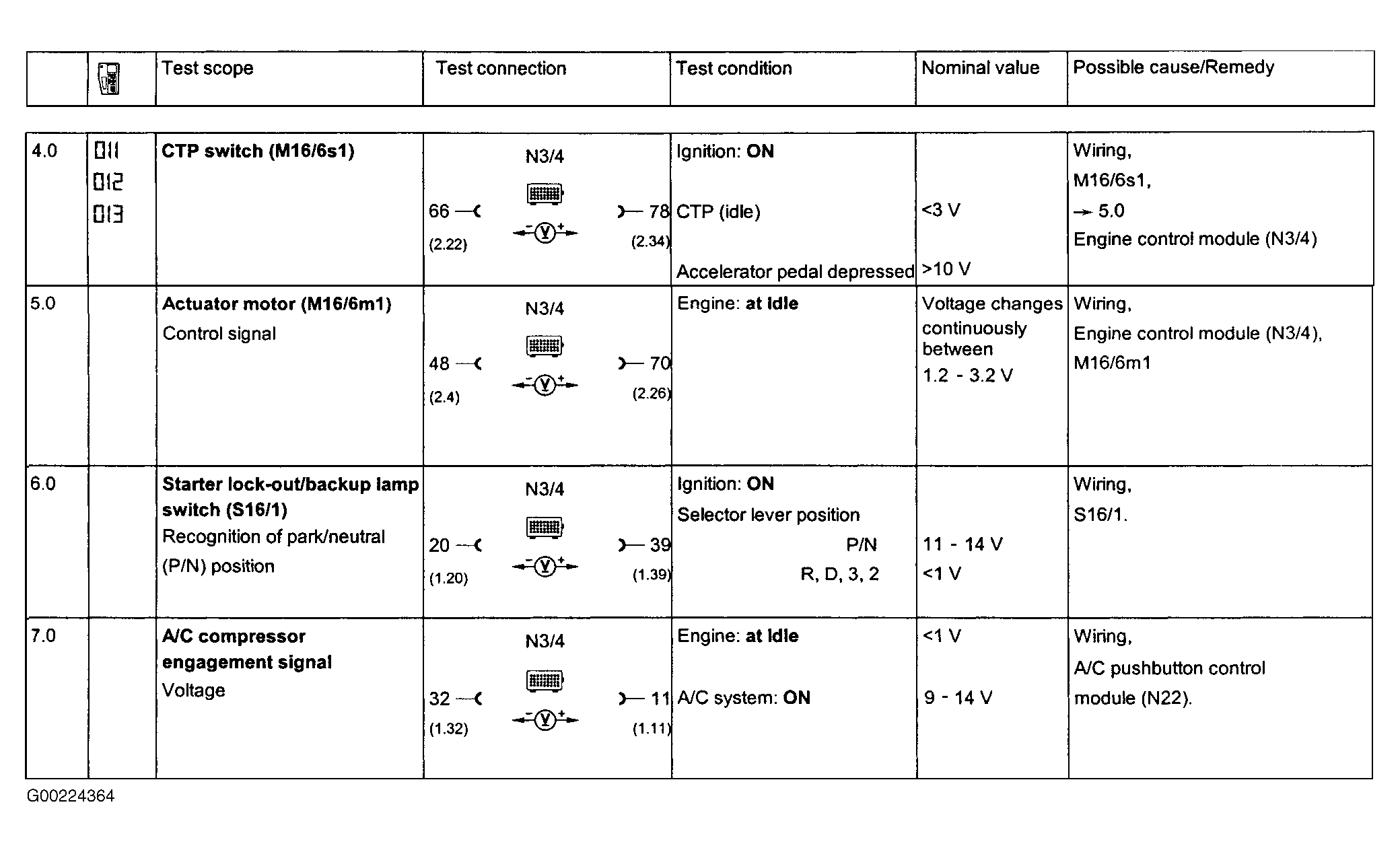

Fig 3: Idle Speed Control (ISC) Tests - Section 25 (Steps 4.0-7.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

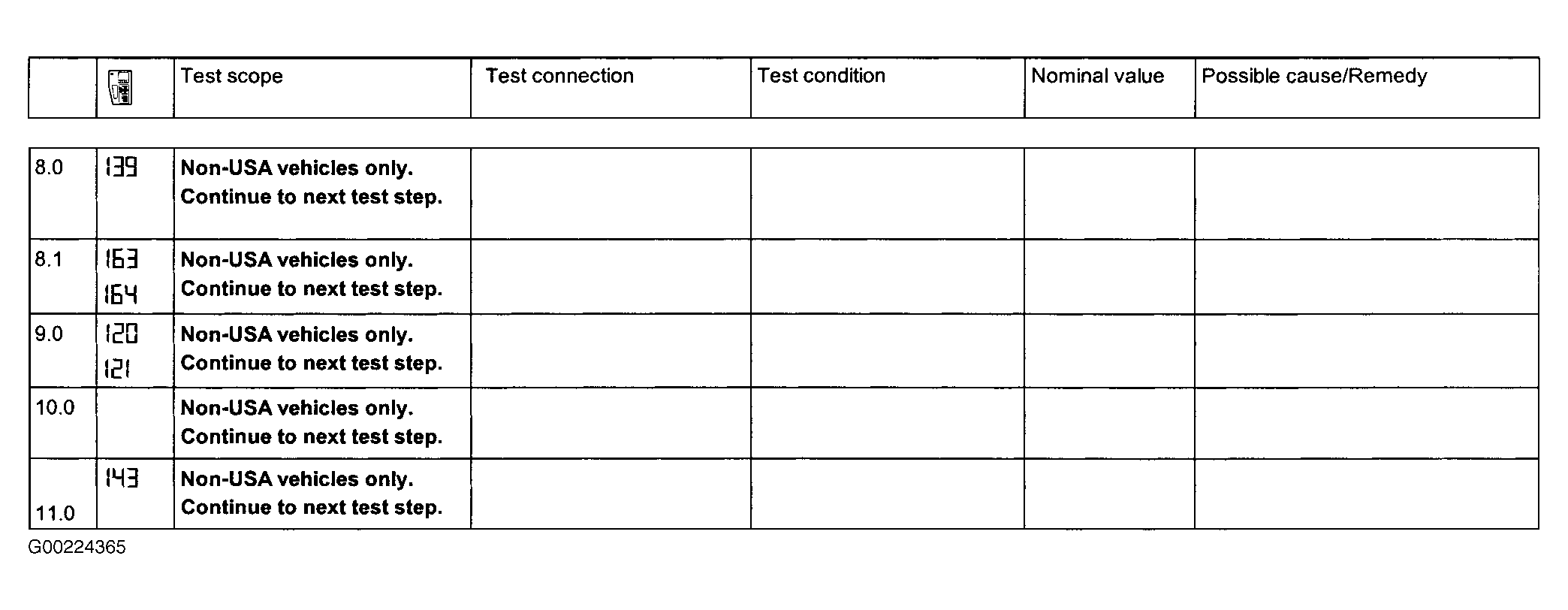

Fig 4: Idle Speed Control (ISC) Tests - Section 25 (Steps 8.0-11.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
