System Tests

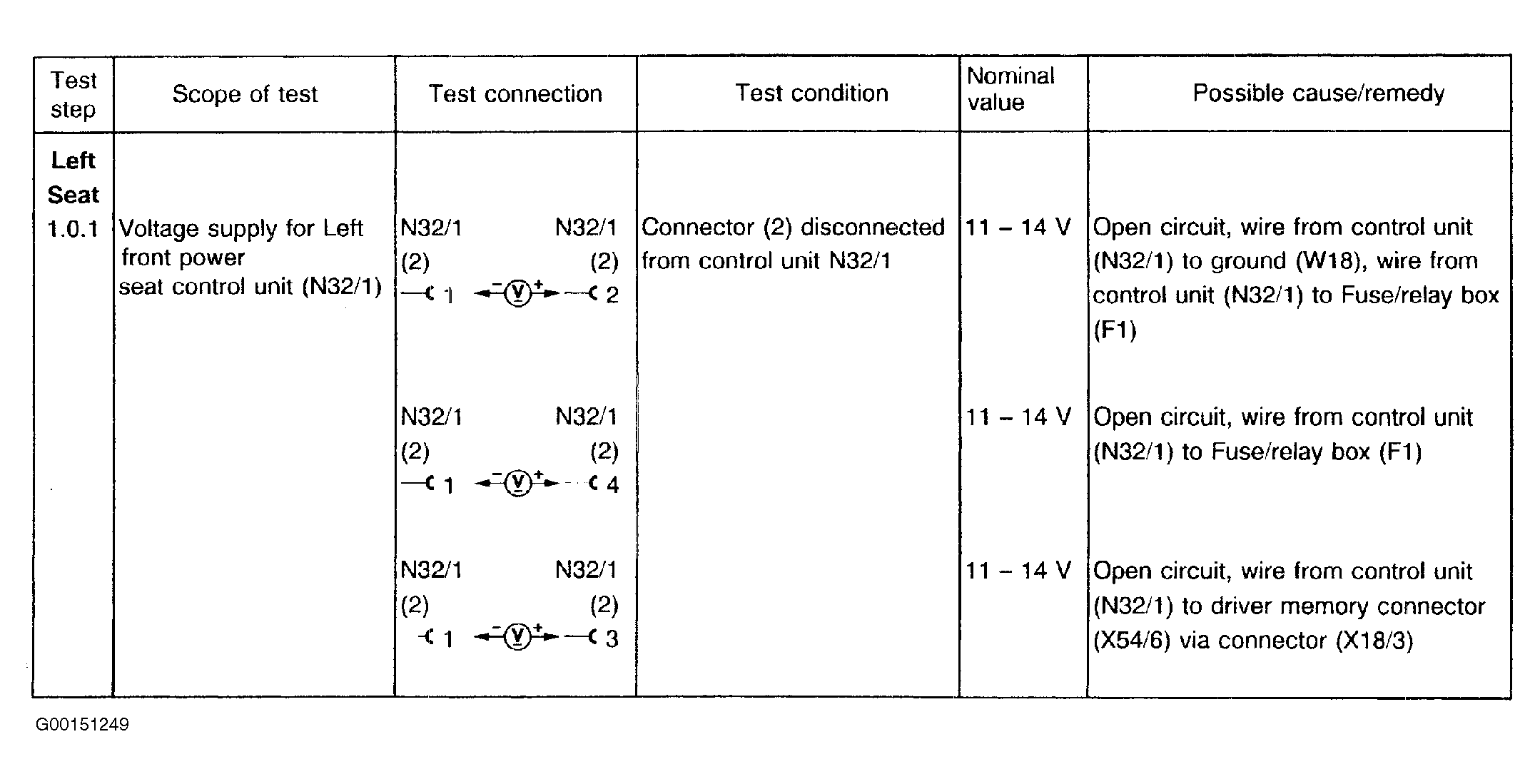

Fig 1: Test Step 1.0.1

G00151249

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

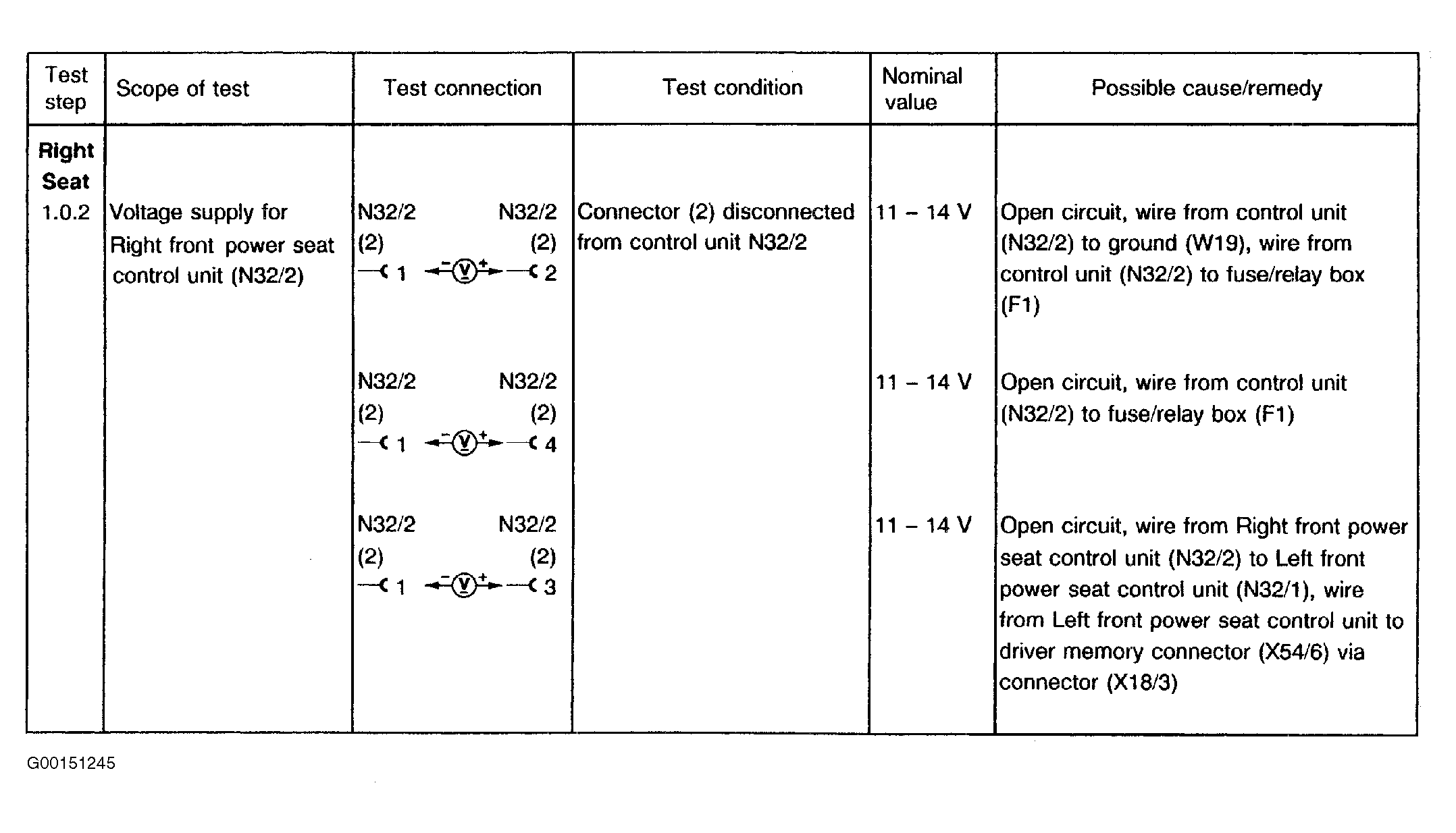

Fig 2: Test Step 1.0.2

G00151245

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

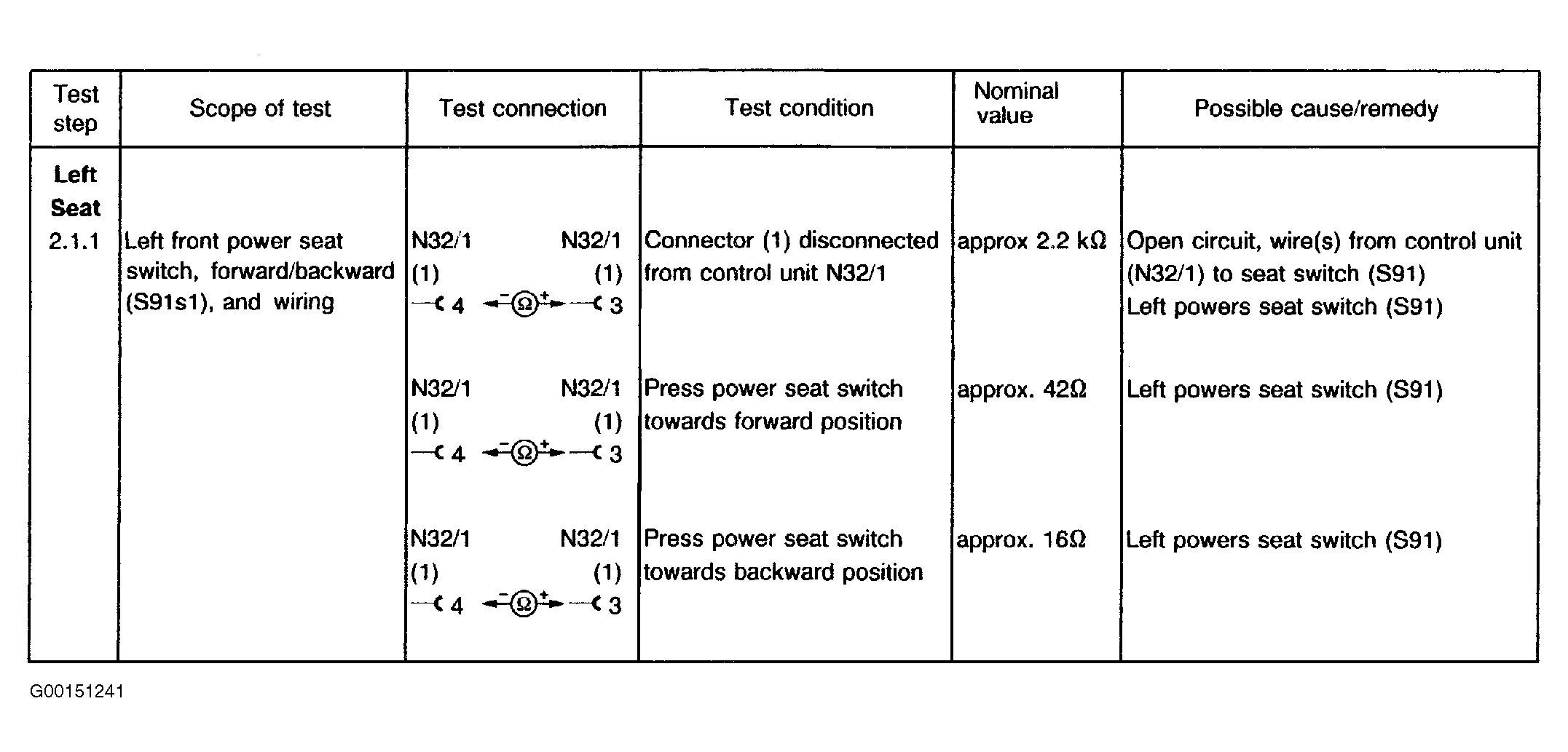

Fig 3: Test Step 2.1.1

G00151241

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

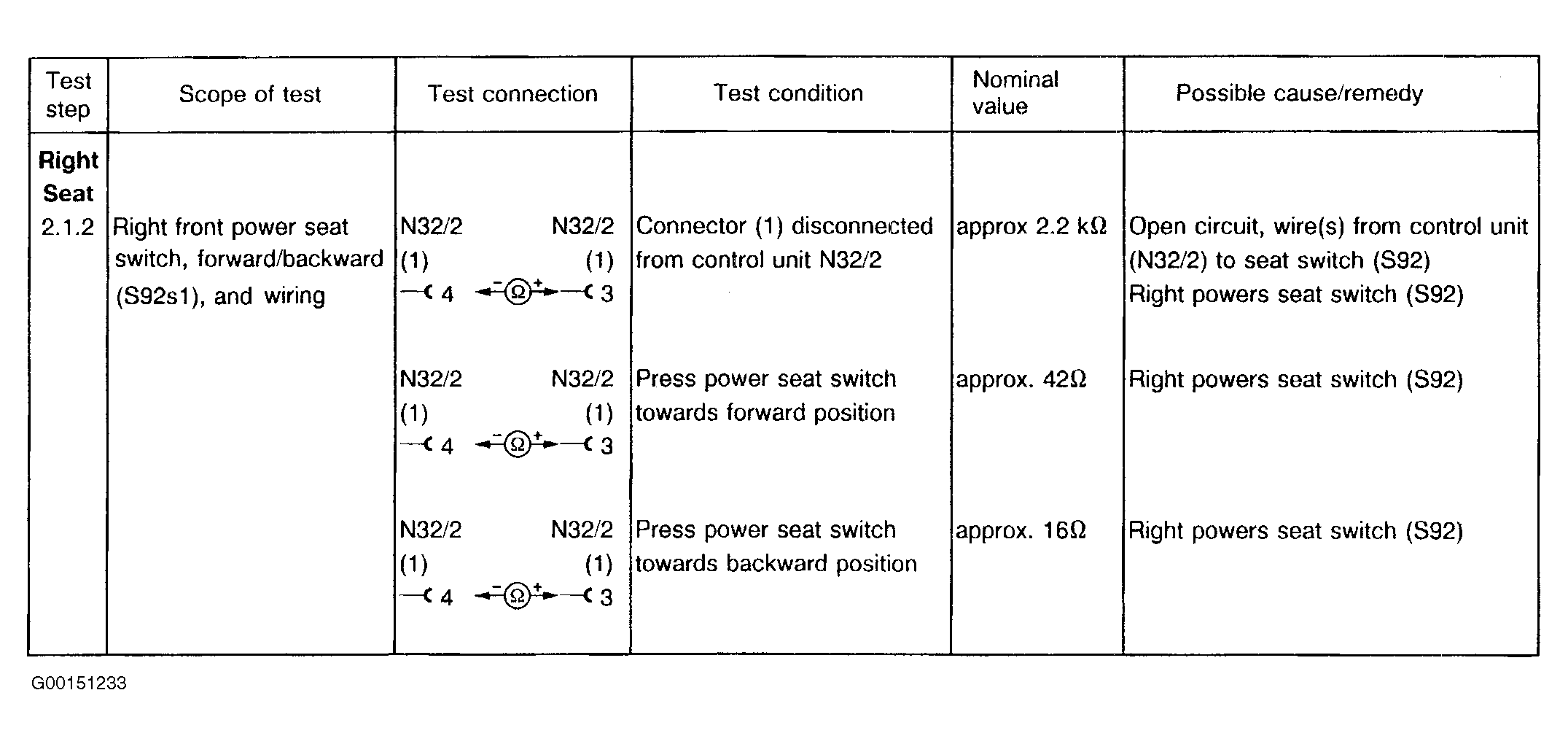

Fig 4: Test Step 2.1.2

G00151233

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

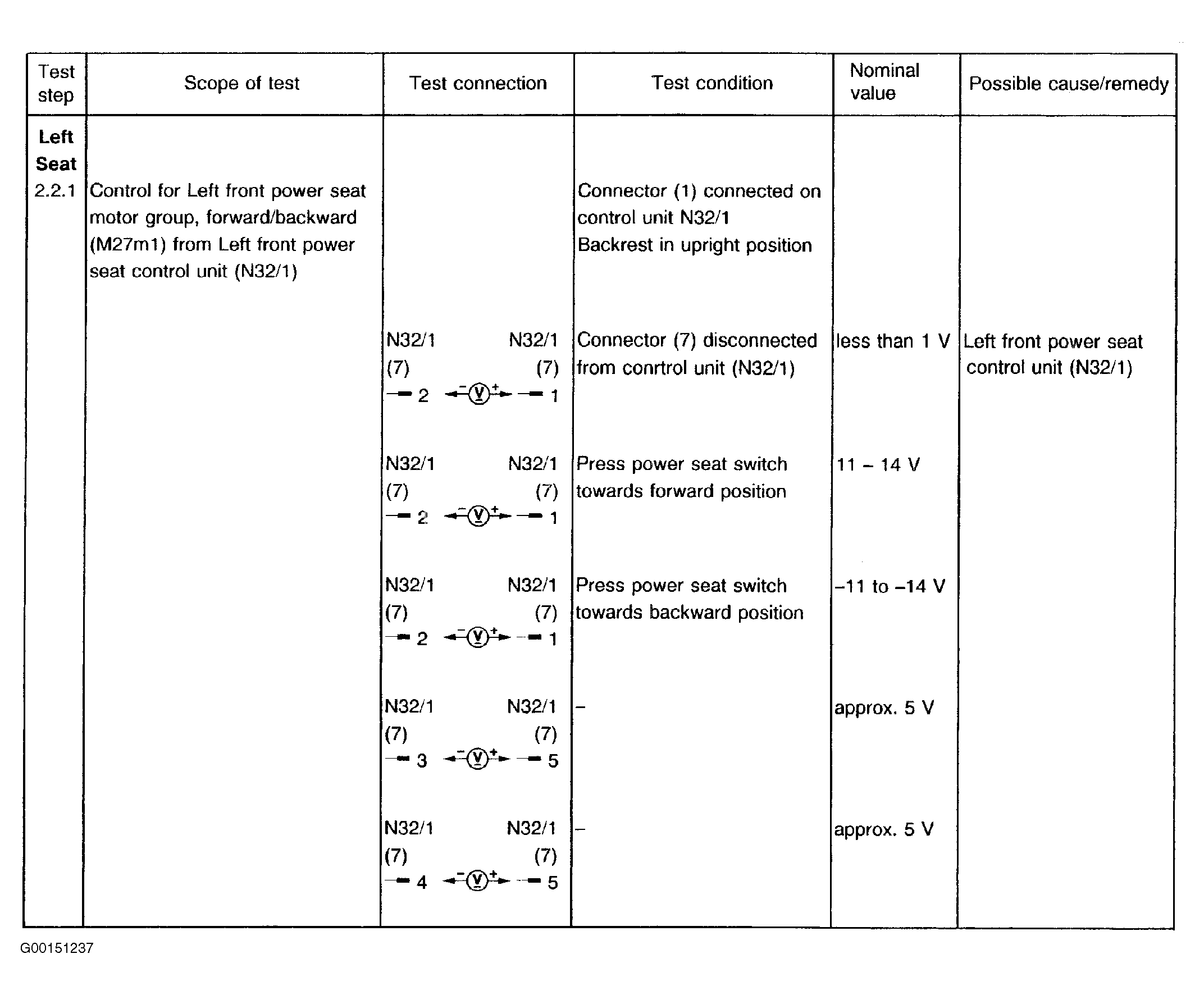

Fig 5: Test Step 2.2.1

G00151237

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

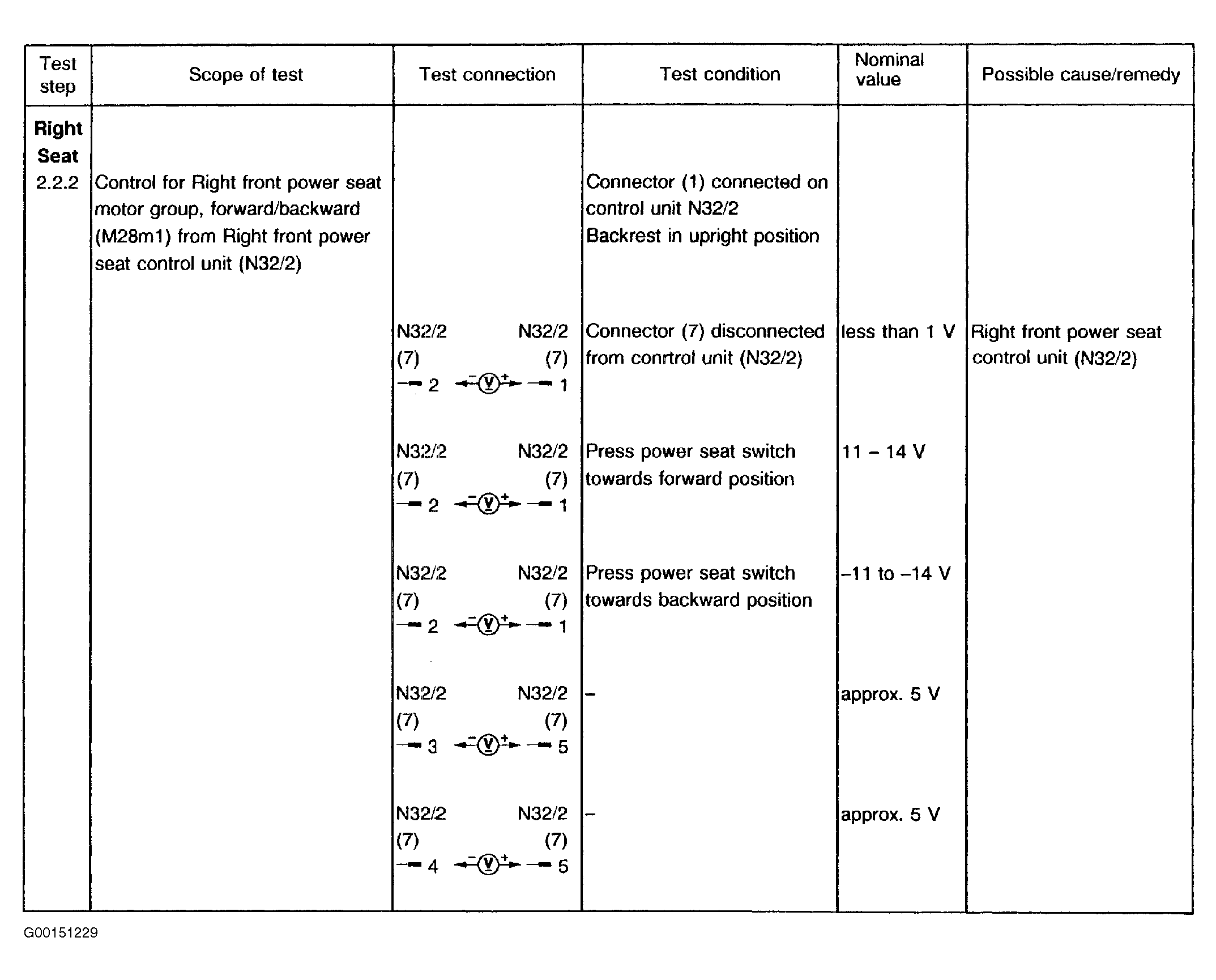

Fig 6: Test Step 2.2.2

G00151229

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

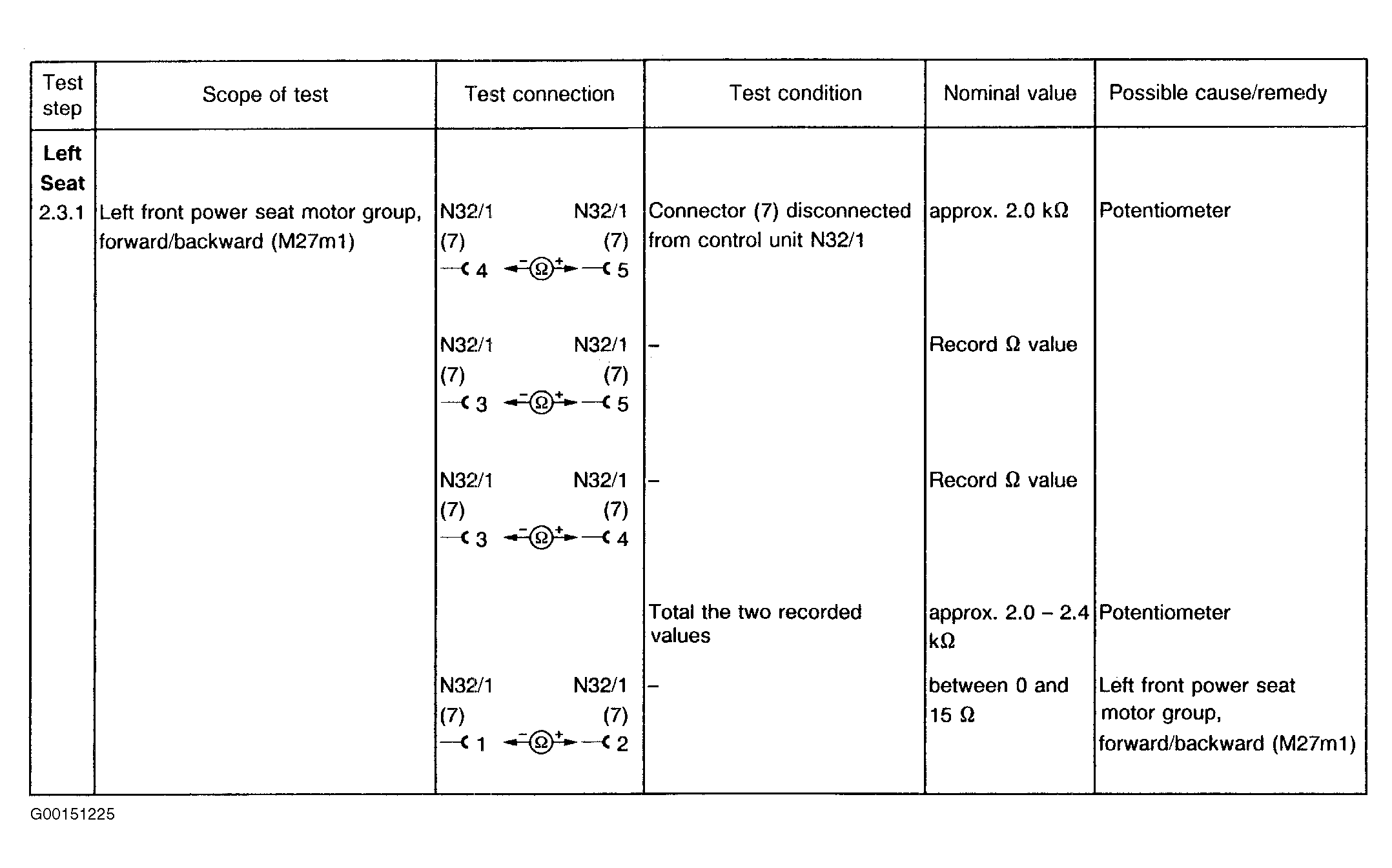

Fig 7: Test Step 2.3.1

G00151225

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

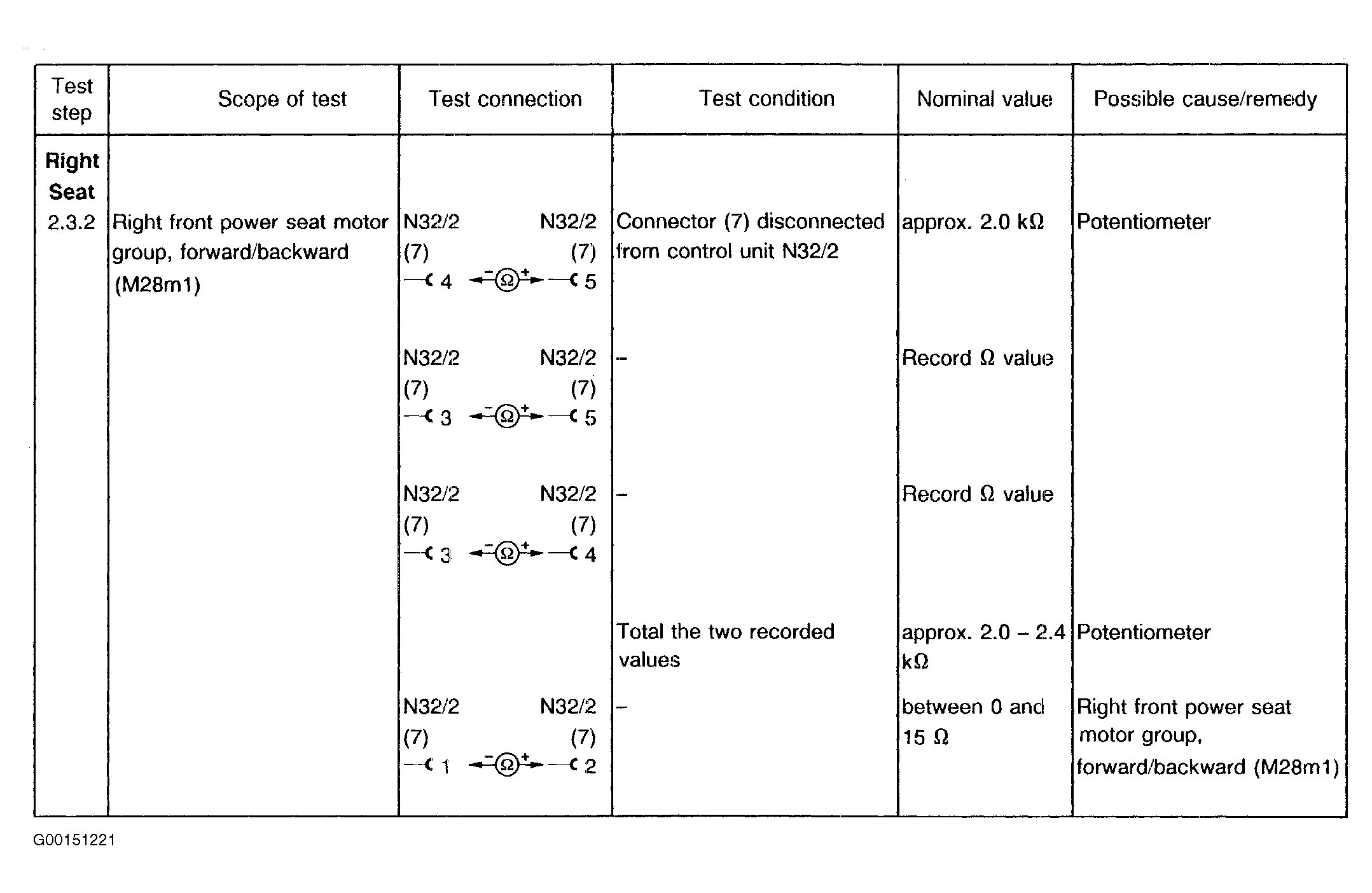

Fig 8: Test Step 2.3.2

G00151221

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

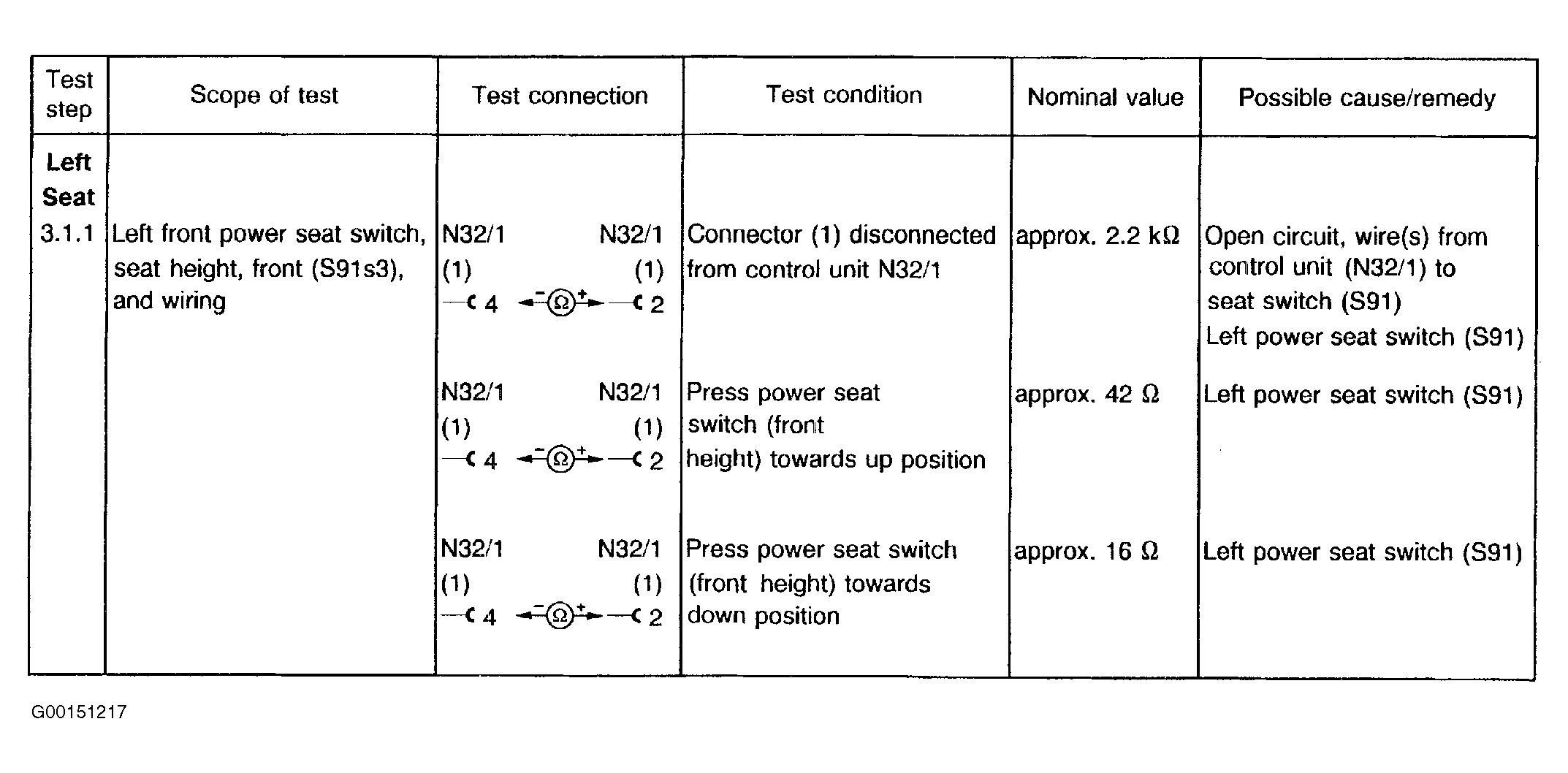

Fig 9: Test Step 3.1.1

G00151217

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

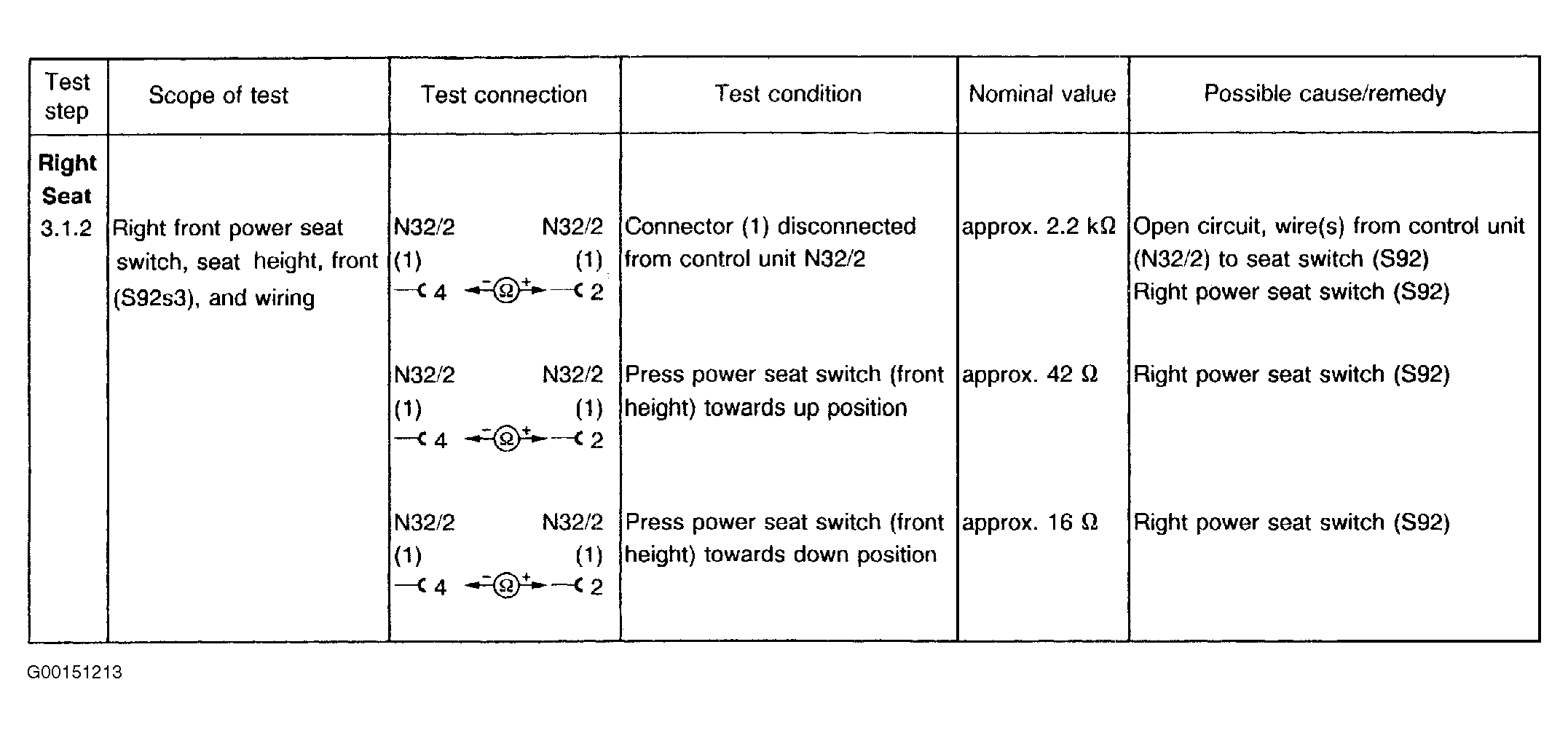

Fig 10: Test Step 3.1.2

G00151213

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

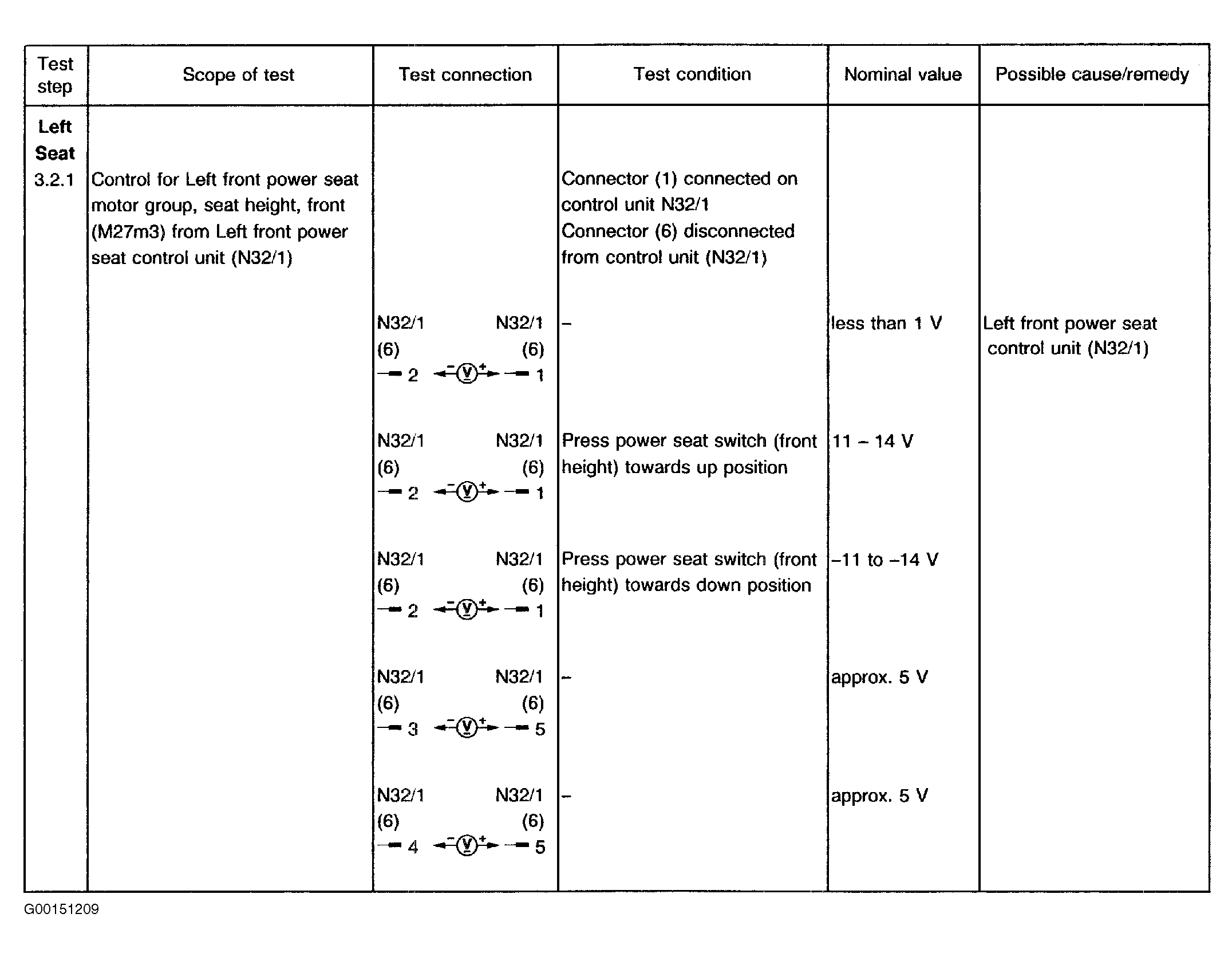

Fig 11: Test Step 3.2.1

G00151209

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Test Step 3.2.2

G00151205

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

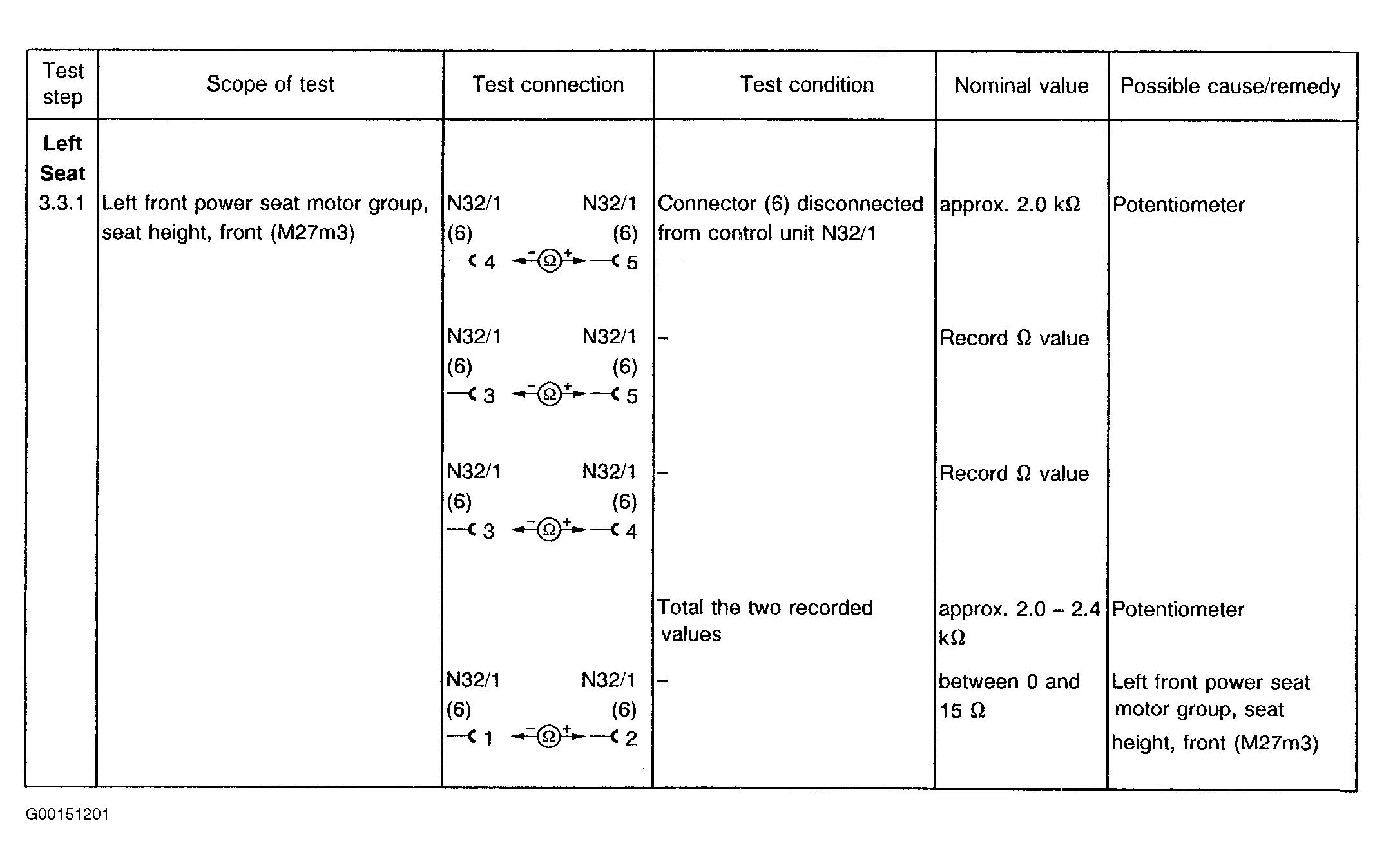

Fig 13: Test Step 3.3.1

G00151201

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Test Step 3.3.2

G00151197

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

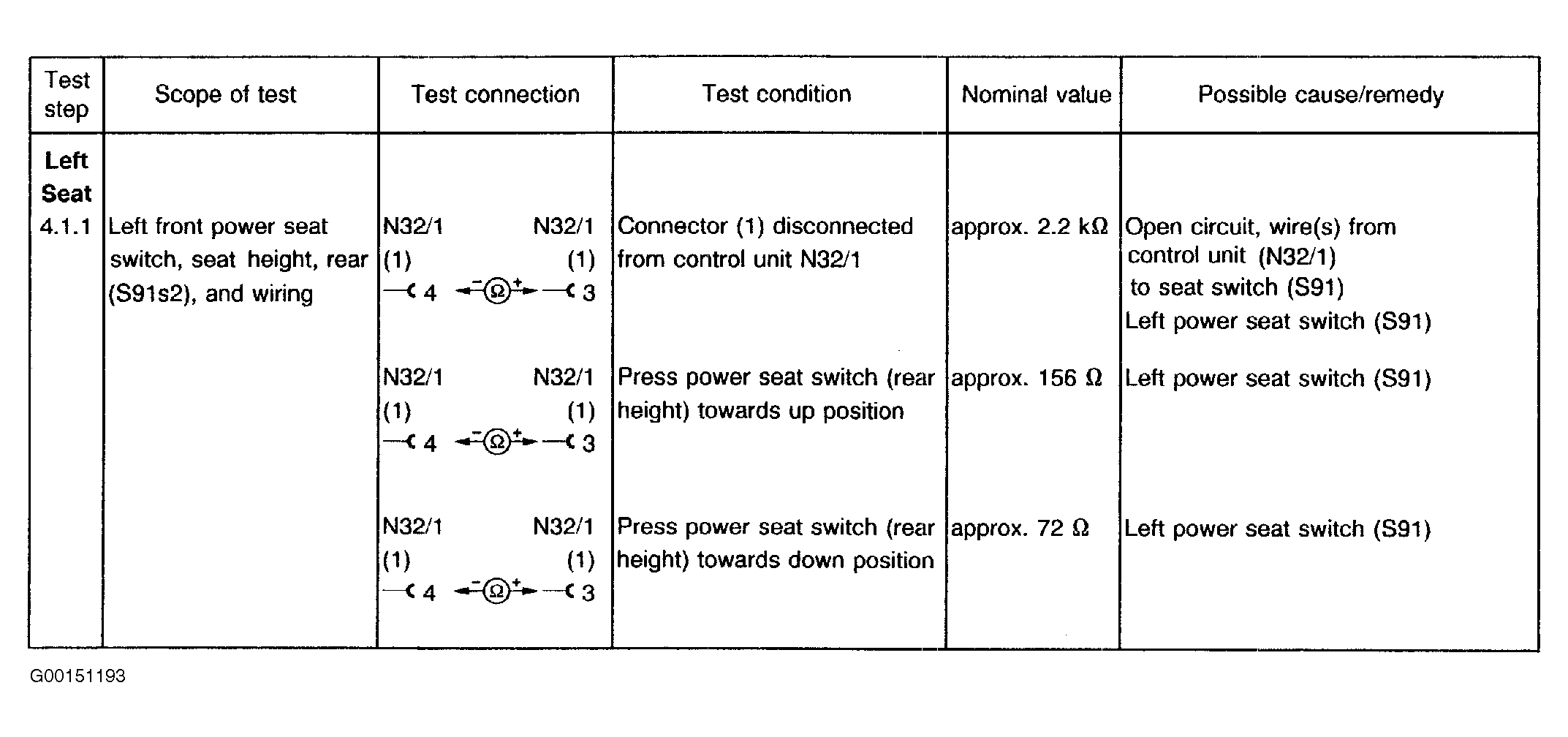

Fig 15: Test Step 4.1.1

G00151193

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

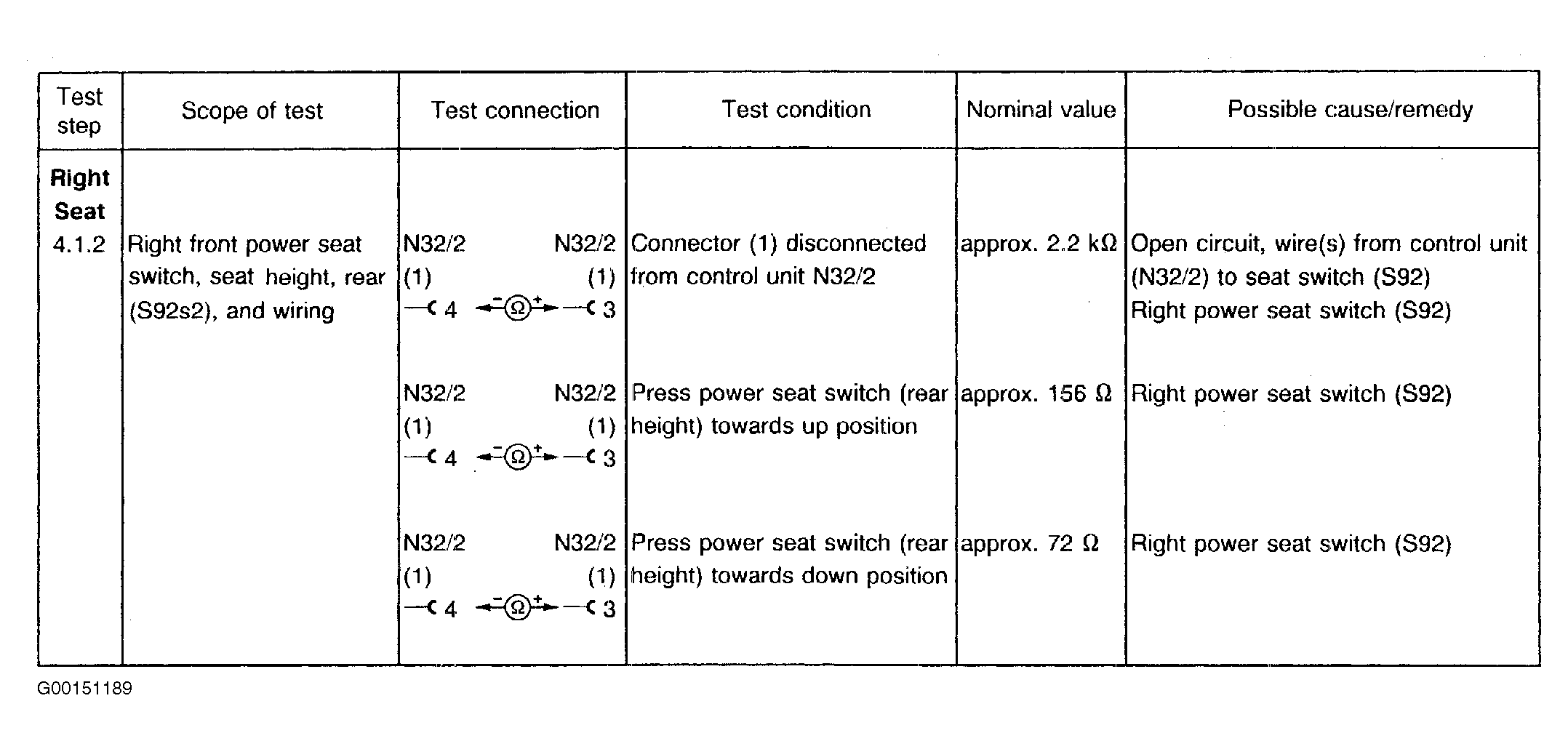

Fig 16: Test Step 4.1.2

G00151189

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

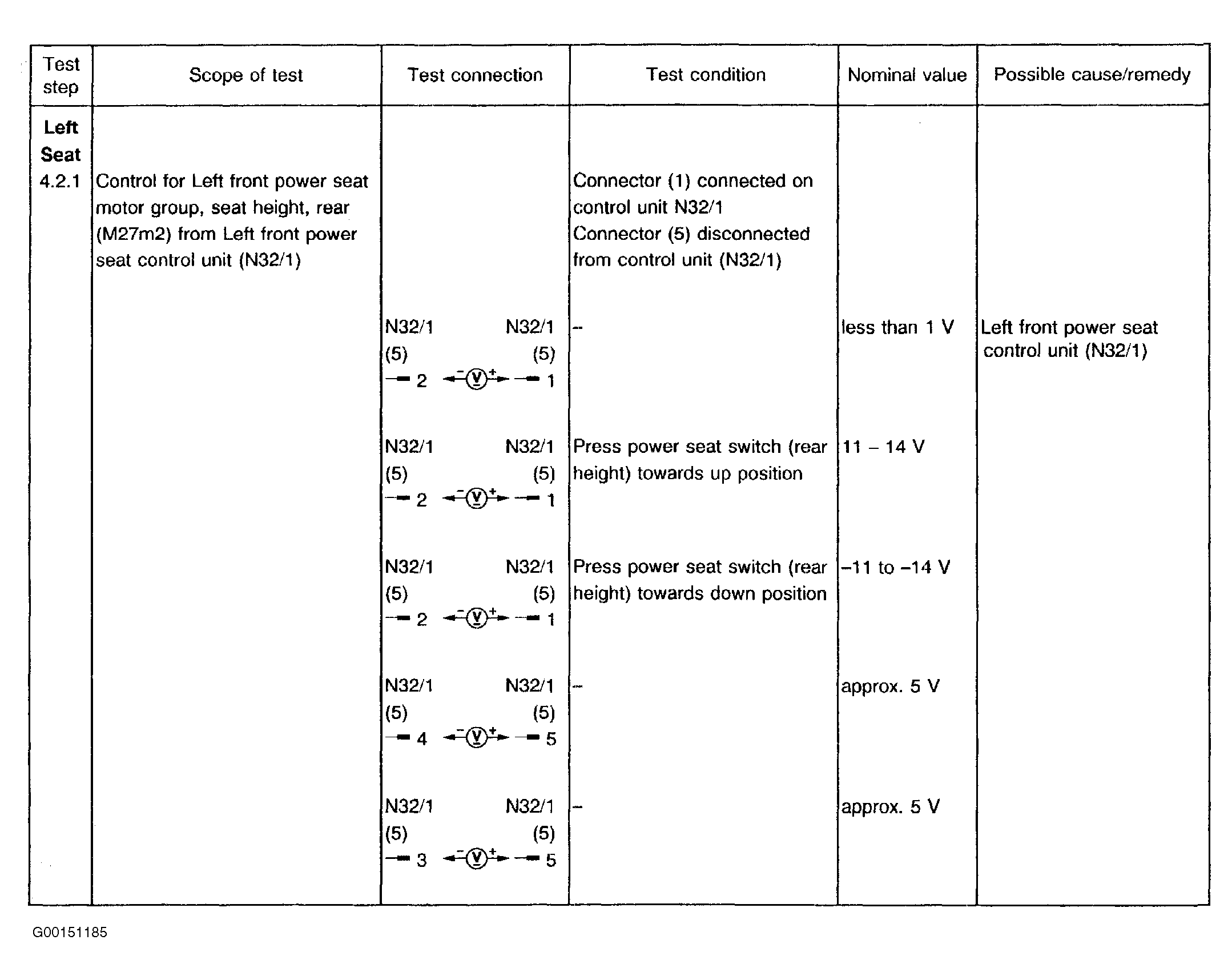

Fig 17: Test Step 4.2.1

G00151185

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

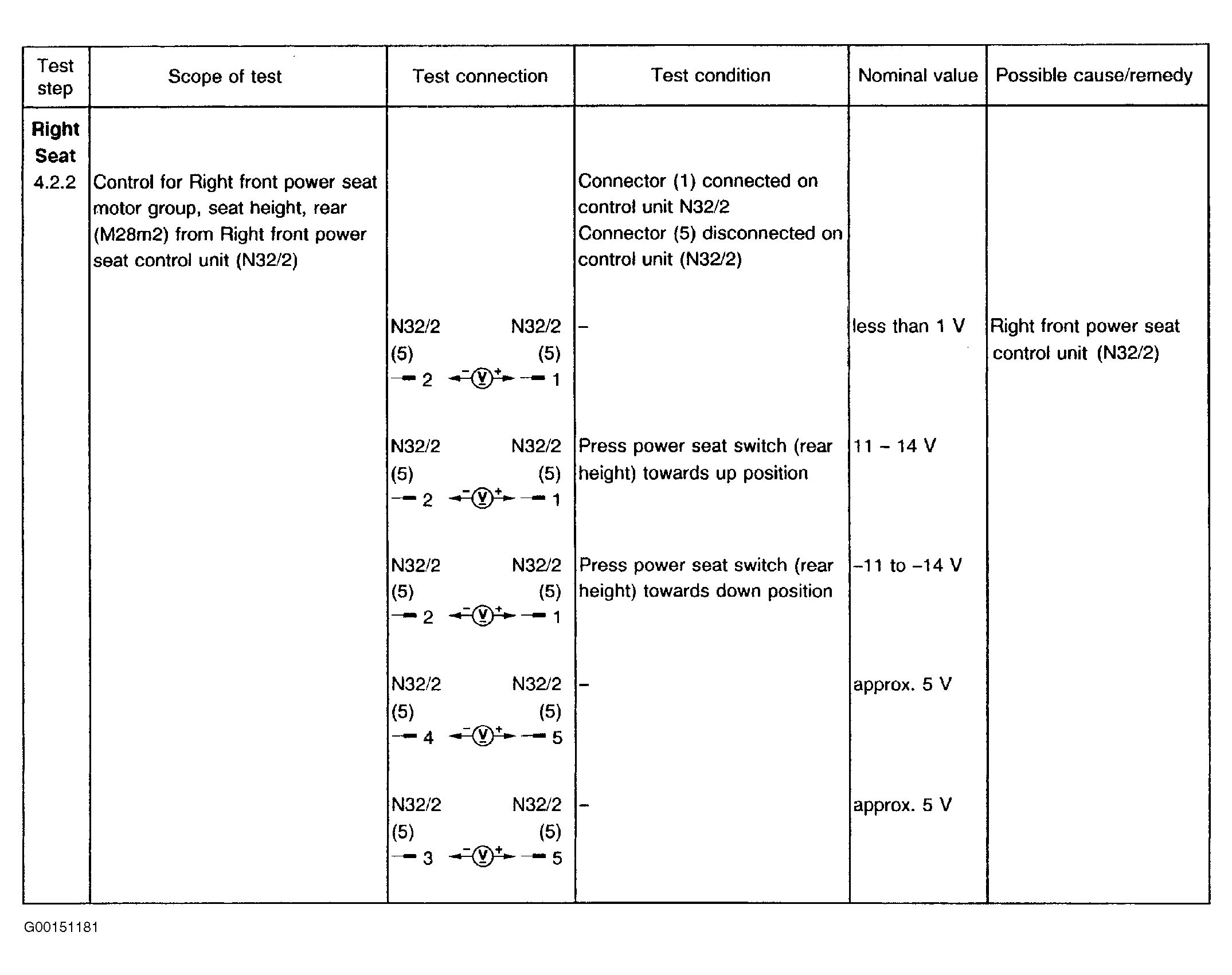

Fig 18: Test Step 4.2.2

G00151181

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

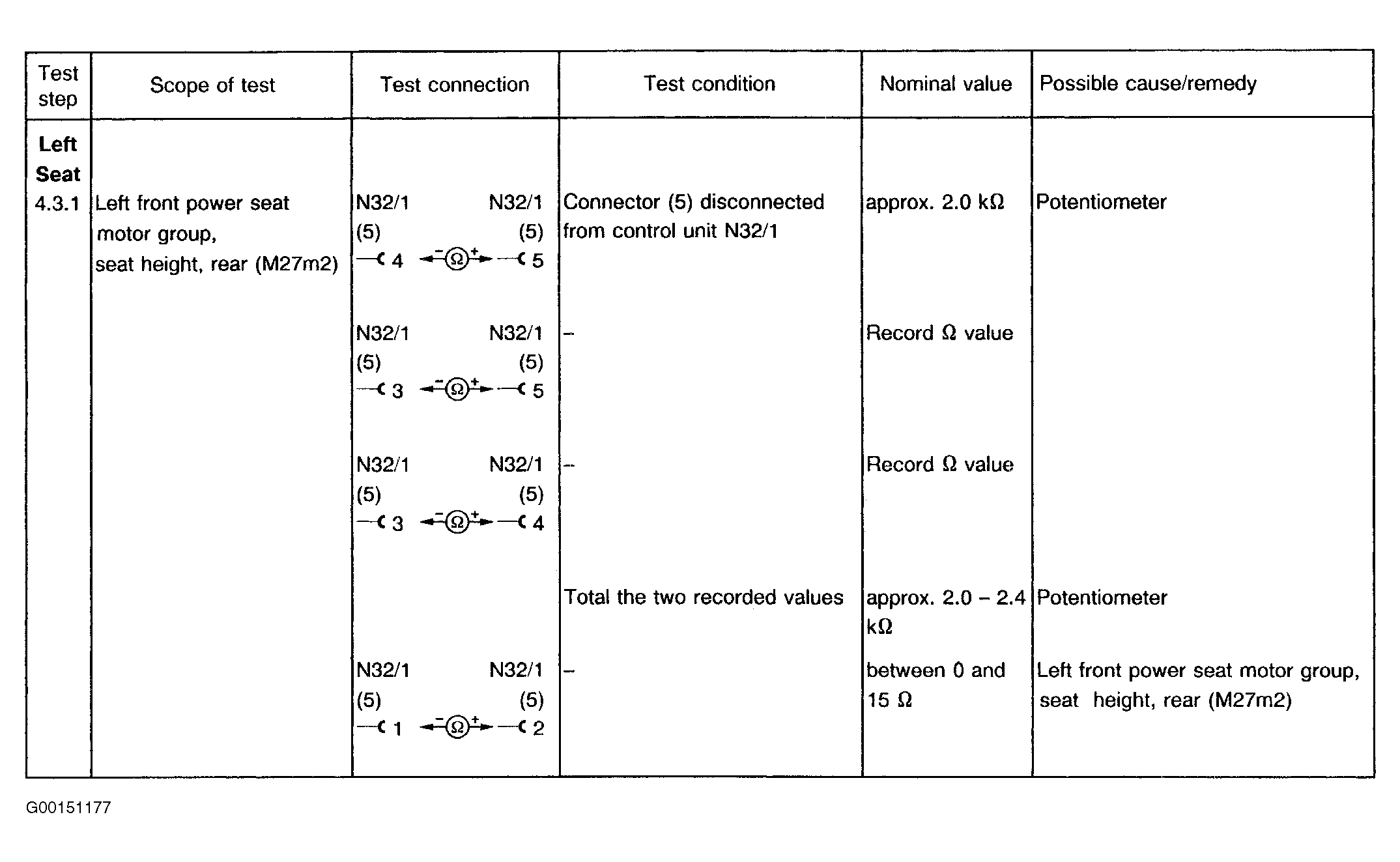

Fig 19: Test Step 4.3.1

G00151177

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

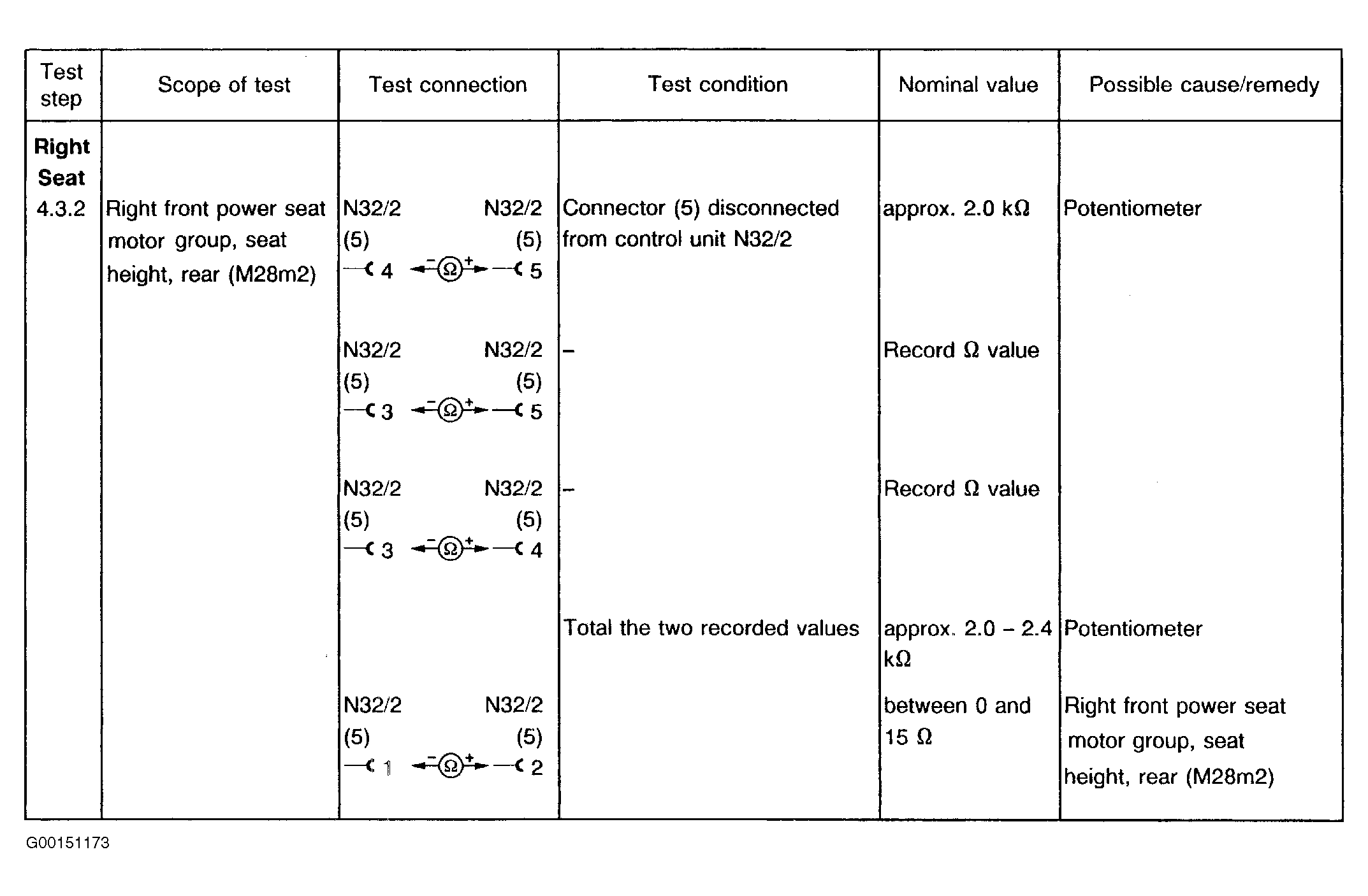

Fig 20: Test Step 4.3.2

G00151173

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

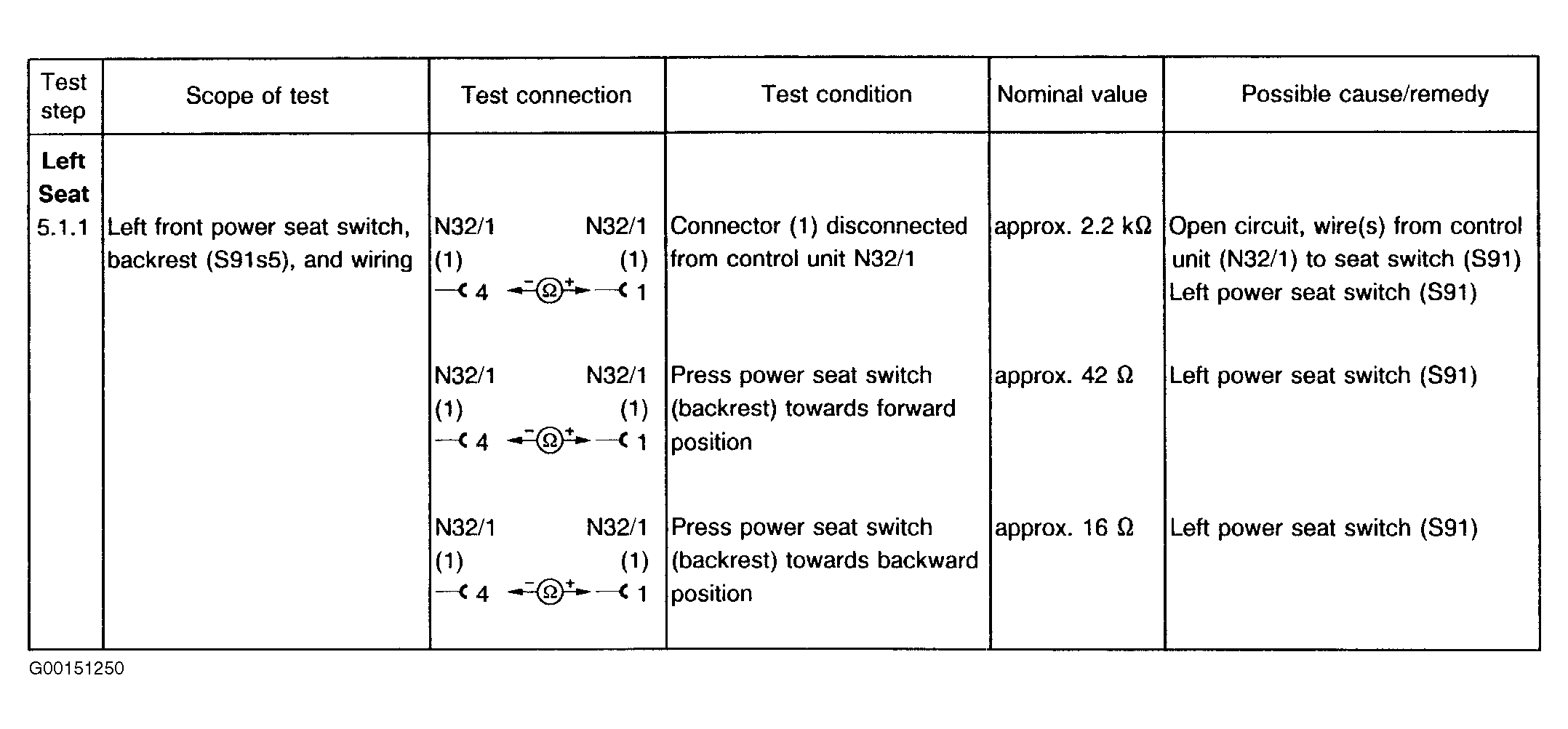

Fig 21: Test Step 5.1.1

G00151250

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 22: Test Step 5.1.2

G00151246

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

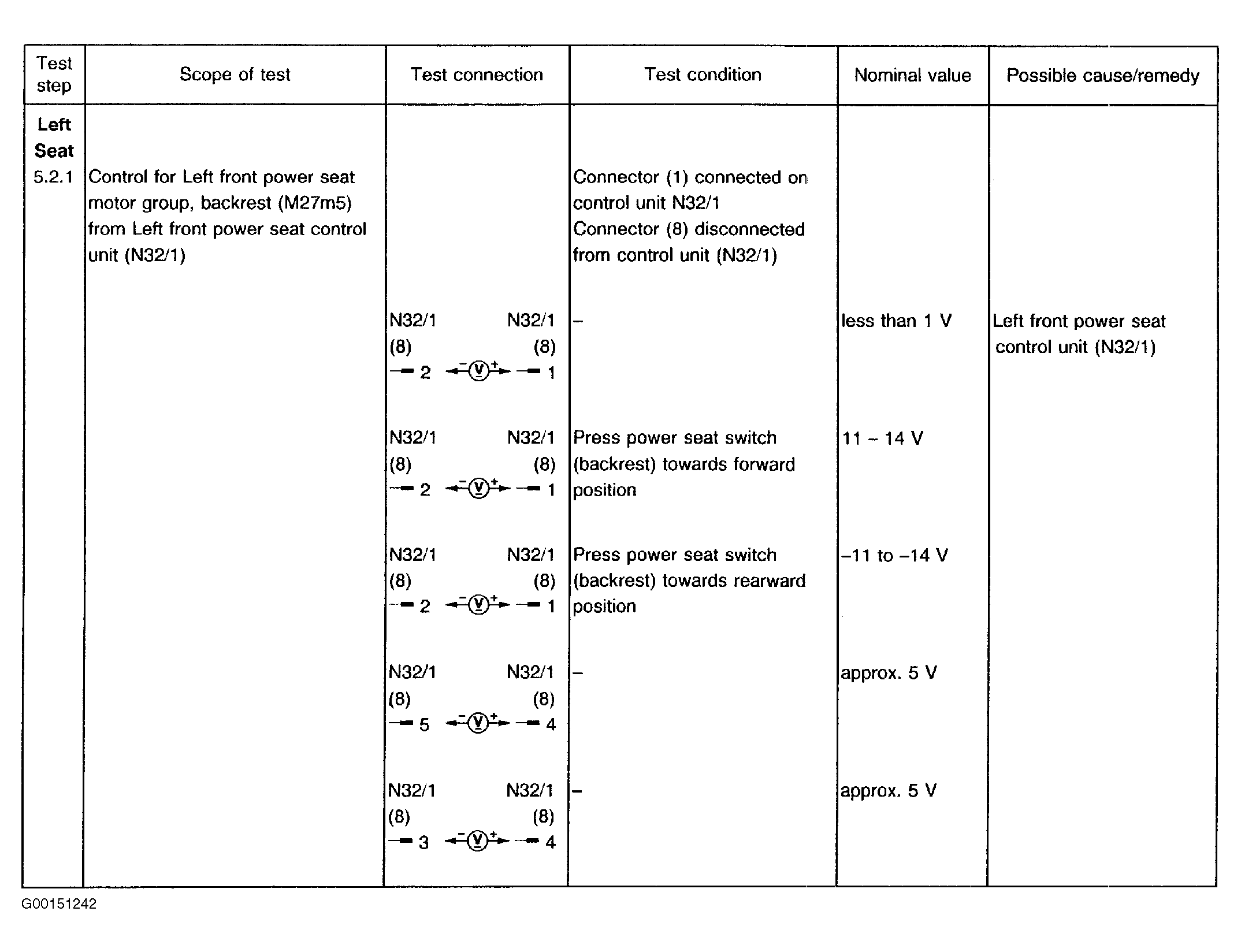

Fig 23: Test Step 5.2.1

G00151242

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

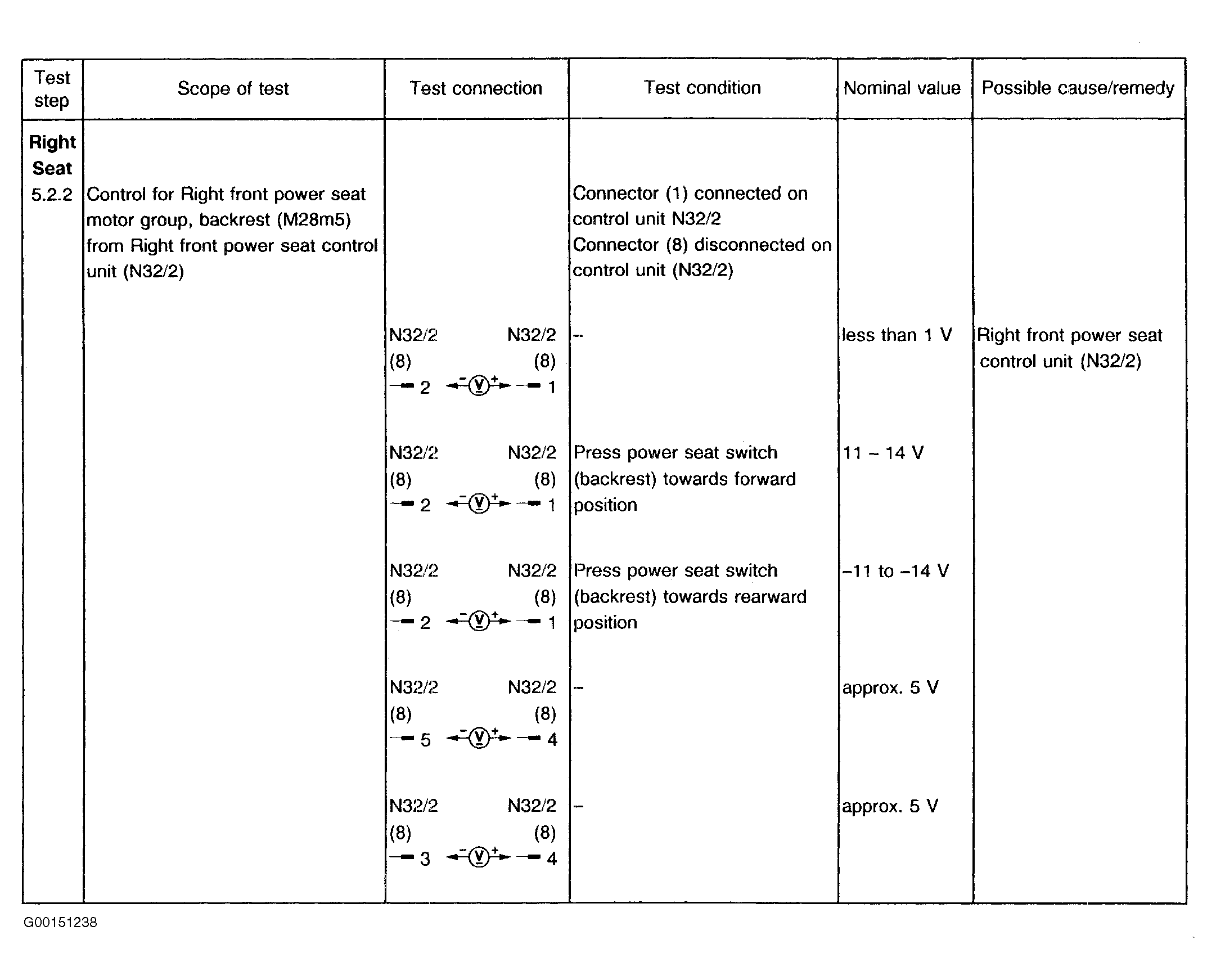

Fig 24: Test Step 5.2.2

G00151238

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

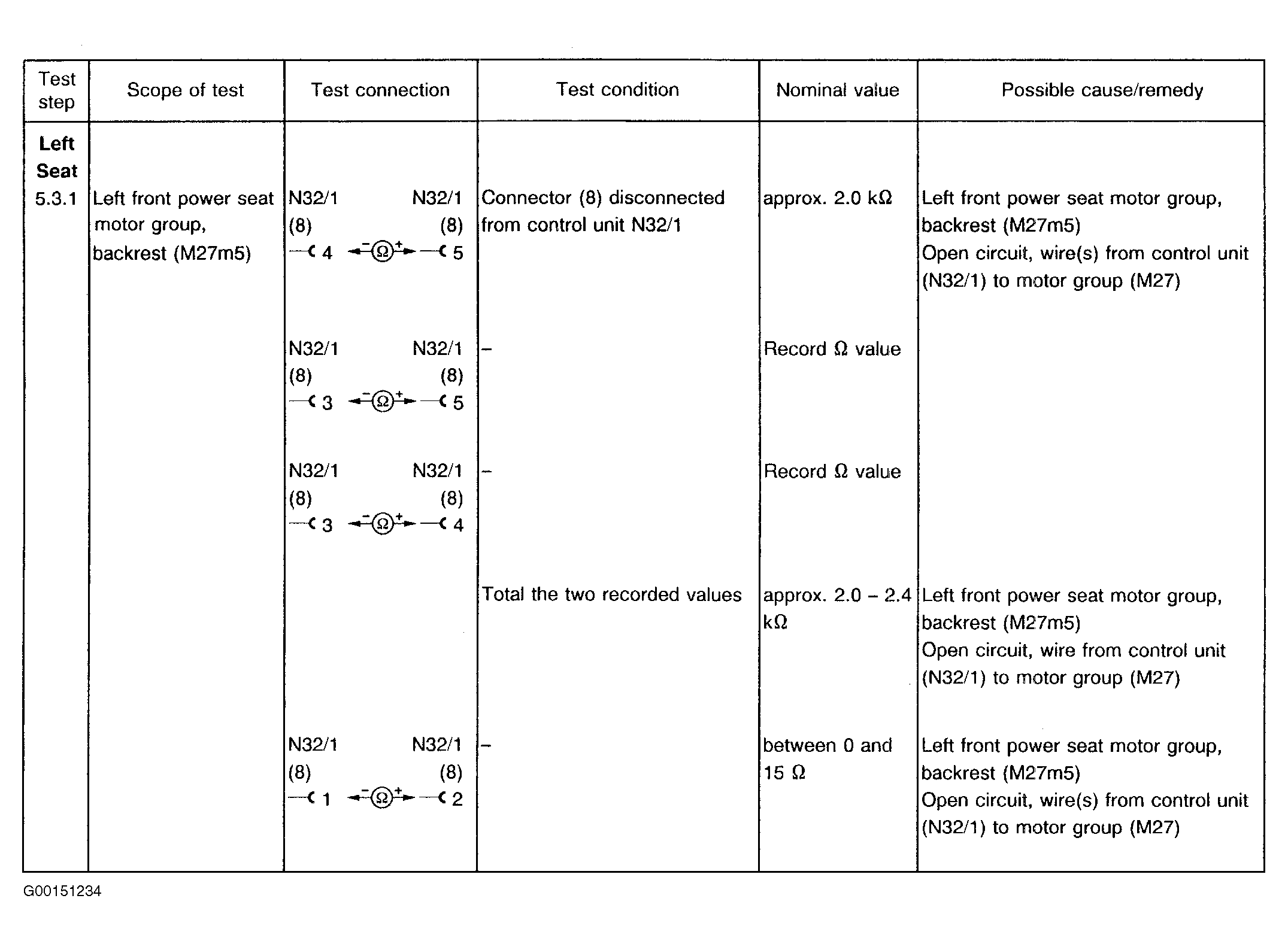

Fig 25: Test Step 5.3.1

G00151234

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

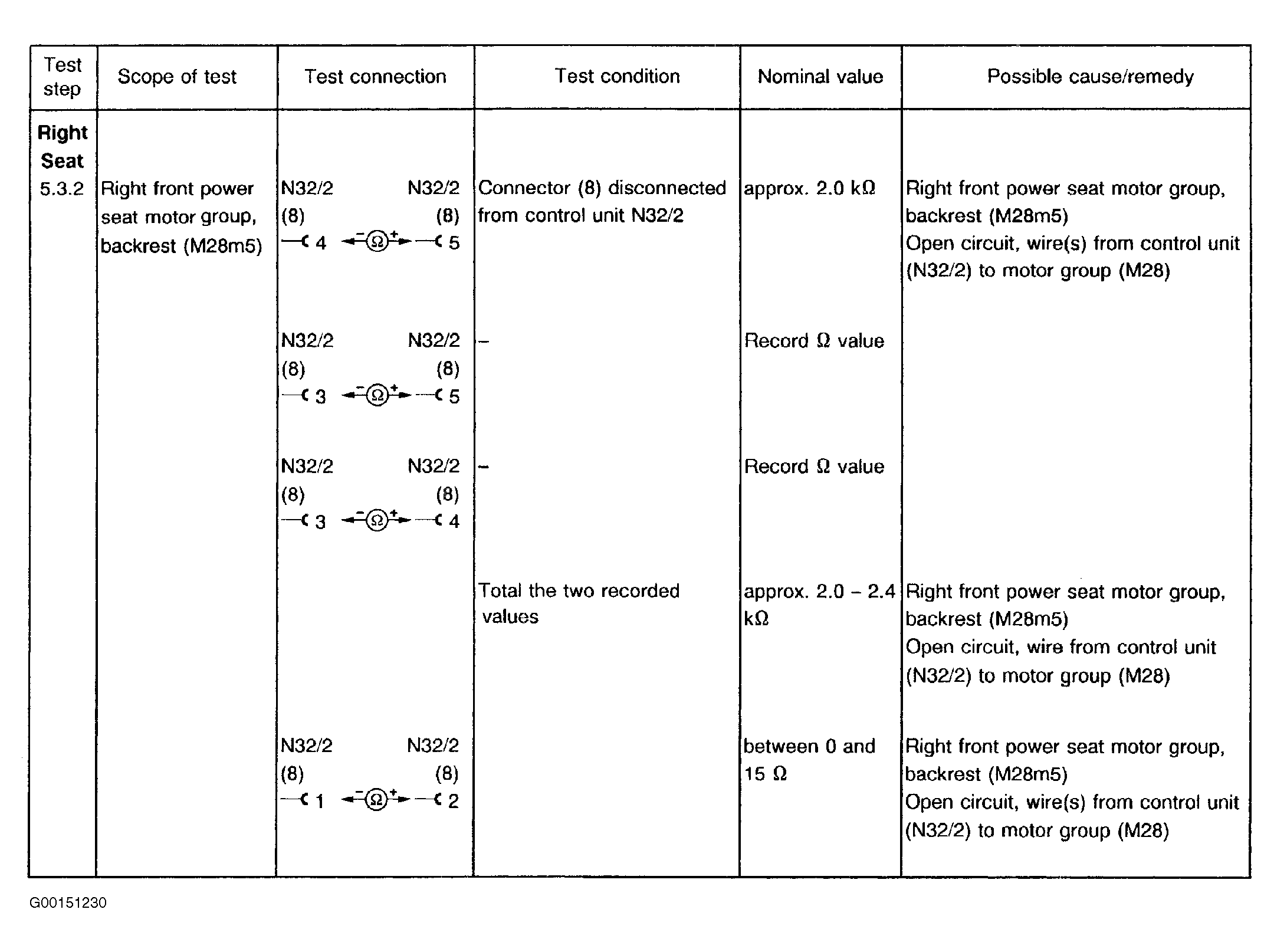

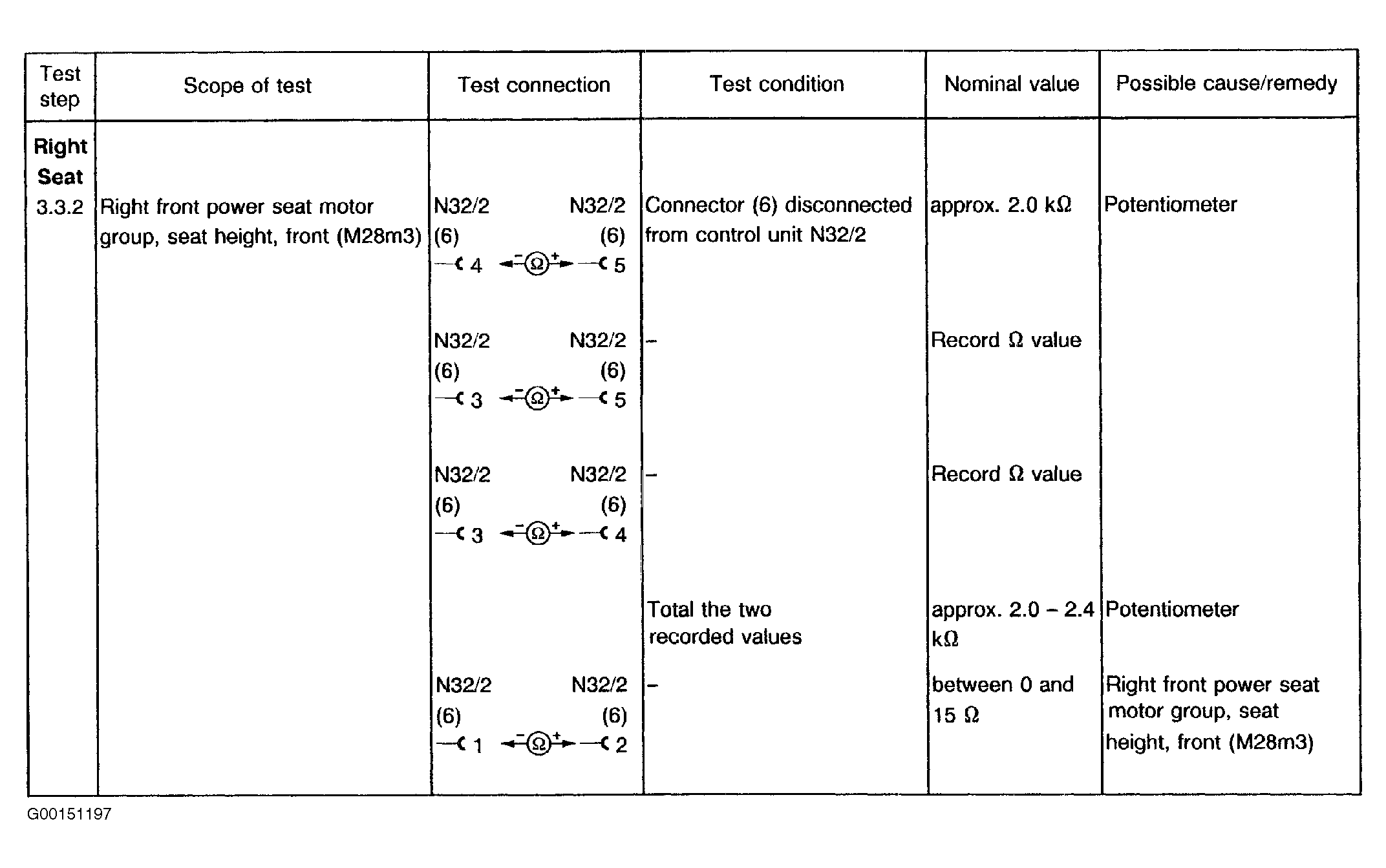

Fig 26: Test Step 5.3.2

G00151230

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

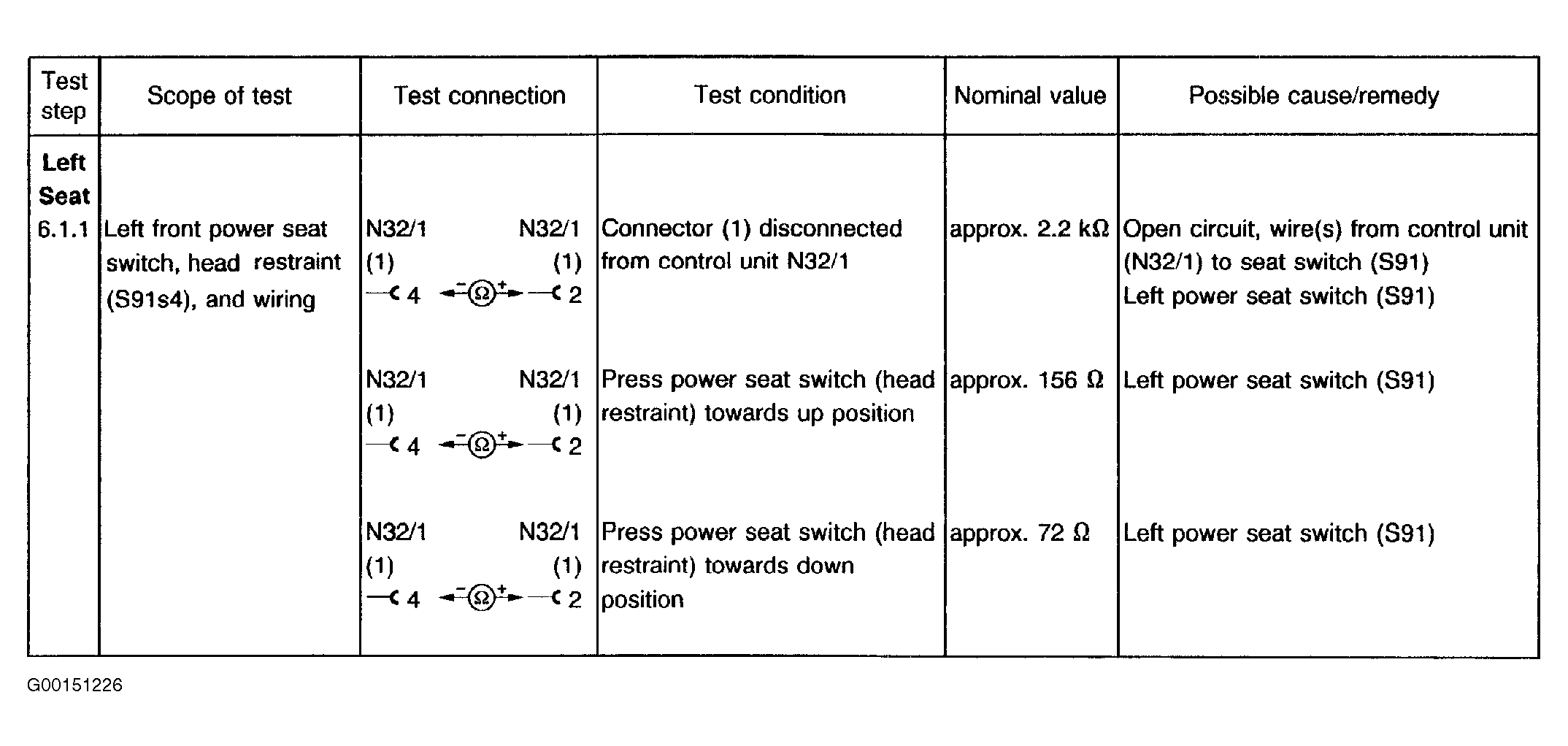

Fig 27: Test Step 6.1.1

G00151226

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

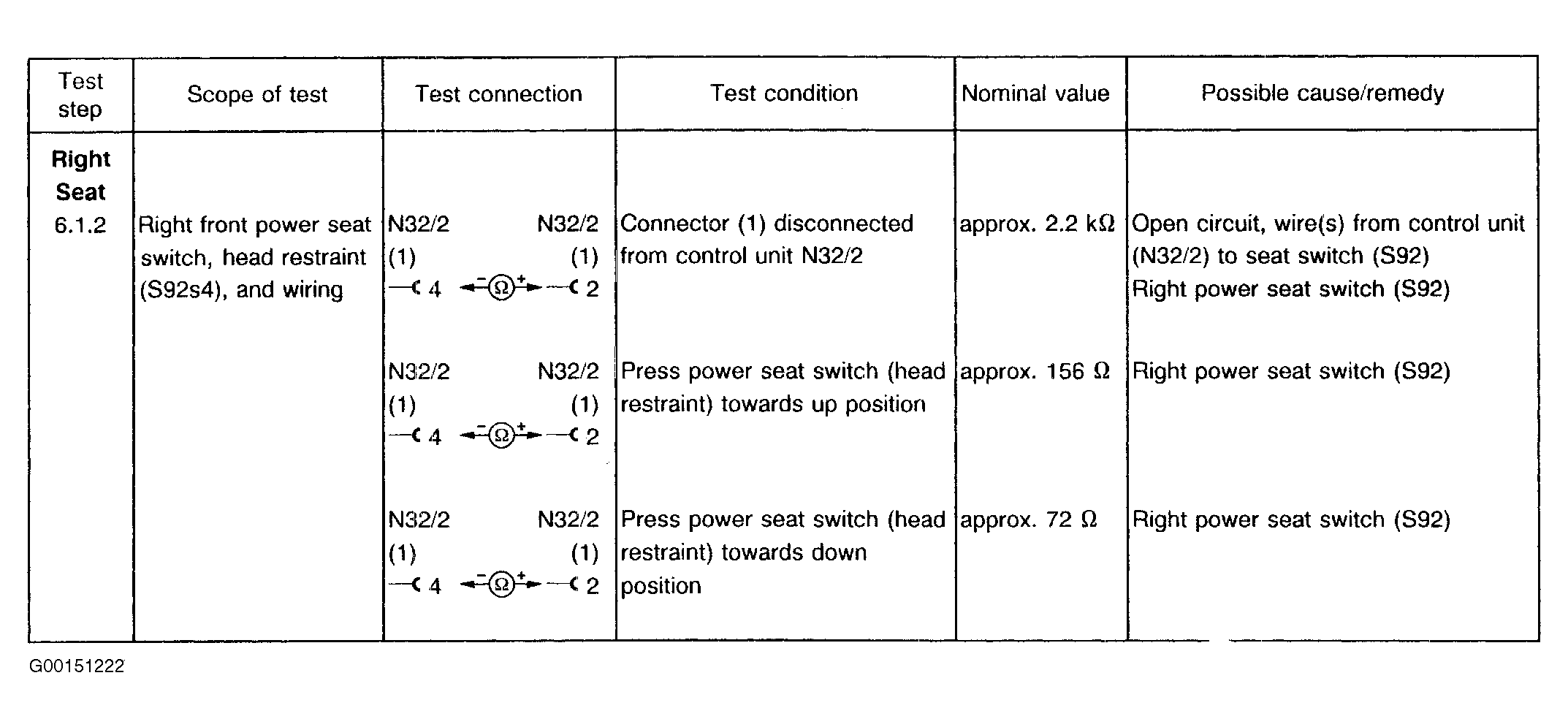

Fig 28: Test Step 6.1.2

G00151222

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

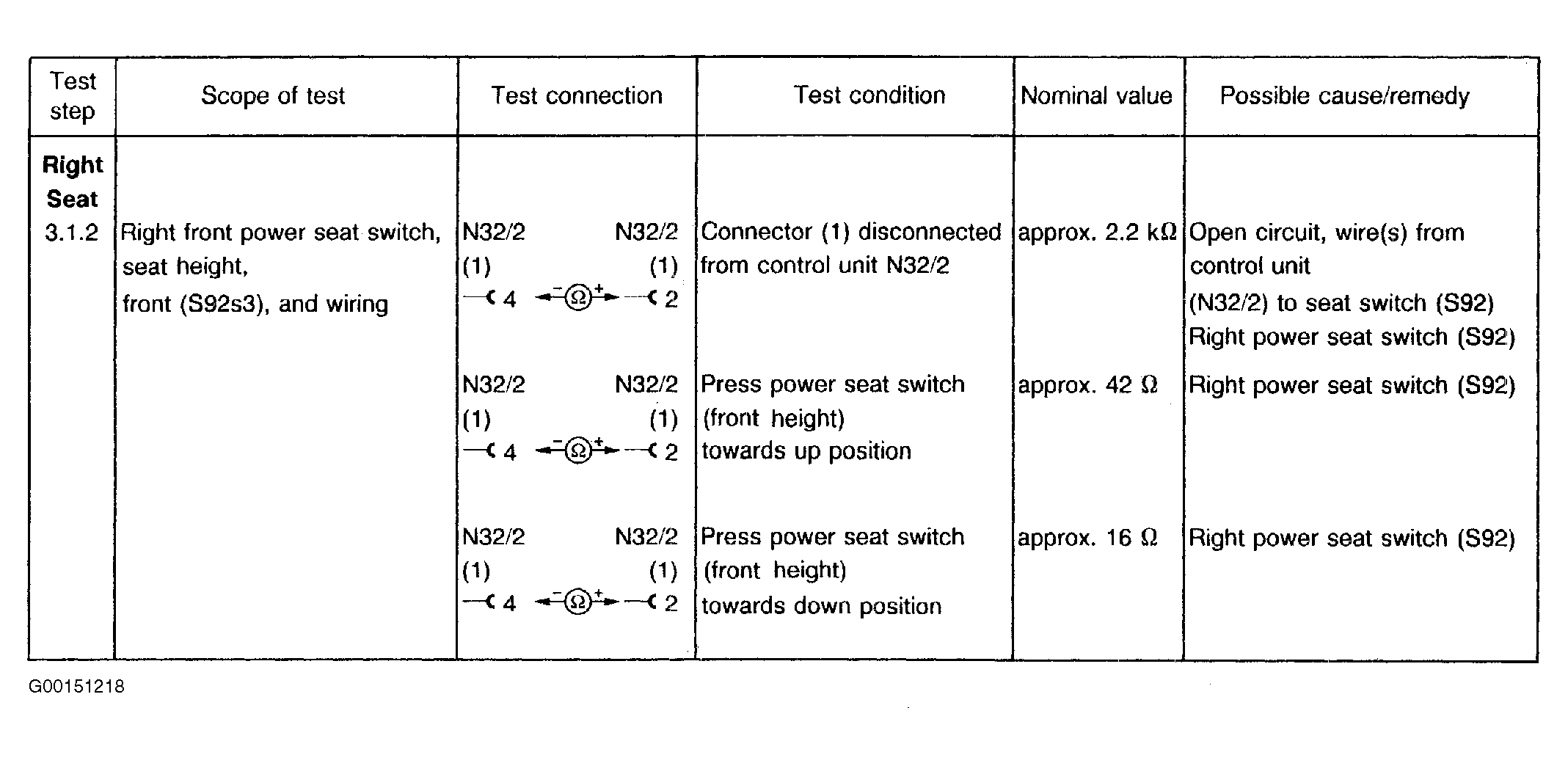

Fig 29: Test Step 6.2.1

G00151218

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

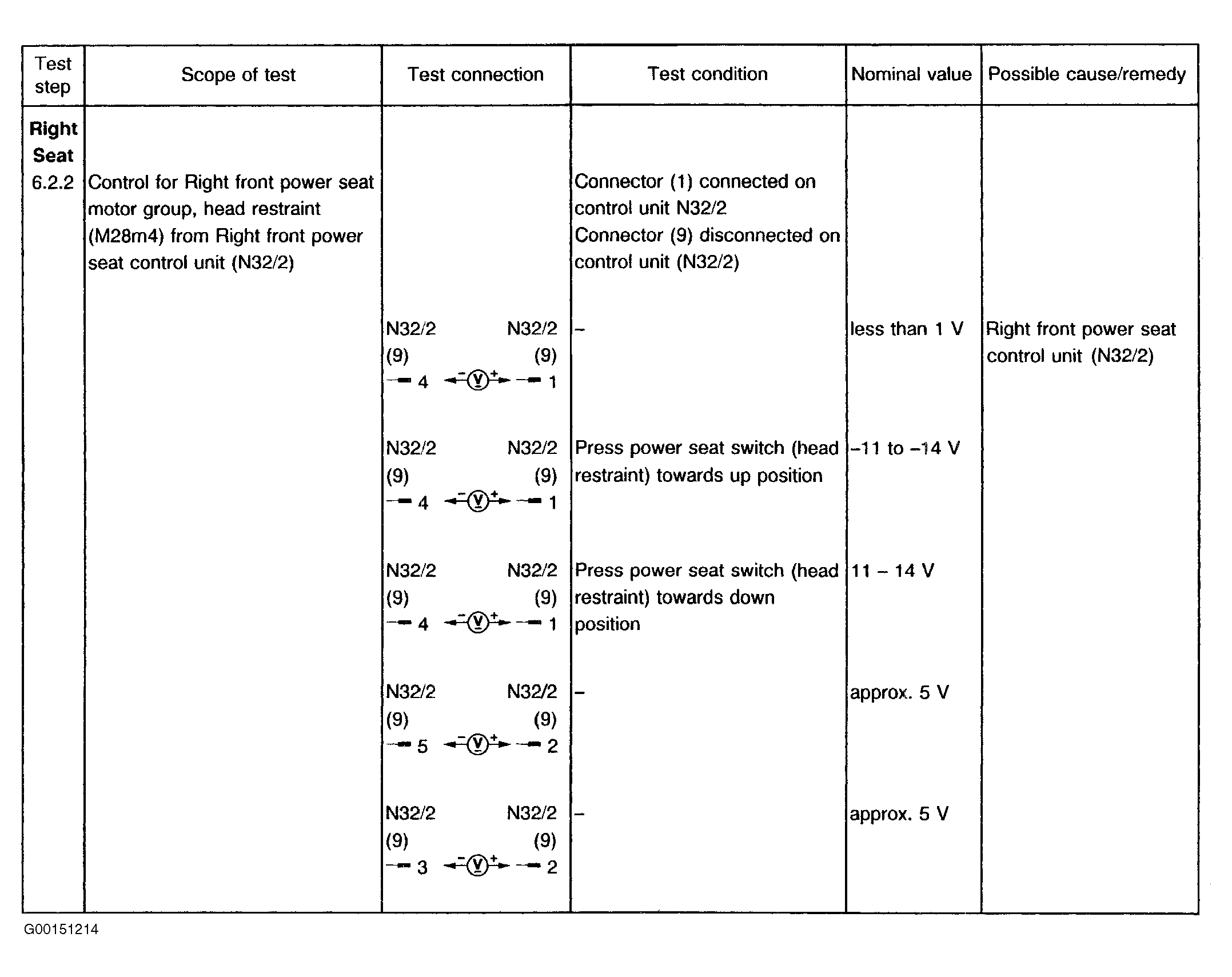

Fig 30: Test Step 6.2.2

G00151214

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

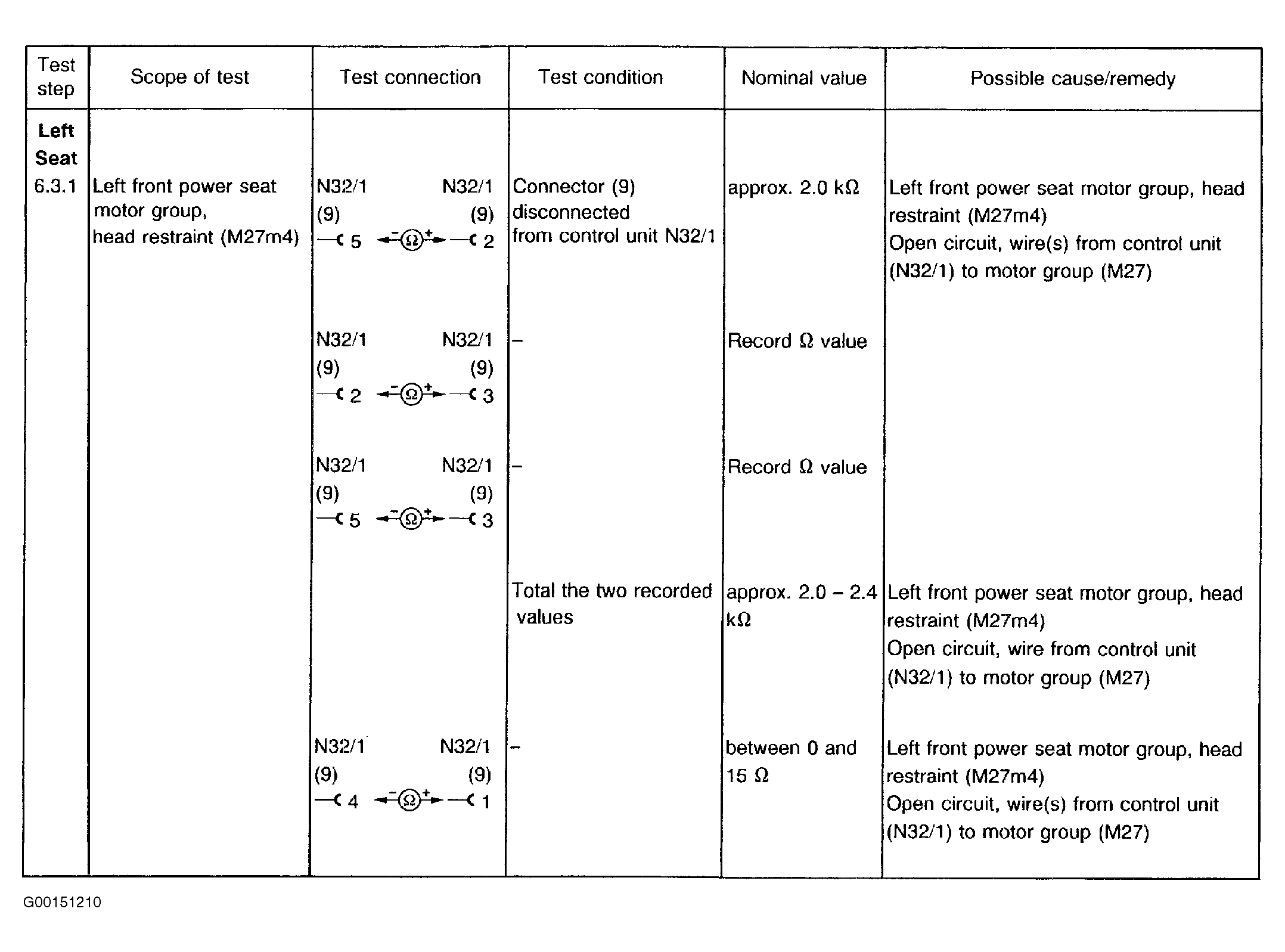

Fig 31: Test Step 6.3.1

G00151210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

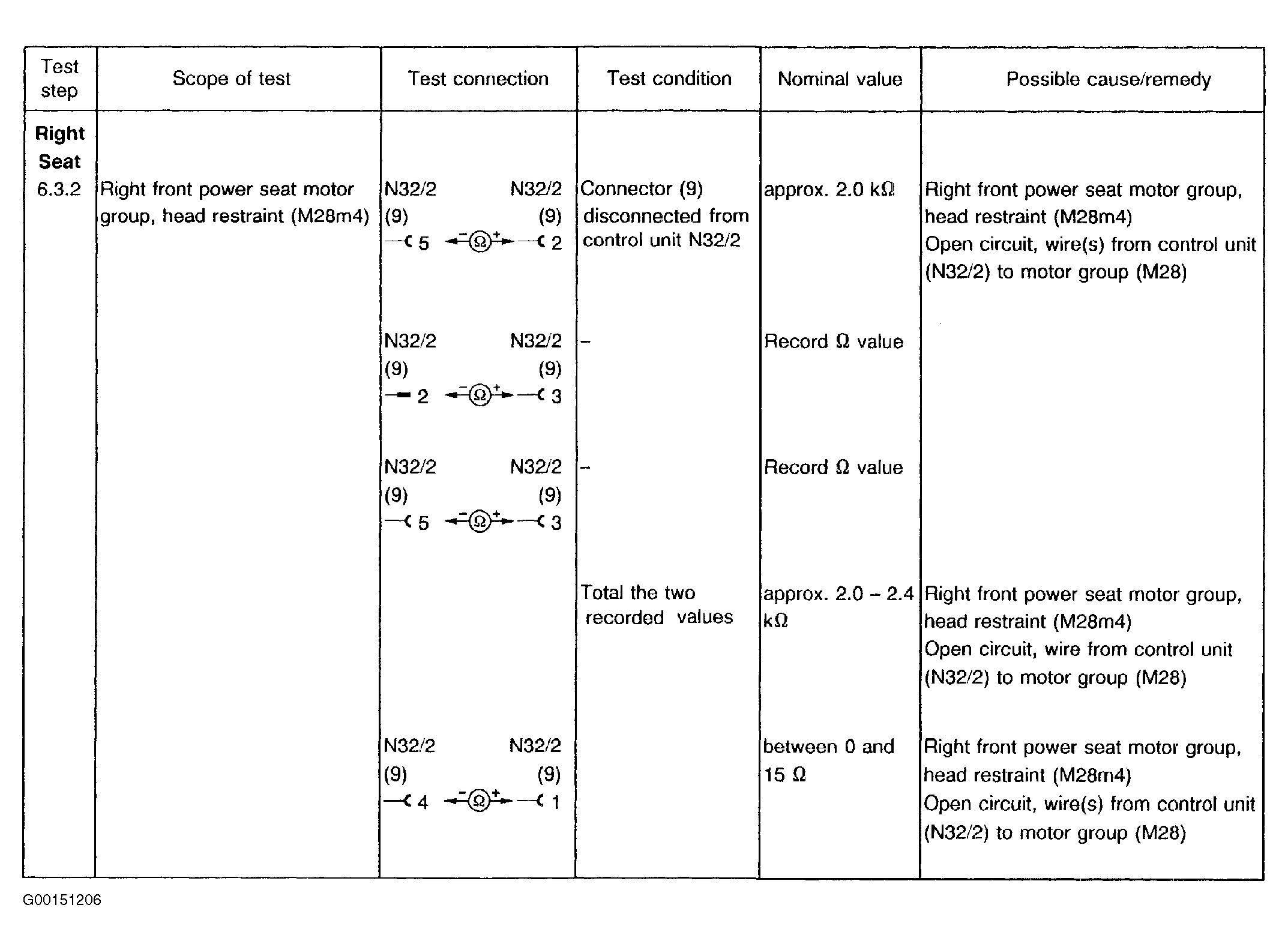

Fig 32: Test Step 6.3.2

G00151206

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 33: Test Step 7.1.1

G00151202

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

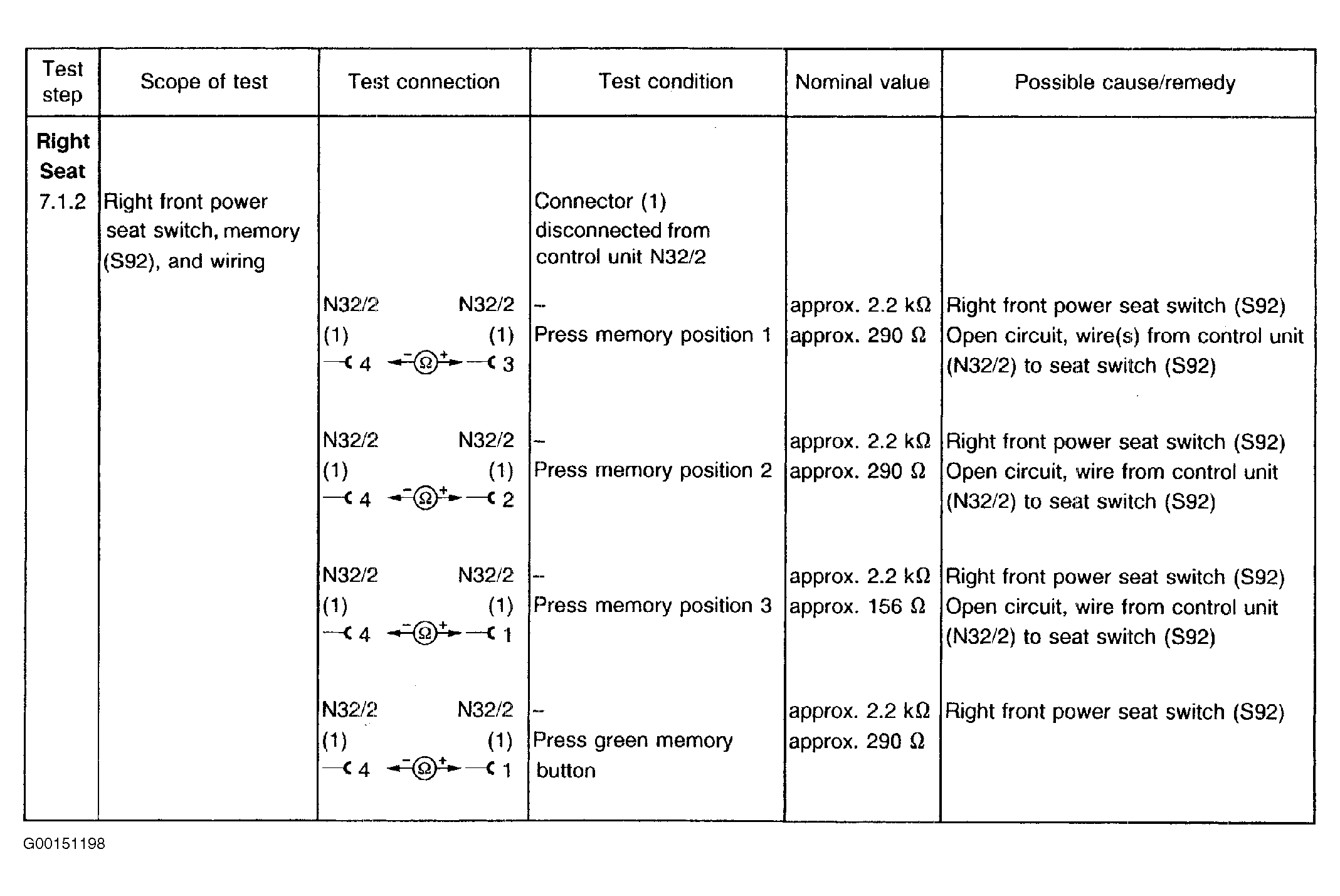

Fig 34: Test Step 7.1.2

G00151198

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

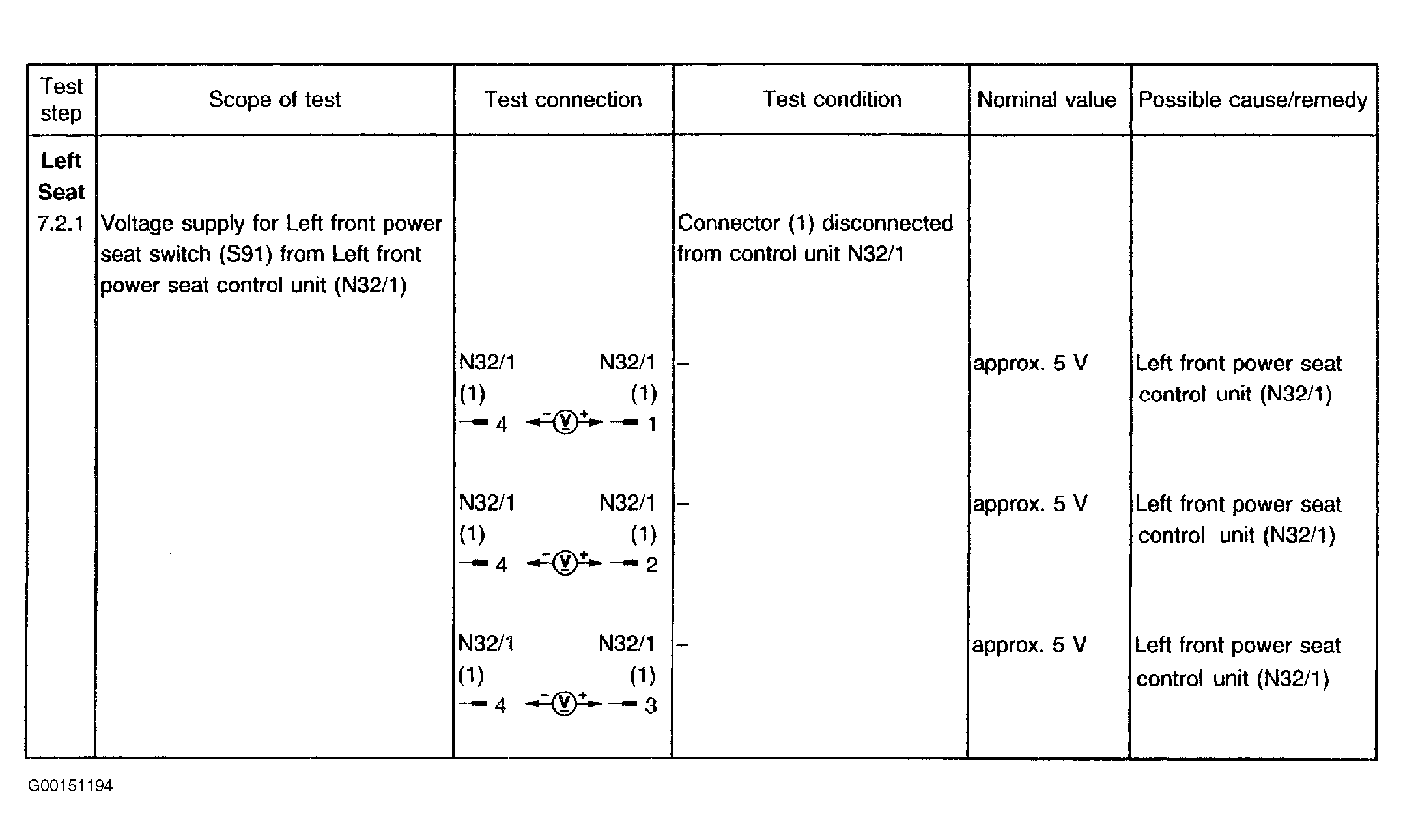

Fig 35: Test Step 7.2.1

G00151194

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

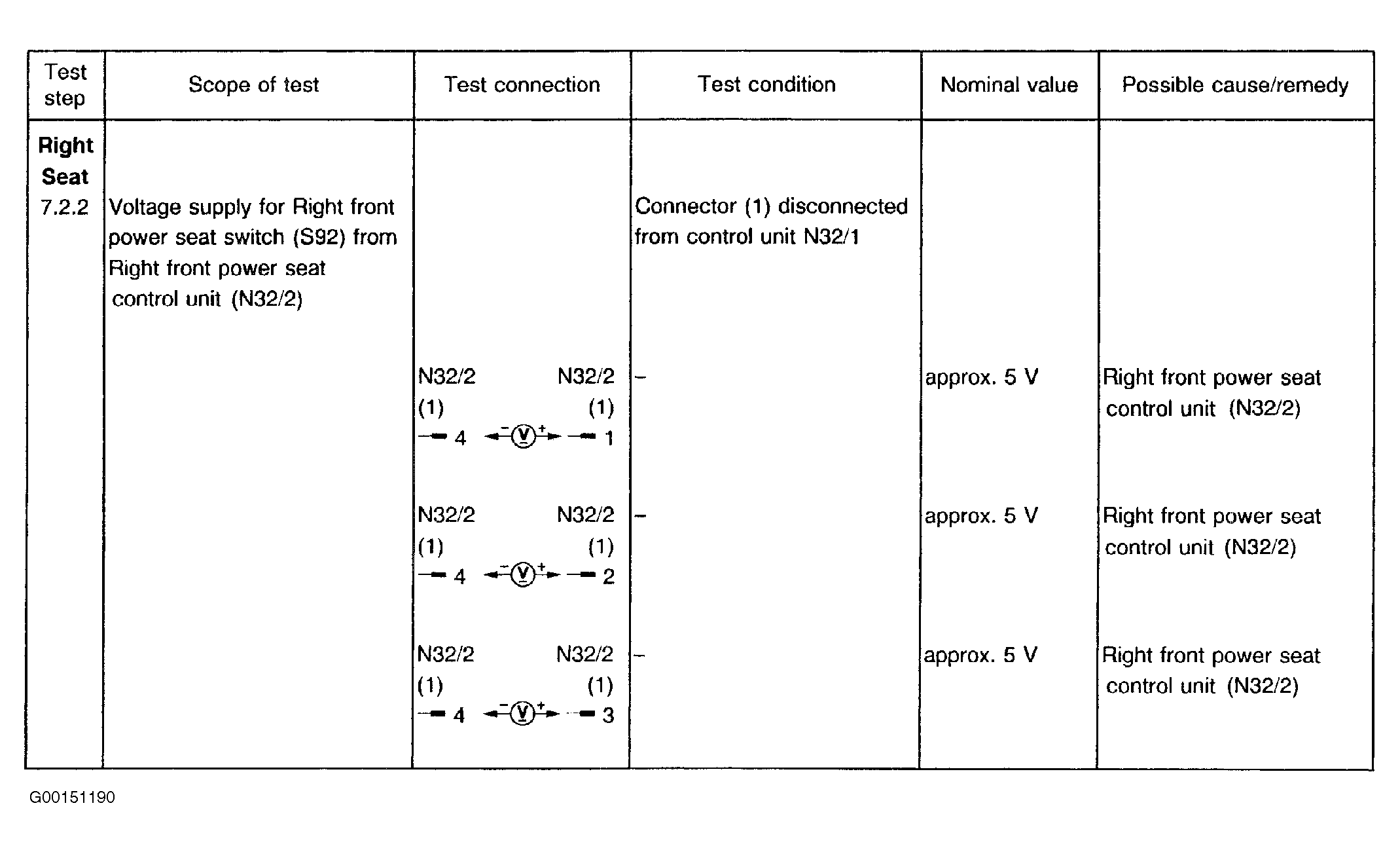

Fig 36: Test Step 7.2.2

G00151190

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

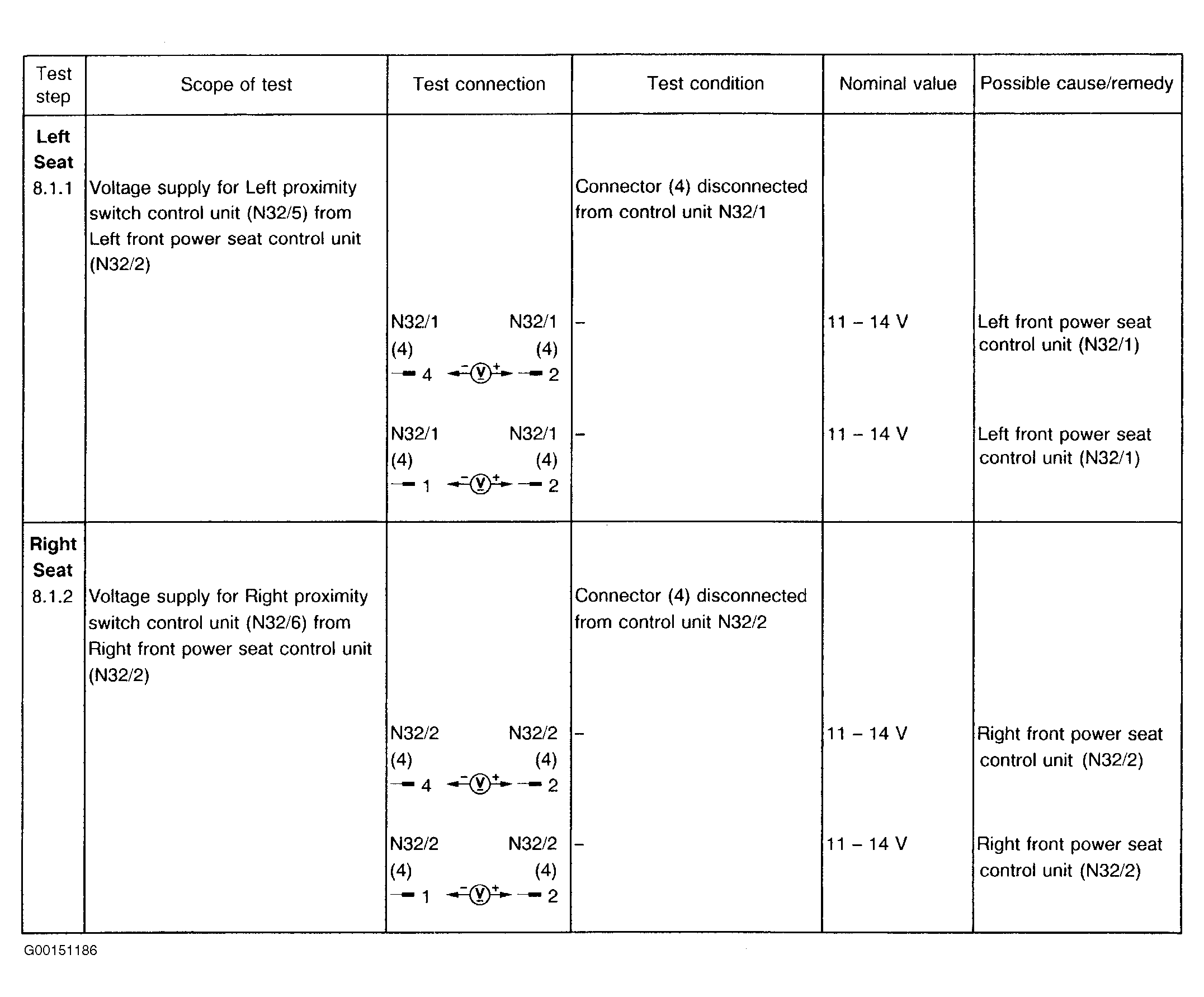

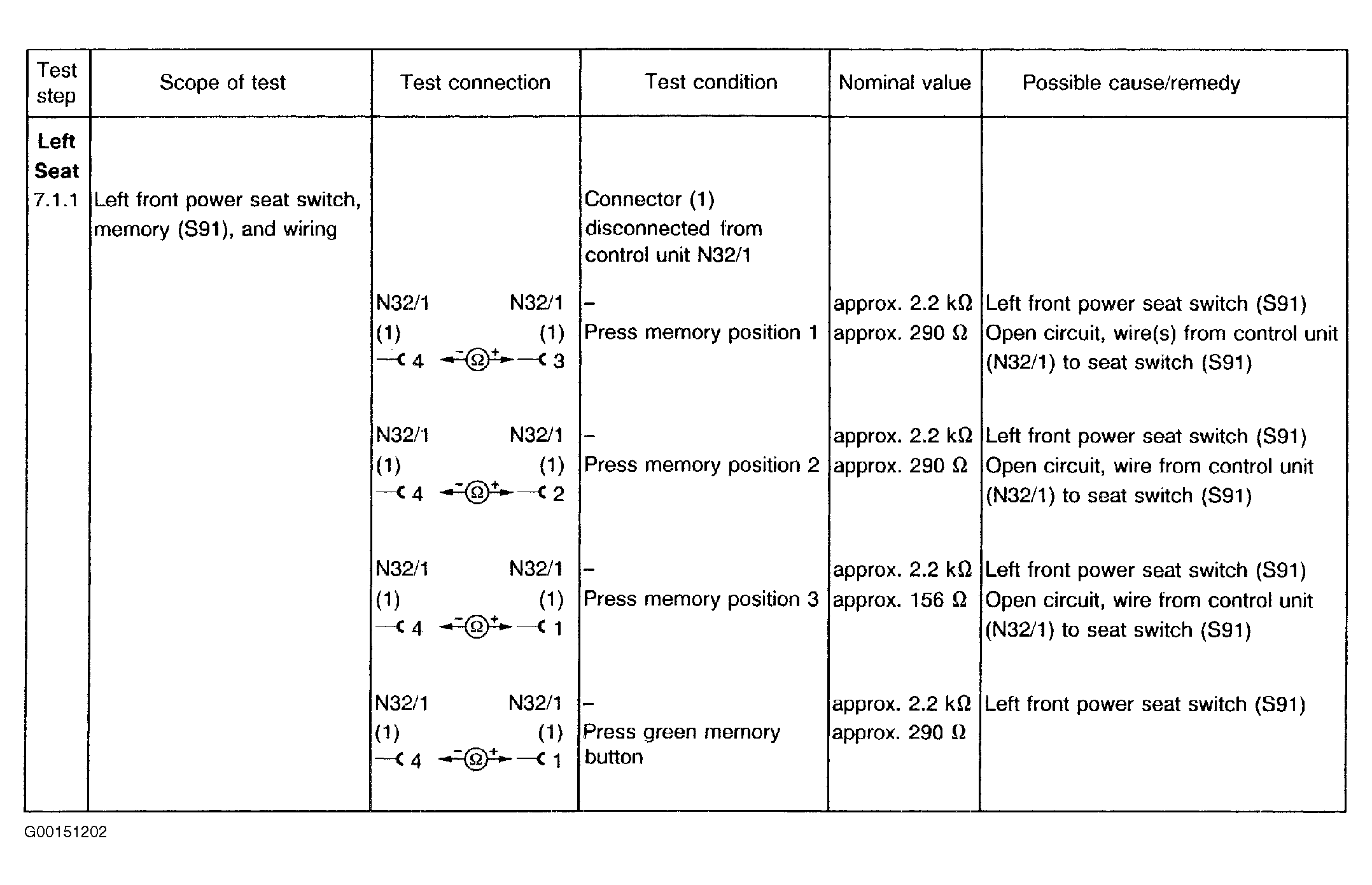

Fig 37: Test Steps 8.1.1 & 8.1.2

G00151186

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

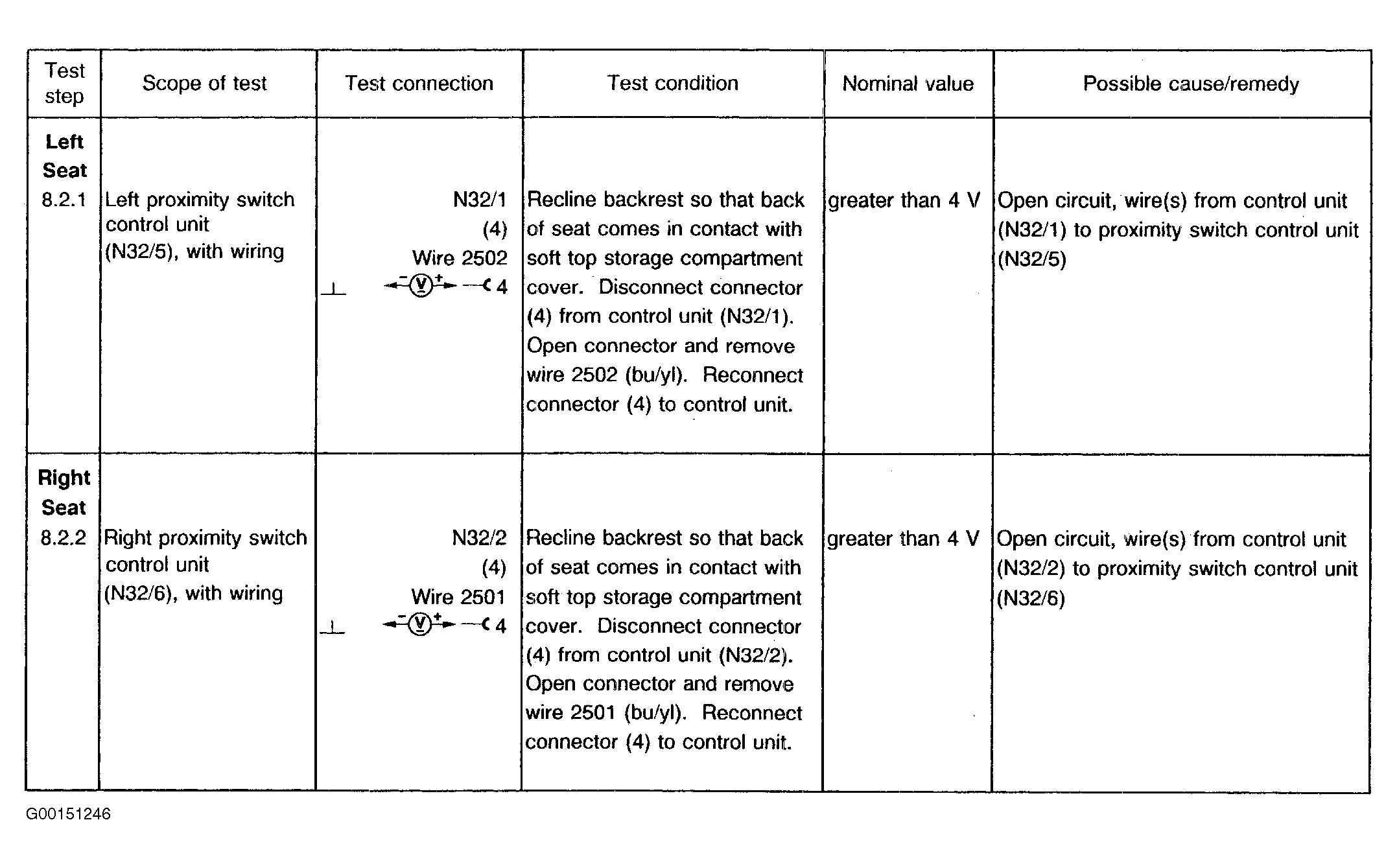

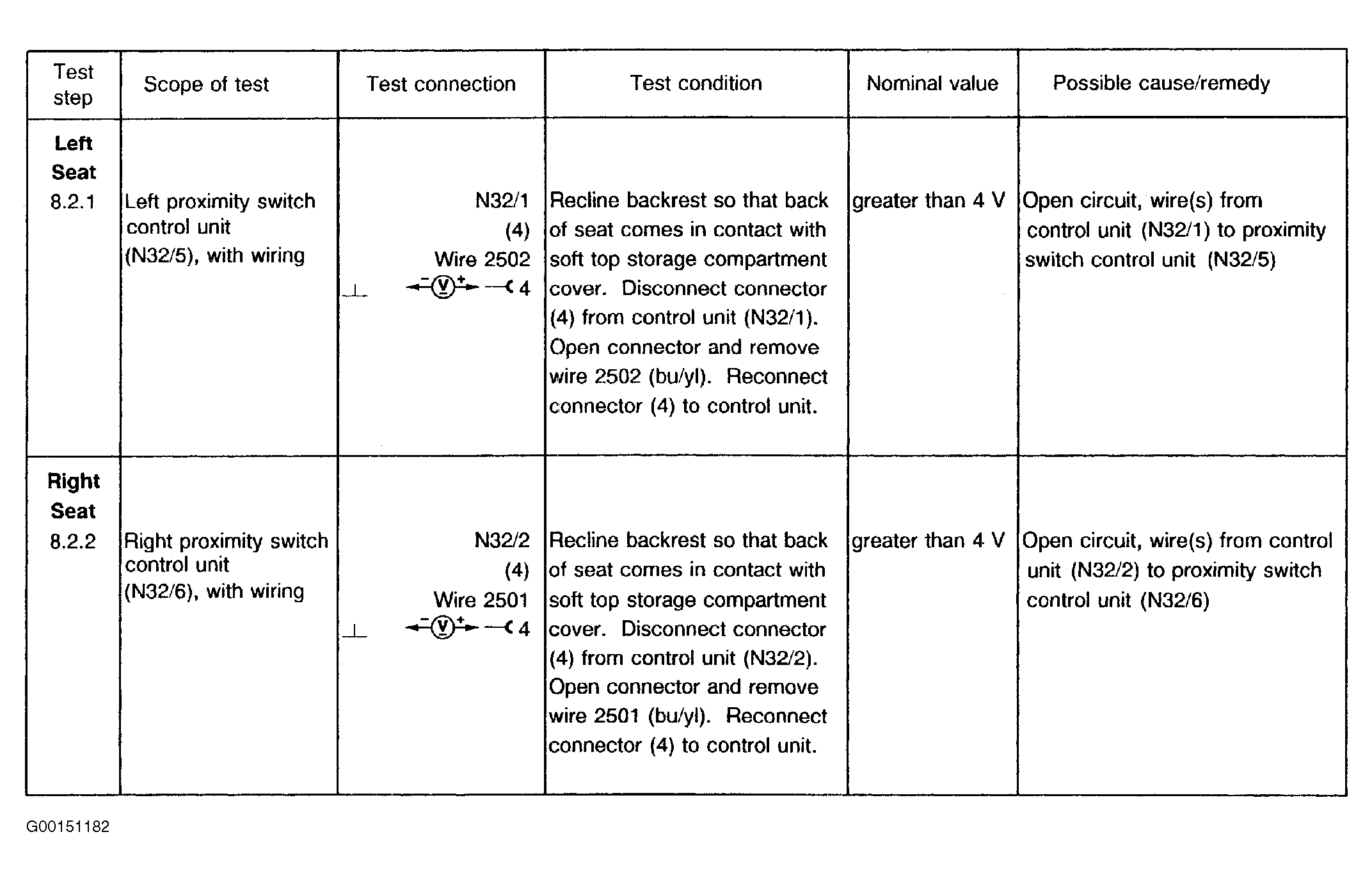

Fig 38: Test Steps 8.2.1 & 8.2.2

G00151182

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

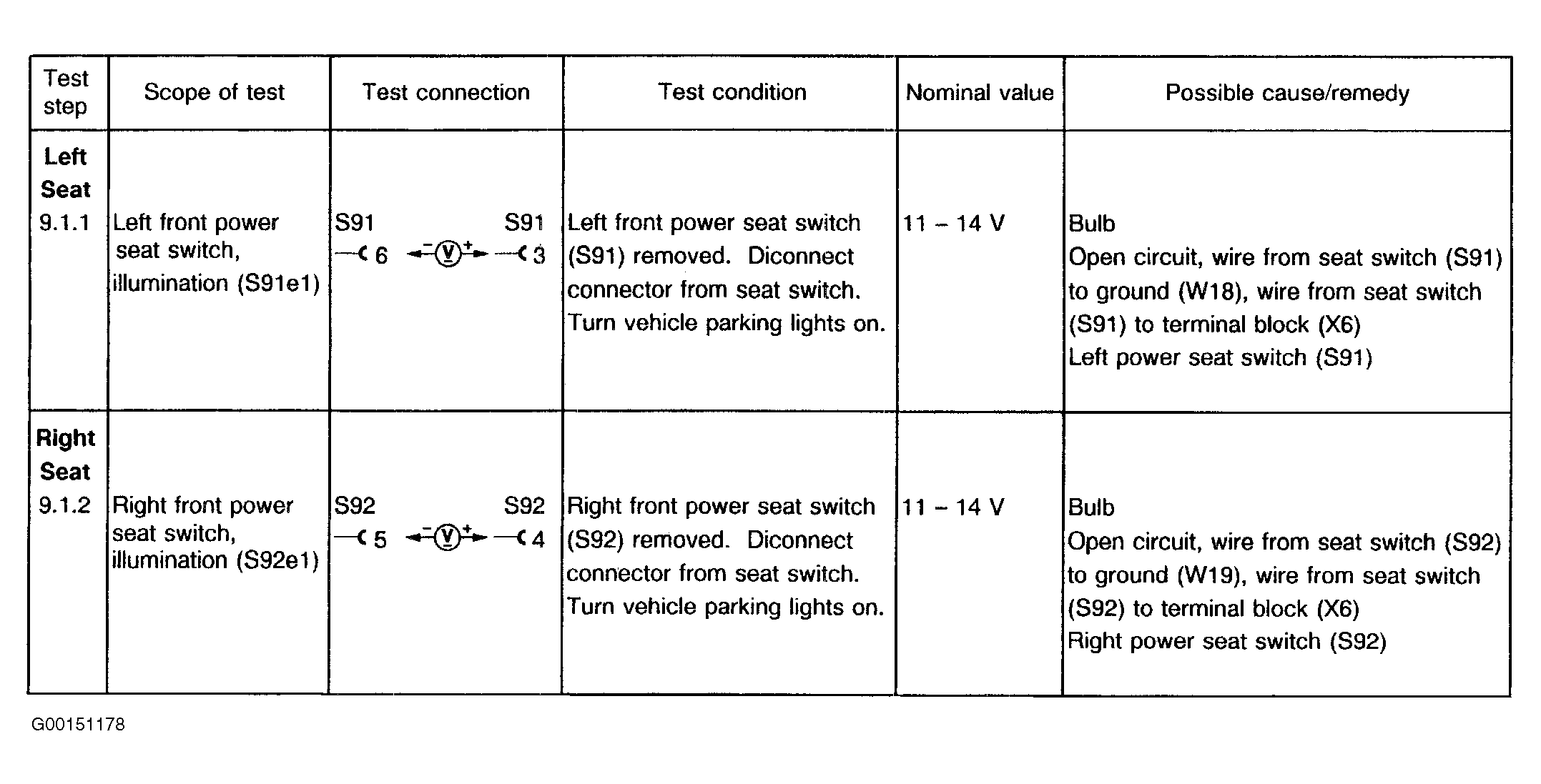

Fig 39: Test Steps 9.1.1 & 9.1.2

G00151178

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

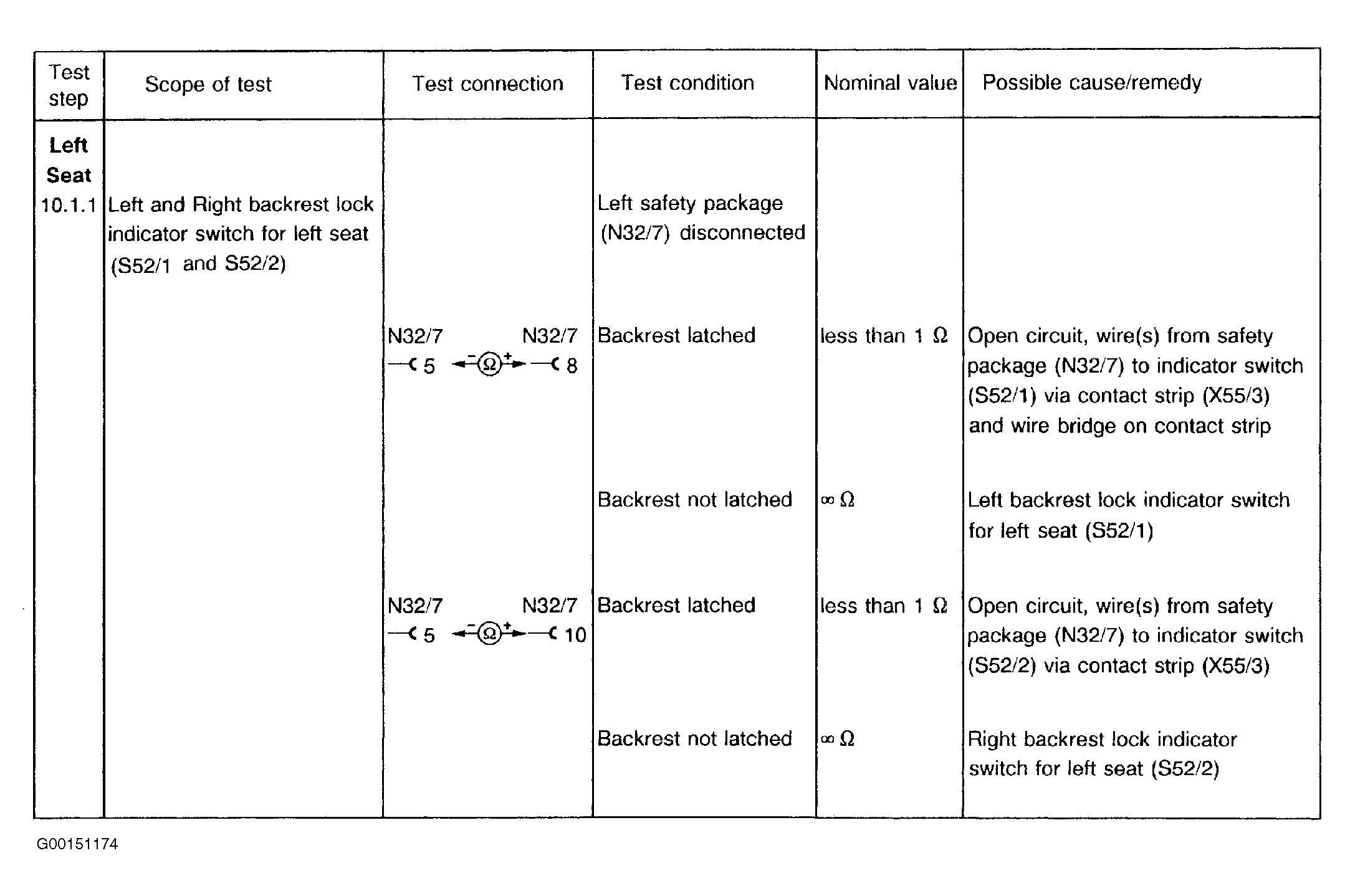

Fig 40: Test Step 10.1.1

G00151174

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

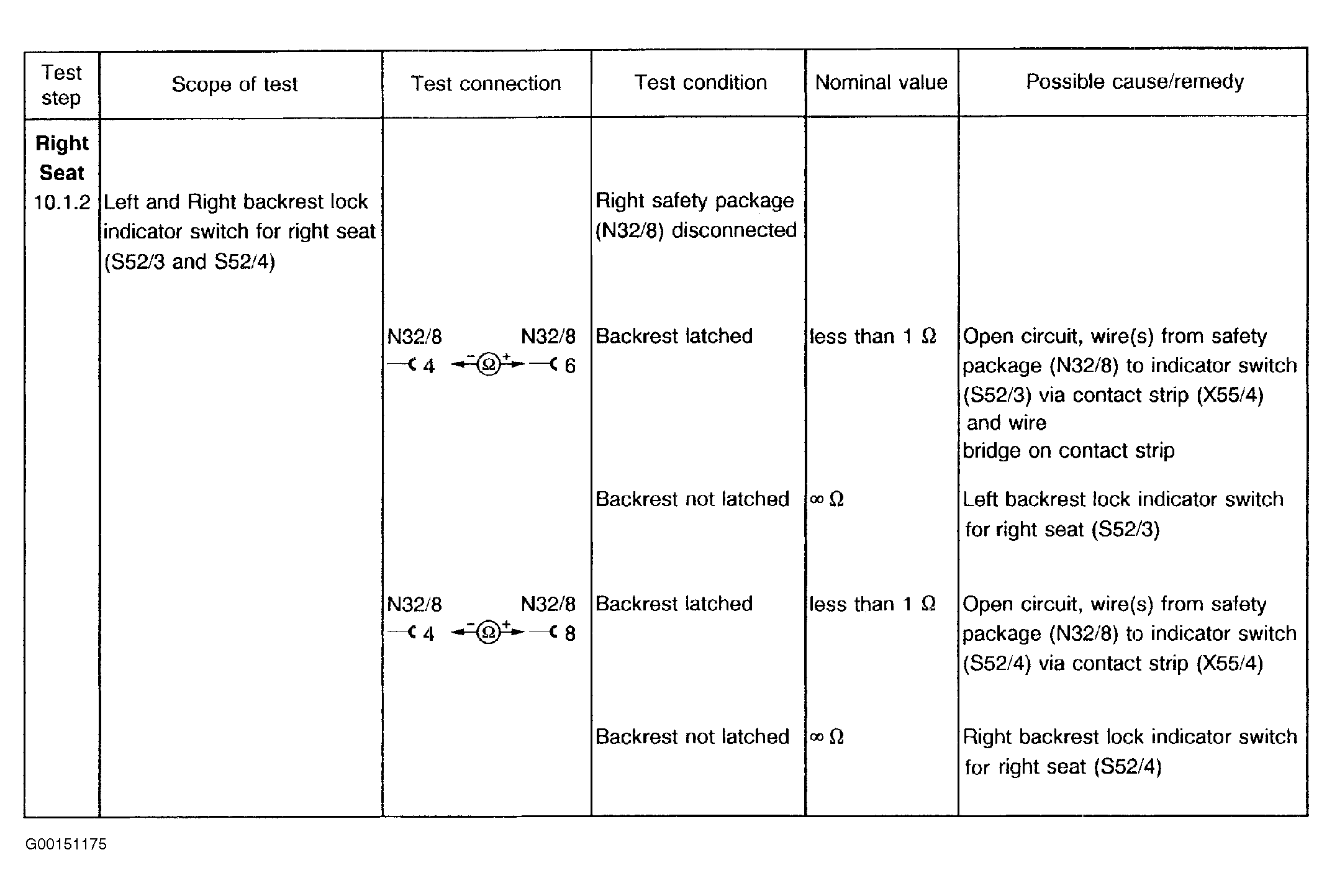

Fig 41: Test Step 10.1.2

G00151175

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

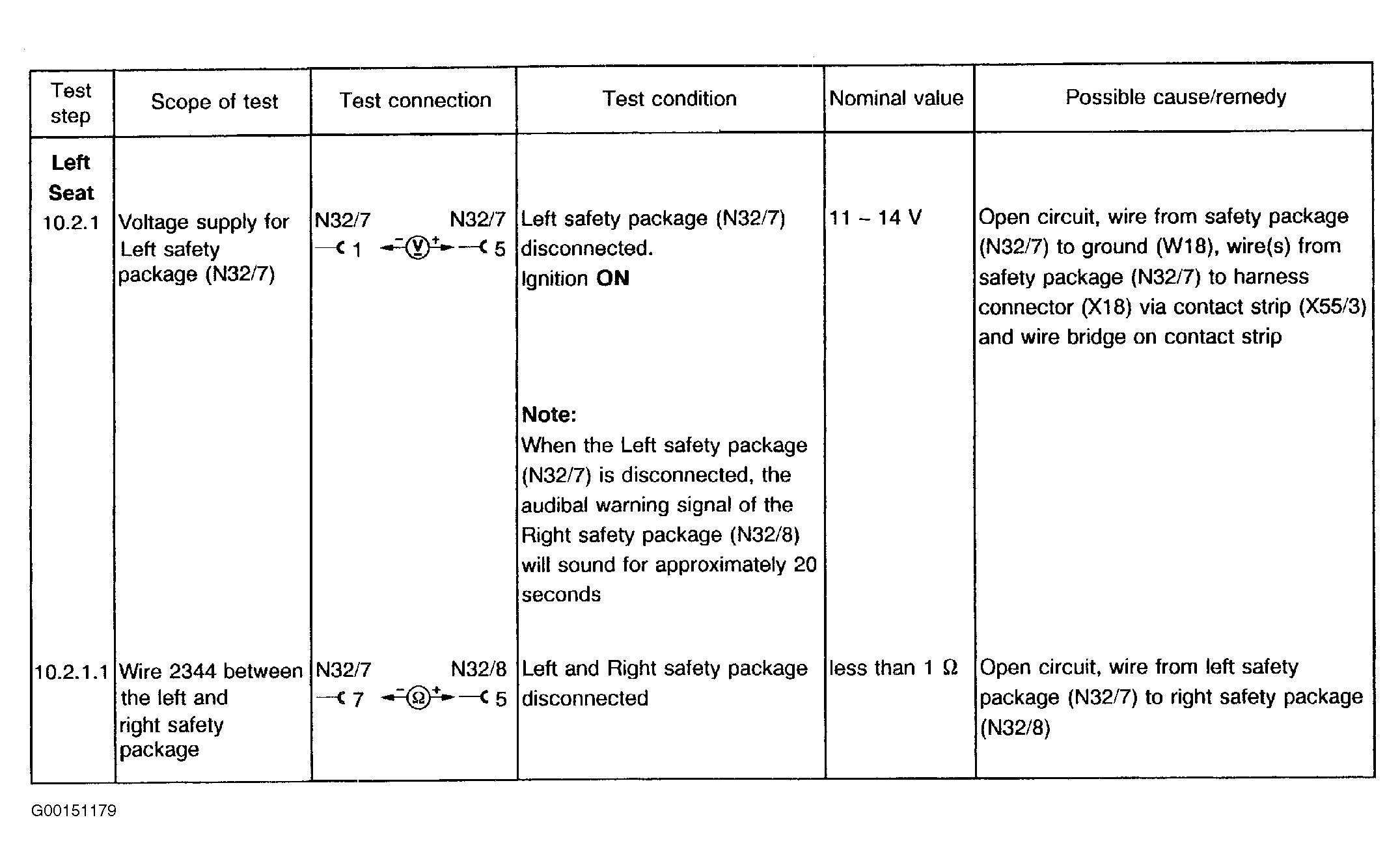

Fig 42: Test Steps 10.2.1 & 10.2.1.1

G00151179

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

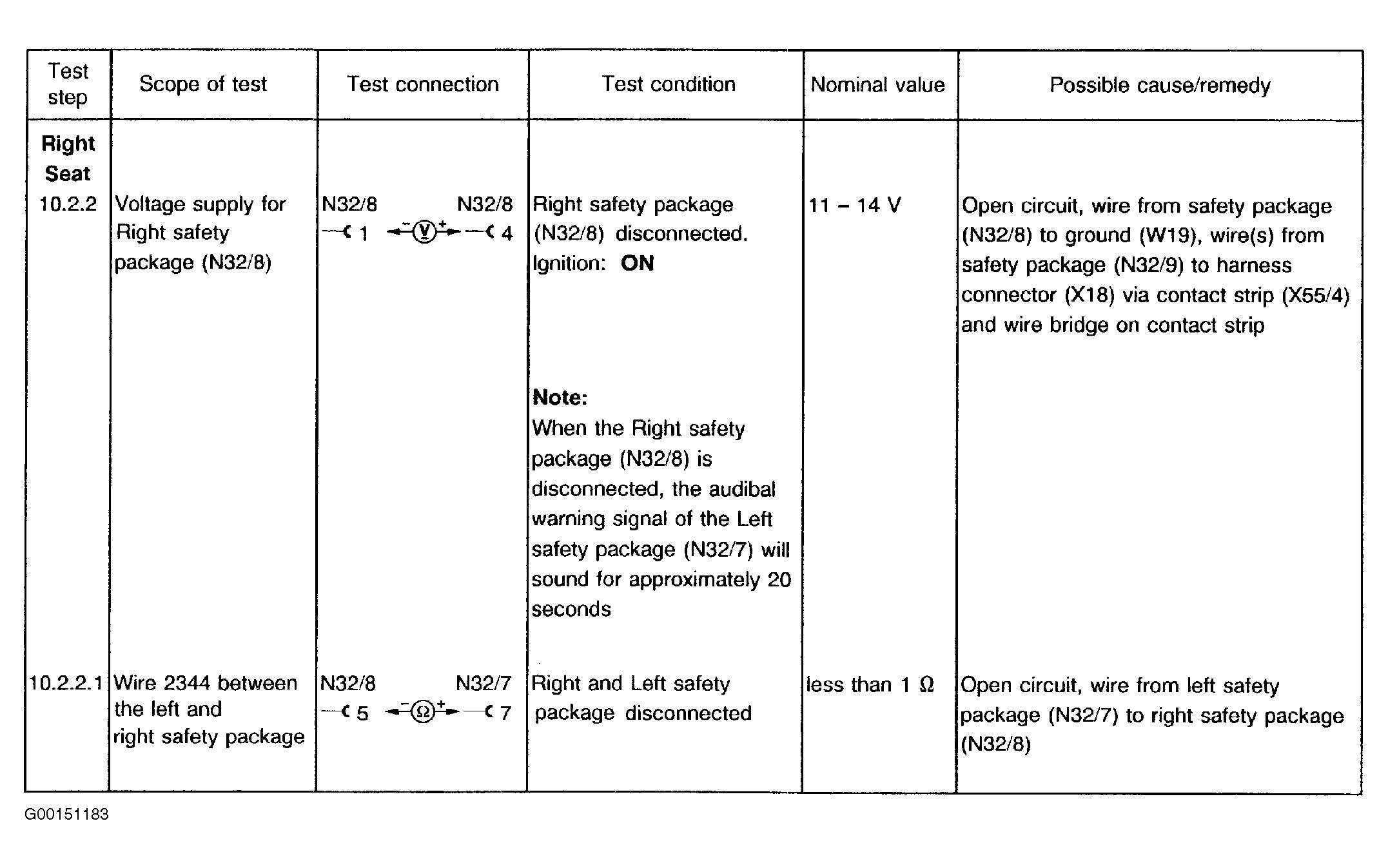

Fig 43: Test Steps 10.2.2 & 10.2.2.1

G00151183

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

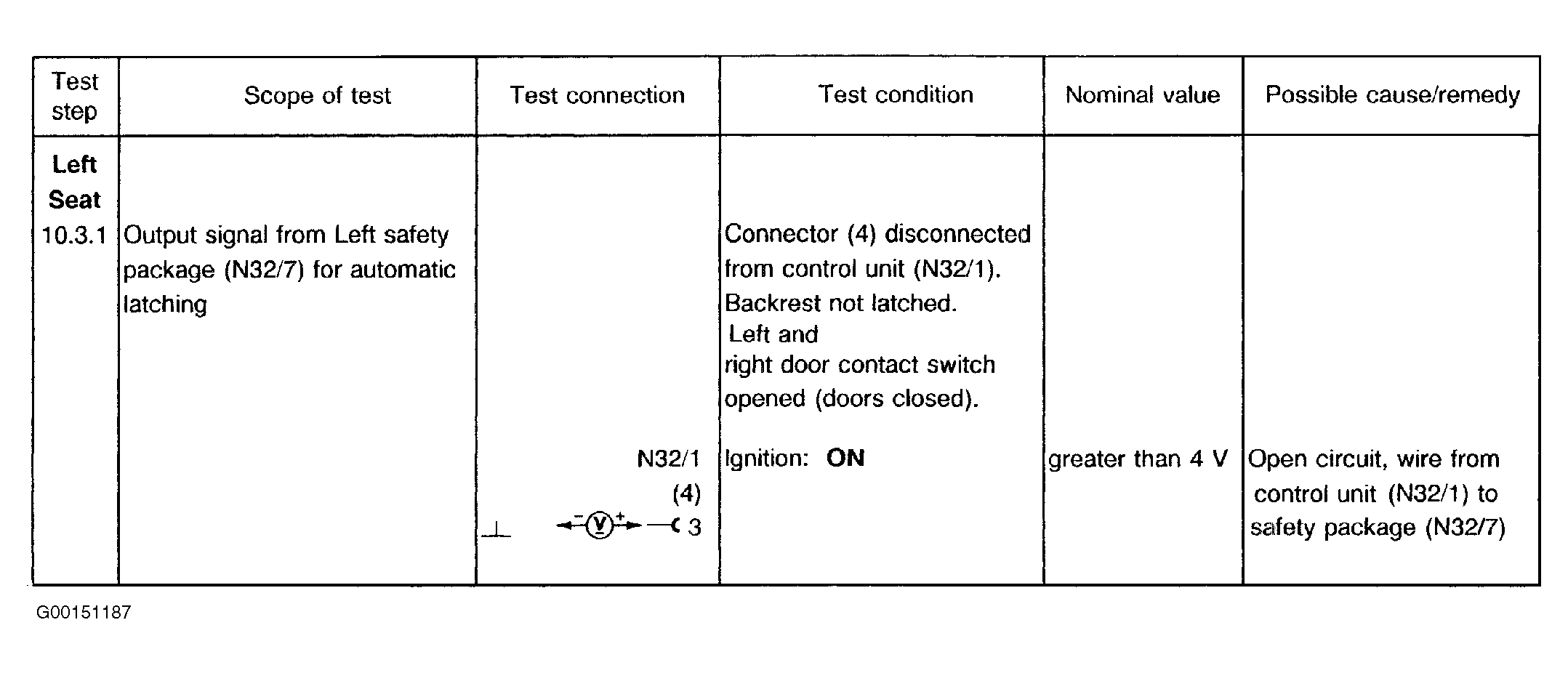

Fig 44: Test Step 10.3.1

G00151187

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

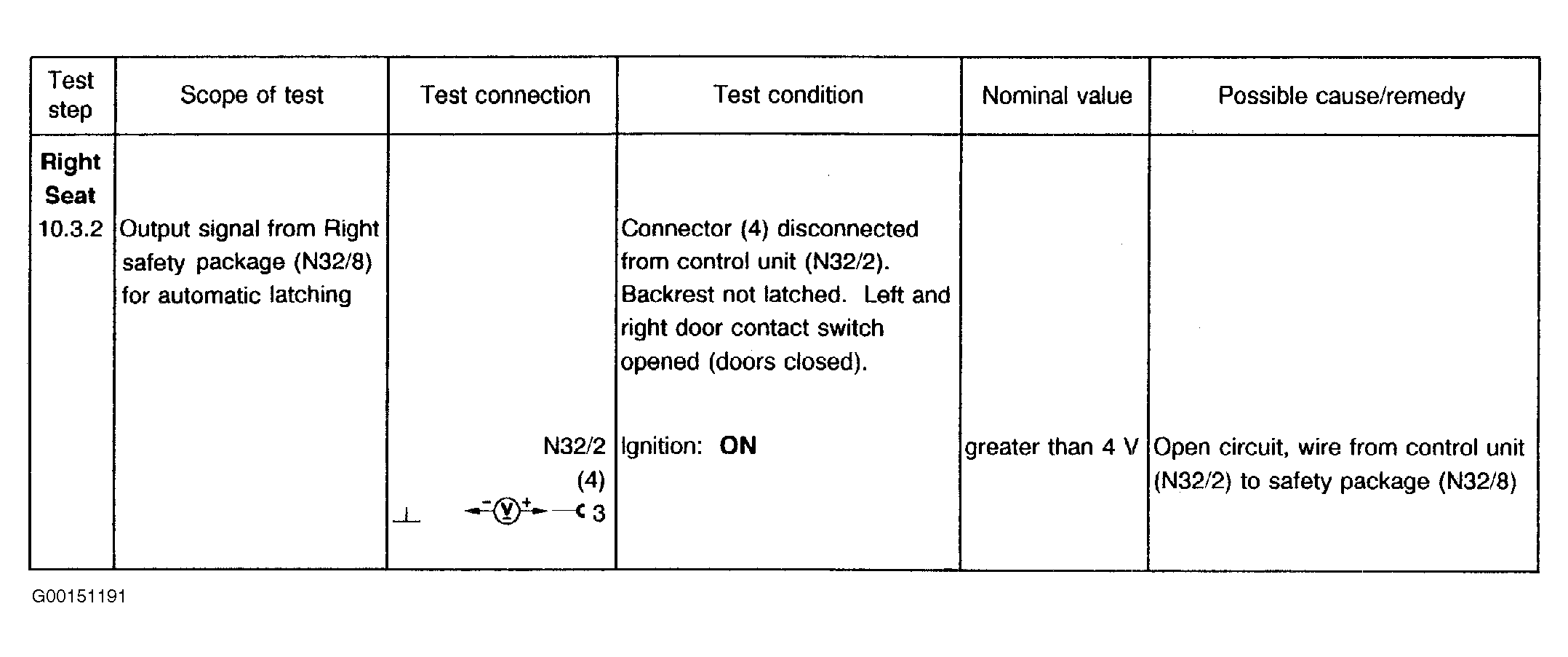

Fig 45: Test Step 10.3.2

G00151191

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 46: Test Step 10.4.1

G00151195

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 47: Test Step 10.4.2

G00151199

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

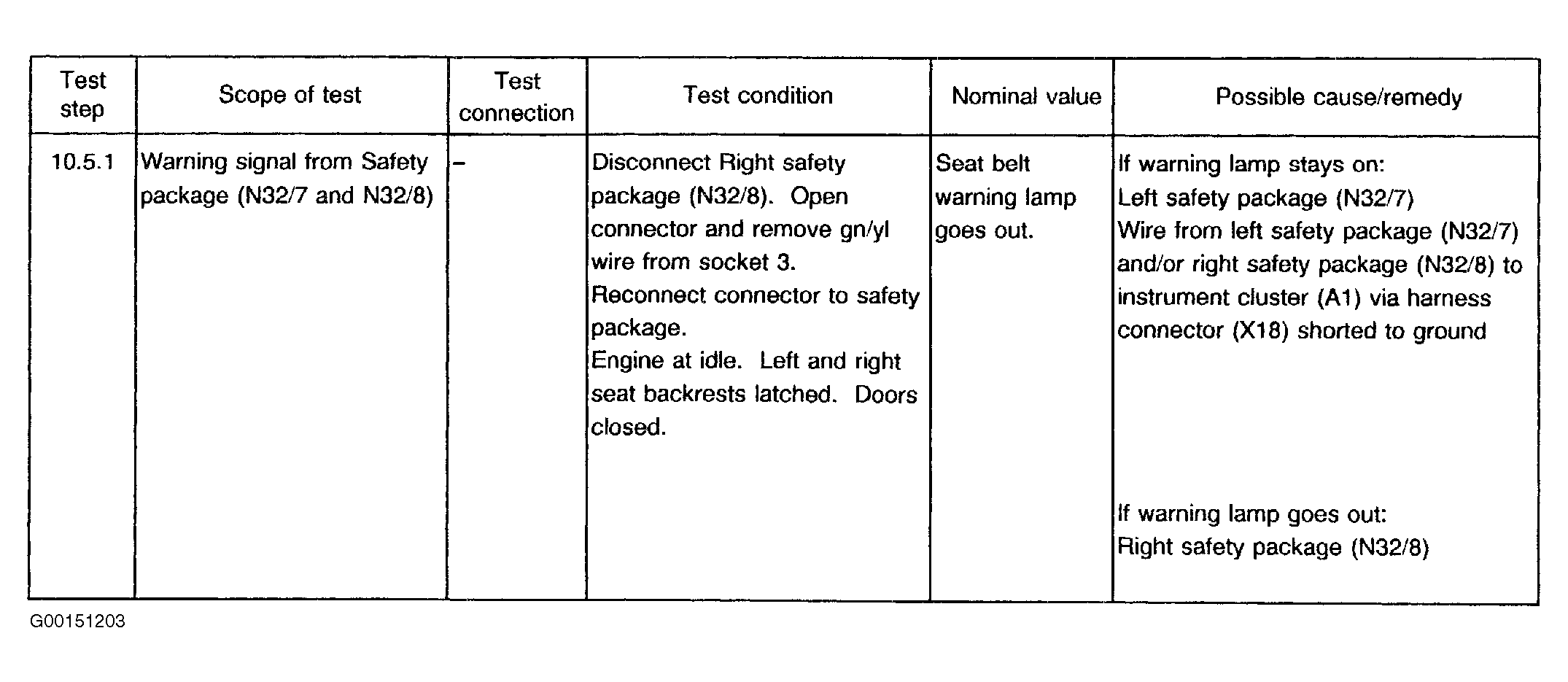

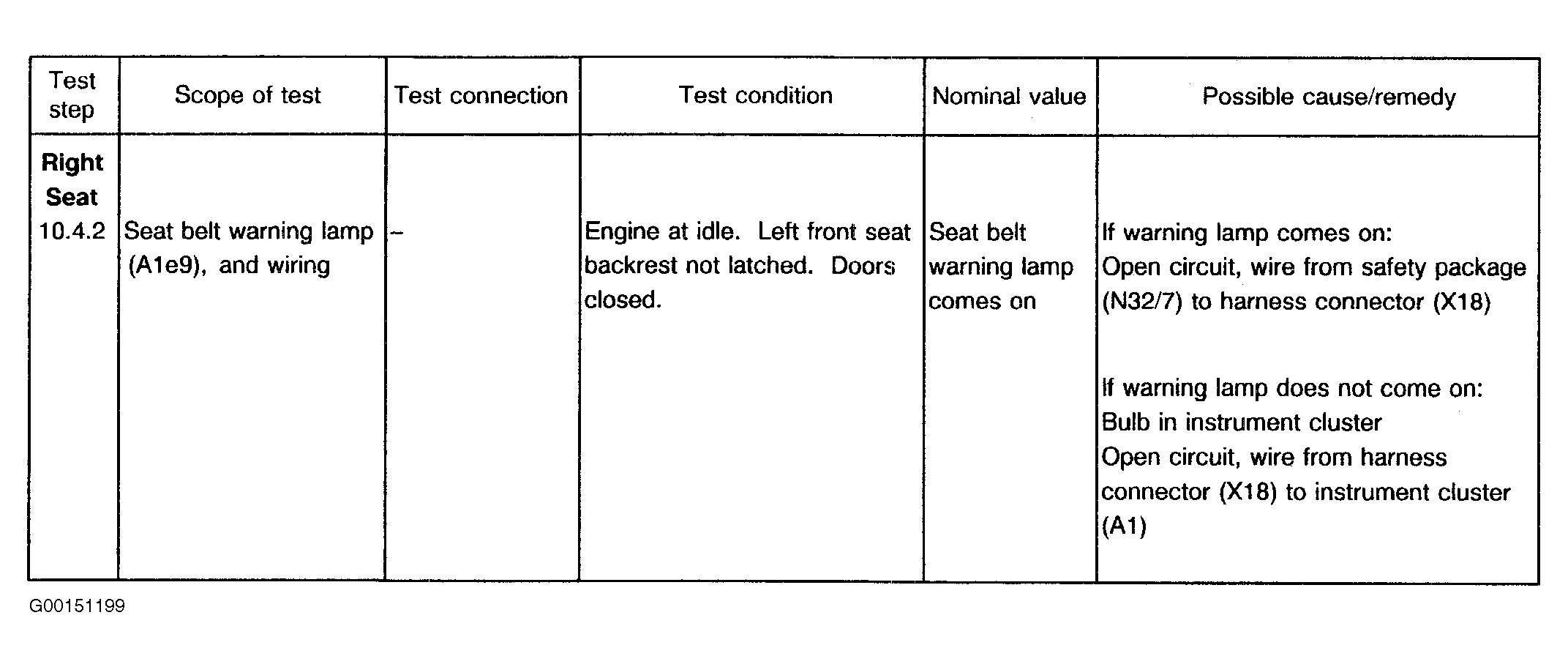

Fig 48: Test Step 10.5.1

G00151203

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

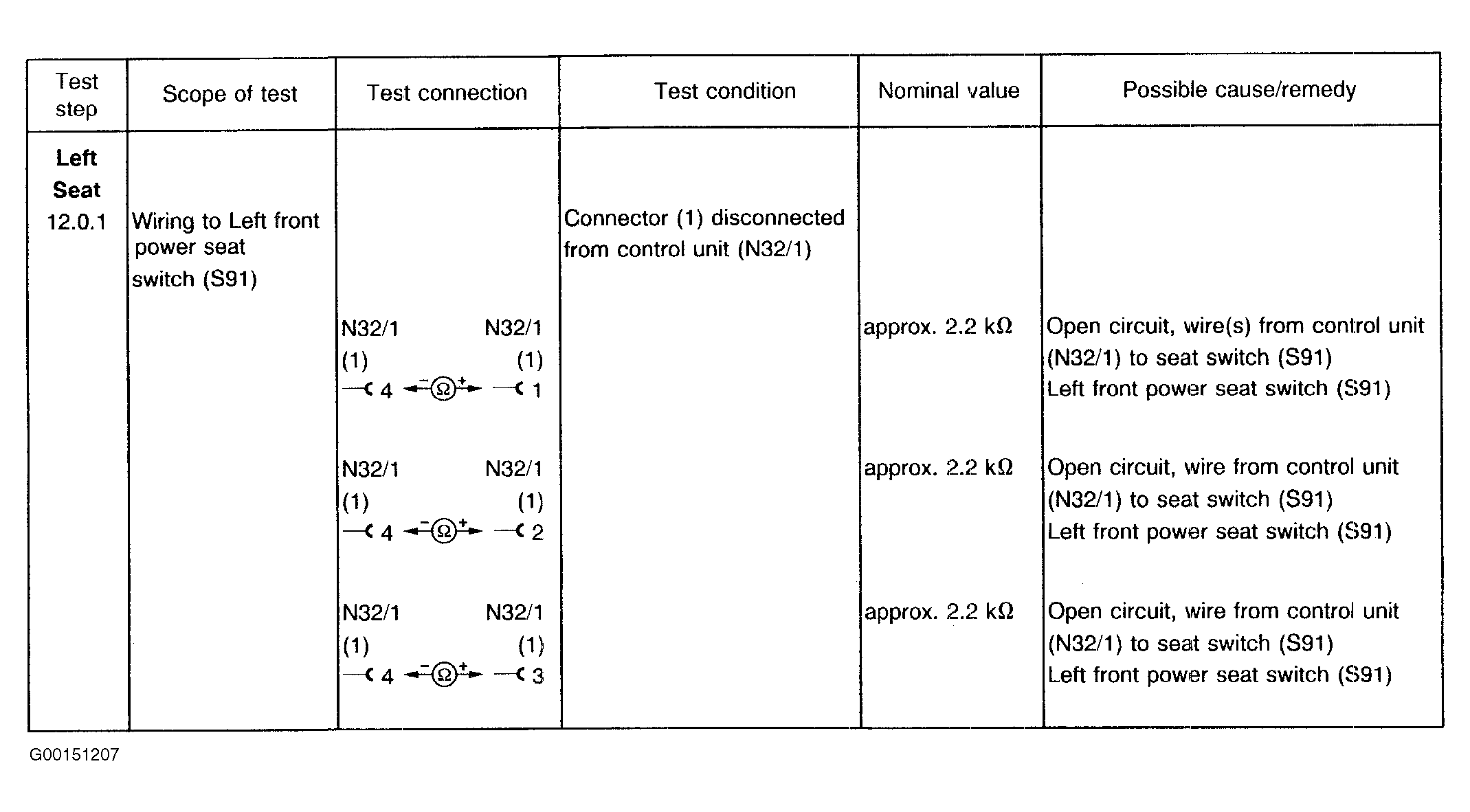

Fig 49: Test Step 12.0.1

G00151207

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 50: Test Step 12.0.2

G00151211

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
