Connector Identification (Section 22)

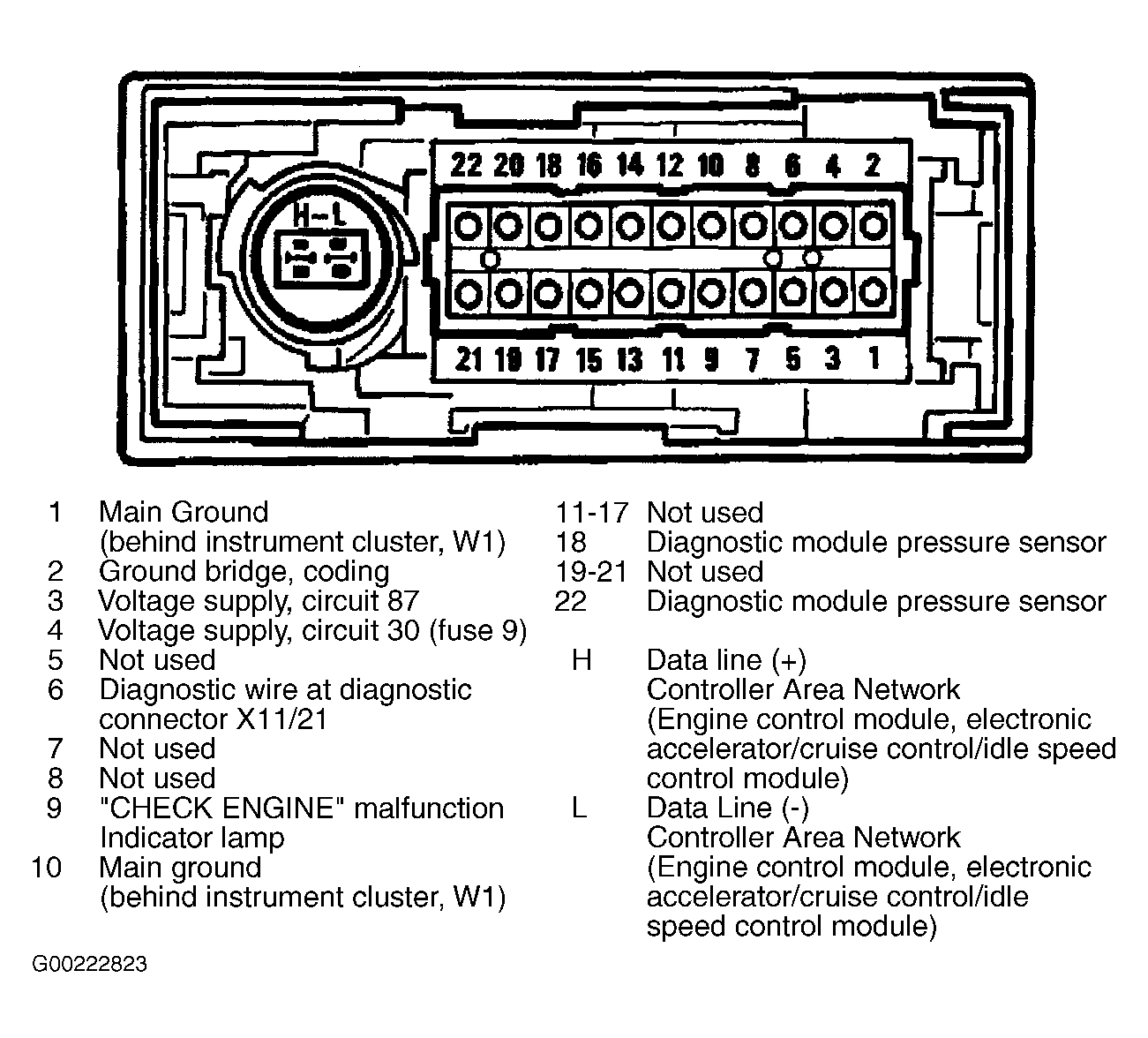

Fig 1: Diagnostic Module Connector Pin Identification
G00222823Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
