Diagnostic Trouble Code Memory (Section 11)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS .

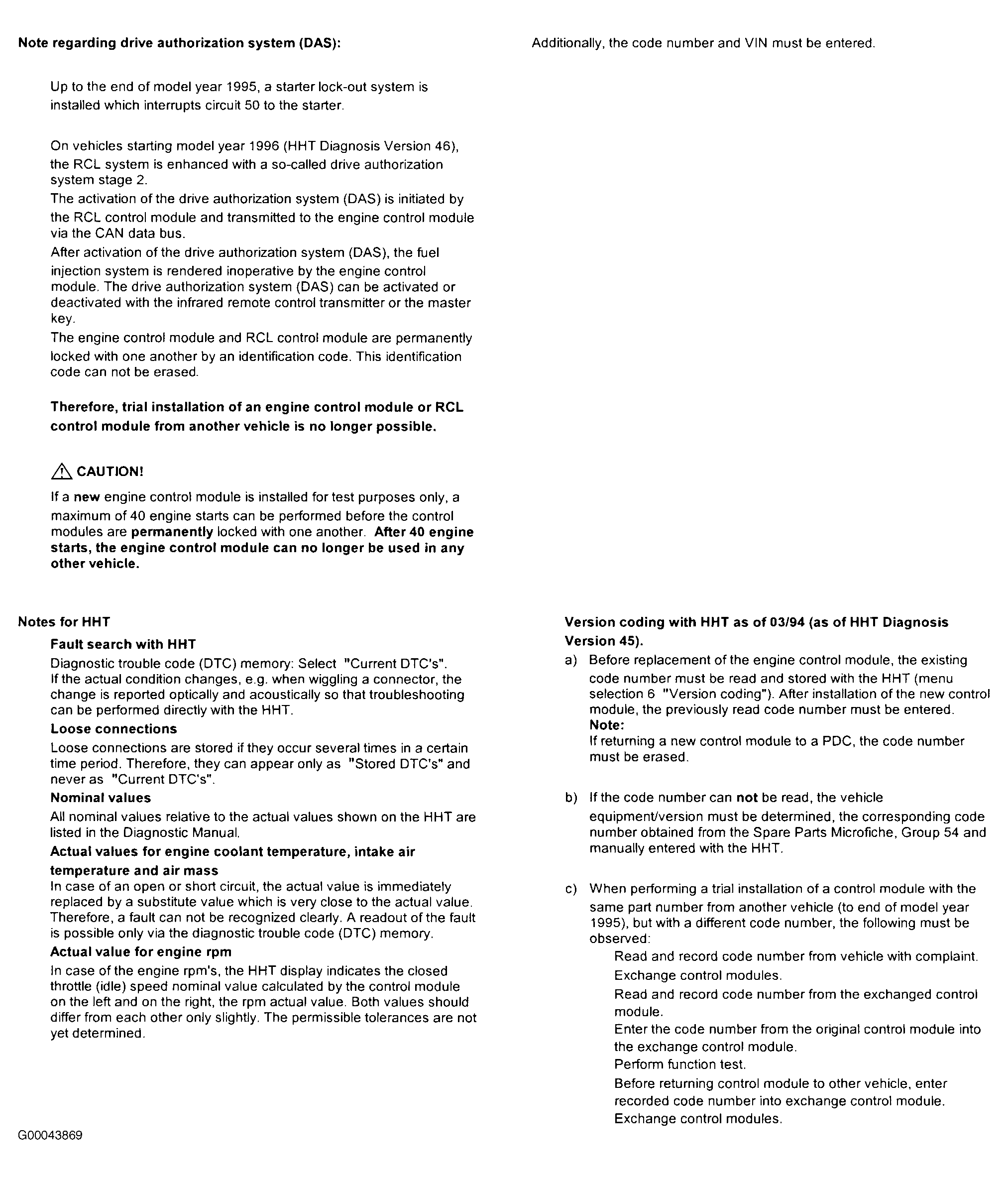

Fig 1: Diagnostic Trouble Code Memory - Section 11 (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Diagnostic Trouble Code Memory - Section 11 (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Diagnostic Trouble Code Memory - Section 11 (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

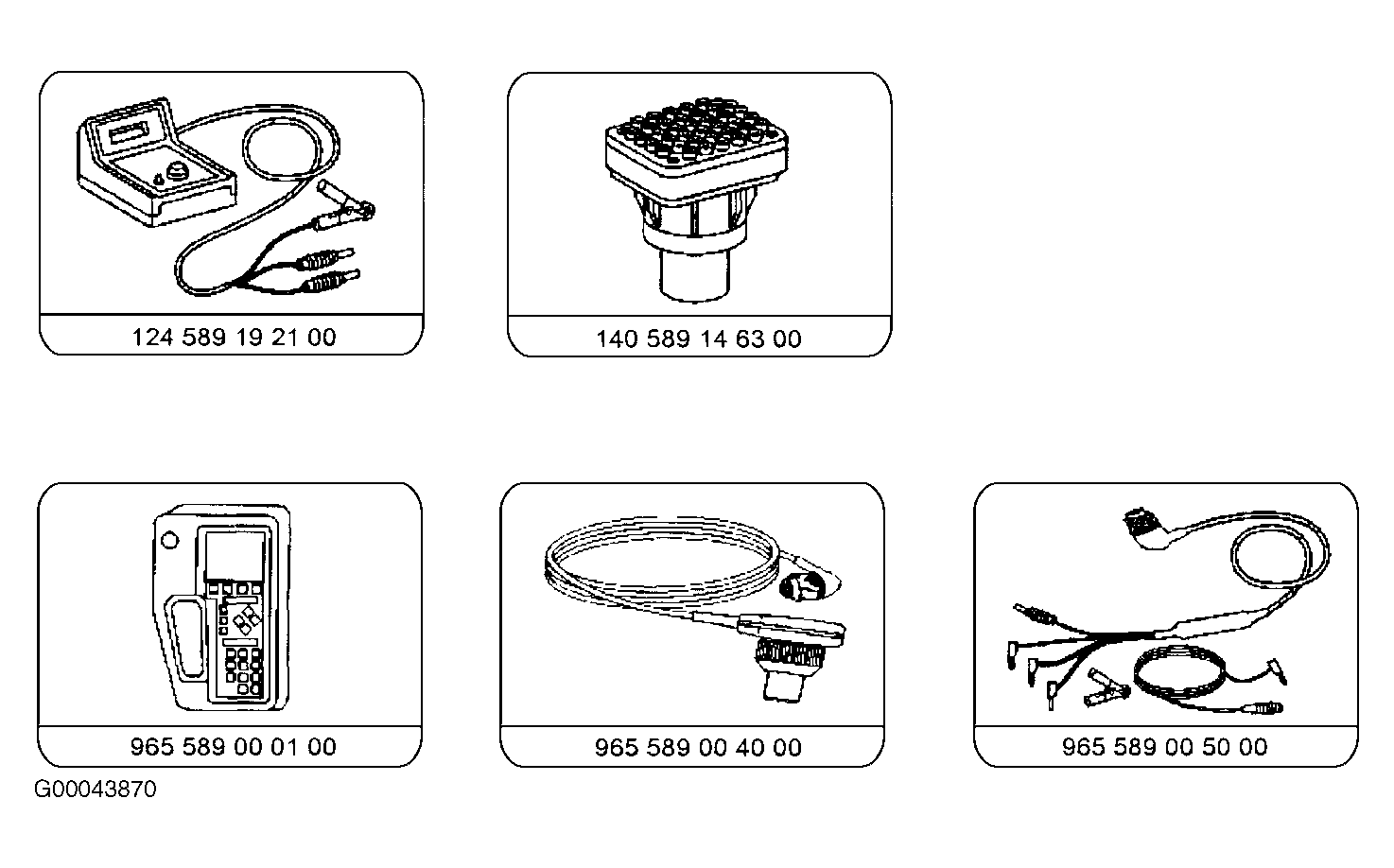

Fig 4: Diagnostic Trouble Code Memory - Section 11 (Special Tools)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

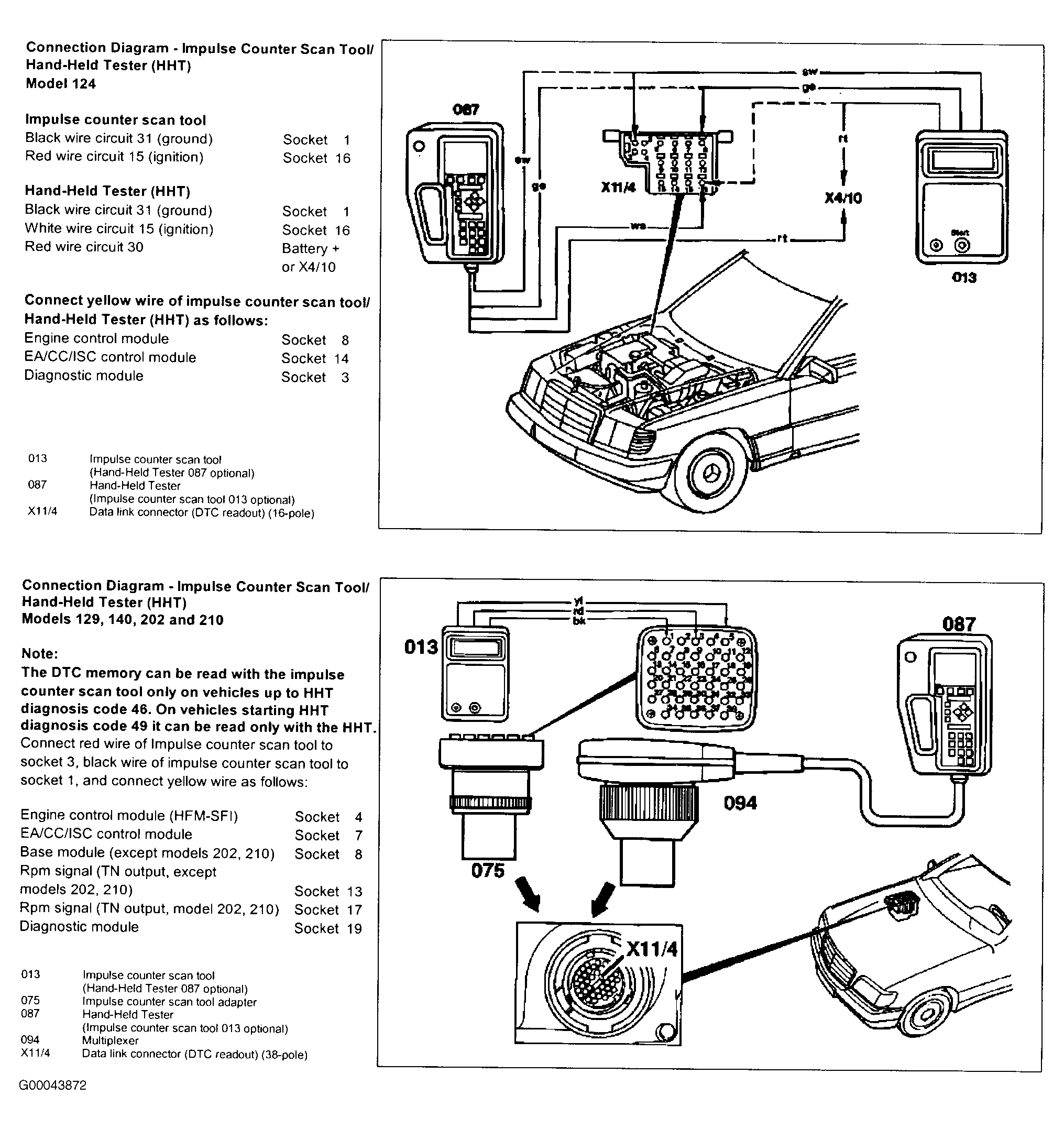

Fig 5: Diagnostic Trouble Code Memory - Section 11 (Connection Diagrams)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
