Preglowing function - GF15.20-P-3000HB

ENGINE 604.910 in MODEL 202.121 as of 1.8.96, 202.182

ENGINE 604.912 in MODEL 210.004 as of 1.6.96

ENGINE 604.915 in MODEL 202.122 /180

ENGINE 604.917 in MODEL 210.003

ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188

ENGINE 605.912 in MODEL 210.010 /210 /610

ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025/225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

Shown on model 202

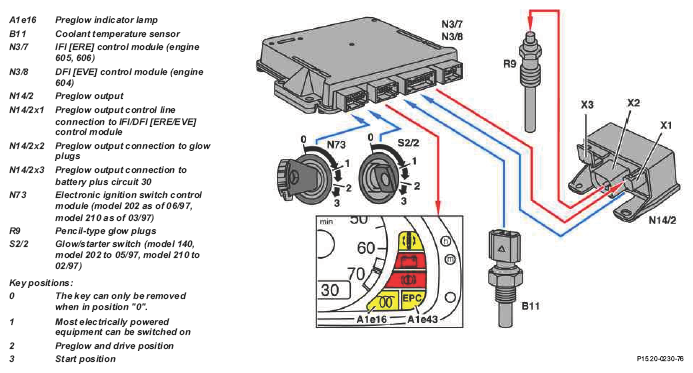

Fig 1: Identifying Preglowing Function Components (Shown On Model 202)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

Preheating combustion chamber in order to achieve the necessary ignition temperature for fuel-air mixture.

Function

Turning on the glow/starter switch (S2/2 position 2) actuates the glow output stage (N14/2) and illuminates the preglow indicator lamp (A1e16) via the IFI [ERE] control module (N3/7) or the DFI [EVE] control module (N3/8). The preheating time is calculated by the IFI [ERE] control module (N3/7) or the DFI [EVE] control module (N3/8) in accordance with the coolant temperature. The glow output stage (N14/2) completes the circuit to the pencil-type glow plugs (R9).

Glow output stage location/design/task/function		GF15.20-P-2100C
Glow plugs design/task/function		GF15.20-P-3101H
Coolant temperature sensor location/task/ design/function		GF07.04-P-5026C
Electronic ignition switch (EIS) control module location/task/design/function	Model 202 as of 06/97 Model 210 to 03/97	GF80.57-P-4102A
DFI [EVE] control module input signals/output signals/location/task/function	Engine 604	GF07.13-P-3102HA
IFI [ERE] control module location/task/function	Engine 605, 606	GF07.12-P-3102HA
