Diagnostic Module Pressure Sensor

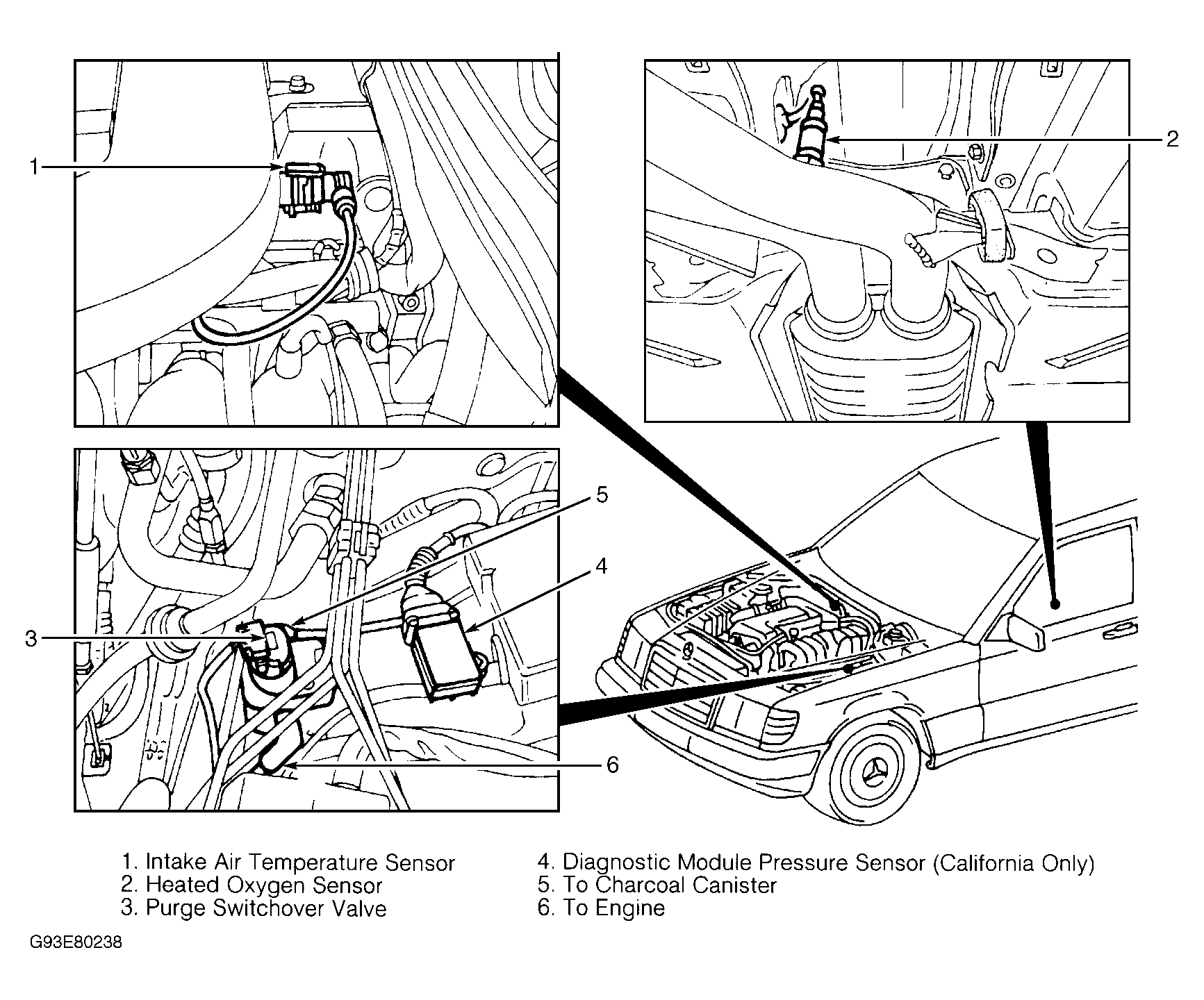

The diagnostic module pressure sensor is located in left rear corner of engine compartment. See Figure . The diagnostic module pressure sensor senses intake manifold absolute pressure. The diagnostic module pressure sensor converts pressure value to a voltage signal and sends it to the diagnostic module.
