Preglow system function - GF15.20-P-0001HC

ENGINE 604.910 in MODEL 202.121 as of 1.8.96, 202.182

ENGINE 604.912 in MODEL 210.004 as of 1.6.96

ENGINE 604.915 in MODEL 202.122 /180

ENGINE 604.917 in MODEL 210.003

ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188

ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210/610

ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025/225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

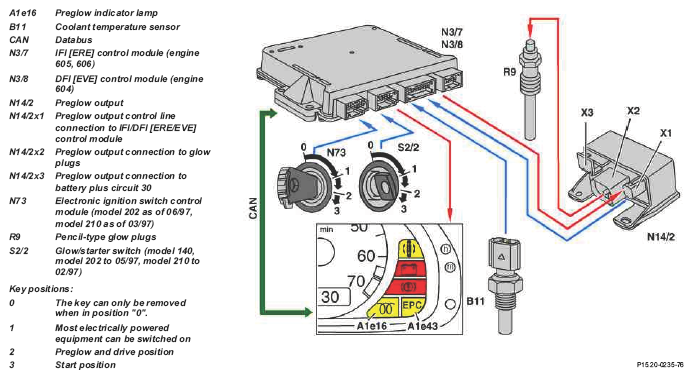

Fig 1: Identifying Preglow System Function Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

Preheating combustion chamber in order to achieve the necessary ignition temperature for fuel-air mixture.

Combustion chamber preheating is subdivided into:

Safety shut-off

The safety shut-off cuts off power to the glow plugs if no start occurs within 20-25 seconds after start readiness is indicated.

Fault indication

A fault in the preglow system is indicated by the failure of the preglow indicator lamp (A1e16) to illuminate when the key is turned to position "2".

Preglowing function		GF15.20-P-3000HB
Startglowing function		GF15.20-P-3003HB
Afterglowing function		GF15.20-P-3001HB
Glow output stage location/task/design/function		GF15.20-P-2100C
Glow plugs location/task/design/function		GF15.20-P-3101H
Coolant temperature sensor location/task/ design/function		GF07.04-P-5026C
Electronic ignition switch control module location/task/design/function	Model 202 as of 06/97 Model 210 to 03/97	GF80.57-P-4102A
DFI [EVE] control module location/task/function	Engine 604	GF07.13-P-3102HA
IFI [ERE] control module location/task/function	Engine 605, 606	GF07.12-P-3102HA
CAN databus function		GF54.00-P-0005HA
