Crankshaft position sensor location/task/design/function - GF07.04-P-4116H
ENGINE 604.910 in MODEL 202.121 /182
ENGINE 604.912 in MODEL 210.004
ENGINE 604.915 in MODEL 202.122 /180
ENGINE 604.917 in MODEL 210.003
ENGINE 605.910 in MODEL 202.125
ENGINE 605.912 in MODEL 210.010 /210 /610
ENGINE 606.912 in MODEL 210.020
ENGINE 602.982 in MODEL 210.017 /217 /617
ENGINE 606.961 in MODEL 140.135
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 605.960 in MODEL 202.128 /188
ENGINE 605.962 in MODEL 210.015 /215

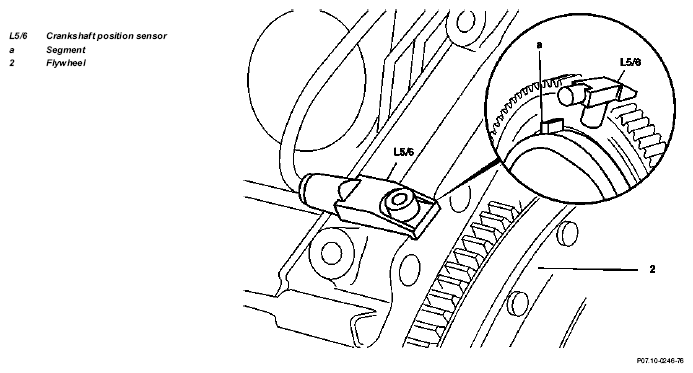

Located above the starter on the left when looking in the direction of travel.
| Crankshaft position sensor task | To detect the position and speed of the crankshaft through non-contact measurements using the segments provided on the drive plate or the flywheel and to supply the corresponding signals to the IFI [ERE] control module (N3/7) or the DFI [EVE] control module | ||
| Crankshaft position sensor design | To 11/94 | GF07.04-P-4116-03HA | |
| As of 12/94 | GF07.04-P-4116-03HB | ||
| Crankshaft position sensor function | To 11/94 | GF07.04-P-4116-01HA | |
| As of 12/94 | GF07.04-P-4116-01HB |
