Fuel injector, location/task/design/function - GF07.03-P-5004F

ENGINE 104 (except 104.98)

ENGINE 111

ENGINE 112 (except 112.96)

ENGINE 113 (except 113.99)

ENGINE 119 (except 119.96)

ENGINE 120

ENGINE 137

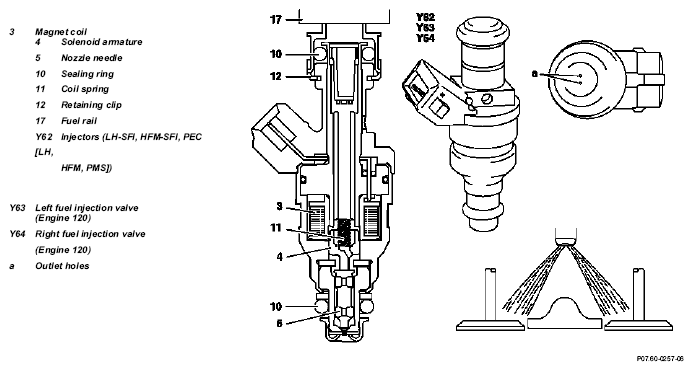

Structure (the engines shown are engines 119,120) 3 Magnet coil

Fig 1: Identifying Fuel Injector Function - Shown Are Engines 119, 120

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The diameter and number of the outlet bore holes are adjusted to the fuel requirements of the engine.

	Fuel injector, location	At cylinder head
	Fuel injector, task	Spraying the fuel onto the injectors in the form a finely atomized spray
	Fuel injection valve structure/function	When energizing the magnet coil (3) the nozzle needle (5) is lifted above the solenoid armature (4) against the coil spring (11) by approx. 0.1 mm and the fuel flows out of the holes. Actuation of the fuel injection valves occurs over correspondingly long earth impulses from the engine control unit, power supply from terminal 87.
