Inline injection pump location/task/function - GF07.02-P-5001H
ENGINE 605.910 in MODEL 202.125
ENGINE 605.960 in MODEL 202.128 /188
ENGINE 605.912 in MODEL 210.010 /210 /610
ENGINE 606.912 in MODEL 210.020
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215

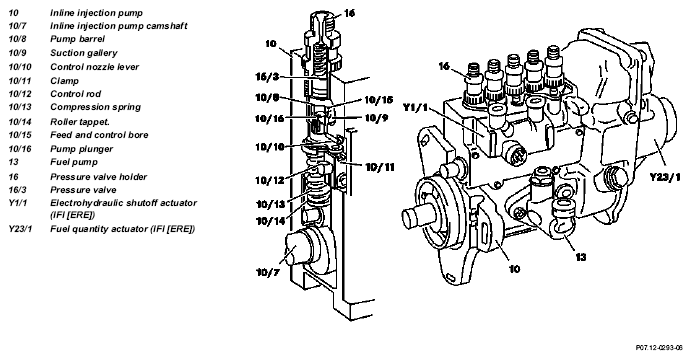

Shown on engine 605
Task
- To generate injection pressure
- To regulate the amount of fuel for injection
Function
The fuel pump (13) delivers fuel to the suction gallery of the inline injection pump (10). On the pump plunger downstroke fuel flows from the suction gallery via the feed and control bore (10/15) into the pump barrel (10/8). Driven by the camshaft (10/7), the pump plunger (10/16) delivers the fuel via the pressure valve (16/3) and the injection line to the injector nozzle.
With its delivery stroke completed, the pump plunger (10/16) is pushed back to its starting position by the compression spring (10/13). The spring-loaded pressure valve (16/3) simultaneously shuts off fuel supply to the injection line.
The pump barrel (10/8) and the pump plunger (10/16) together constitute what is called the pump element.
| Pressure valve location/task/design/function | GF07.05-P-5001H | ||
| Pump element task/design/function | GF07.02-P-5004H | ||
| IFI [ERE] injected quantity control location/task/ design/function | GF07.12-P-3137H | ||
| IFI [ERE] inline injection pump lubrication function | GF07.12-P-3138H | ||
| IFI [ERE] electrohydraulic shut-off actuator location/task/design/function | GF07.12-P-3133H | ||
| IFI [ERE] fuel pump location/task/function | GF07.12-P-3120H | ||
| Overflow restrictor location/task/design/function | GF07.05-P-5000H | ||
| IFI [ERE] fuel quantity actuator location/task/function | GF07.12-P-3131H | ||
| Fuel rack position sensor location/task/design/function | GF07.04-P-5022H |
