Component Views, Fuse & Relay Box & CKP Sensor Signal

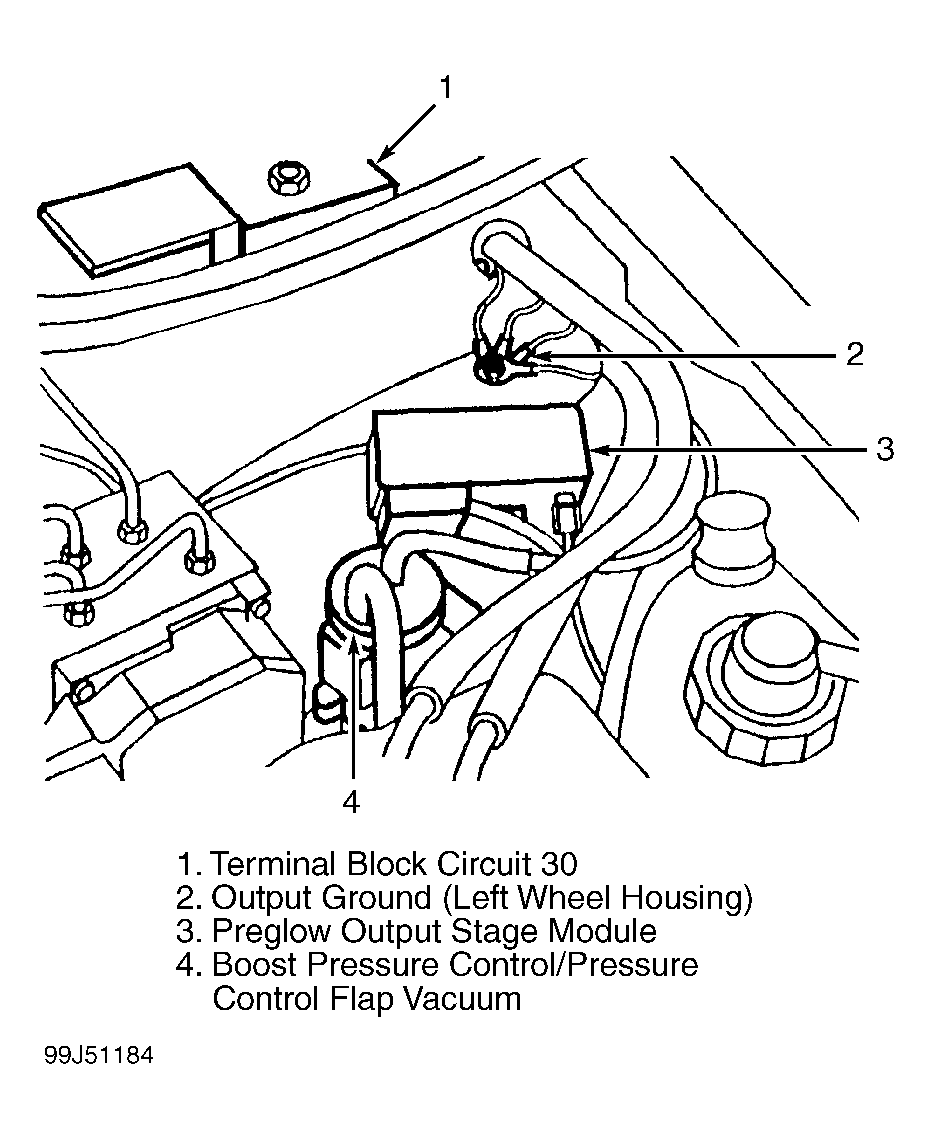

Fig 1: Left Rear Corner Of Engine Compartment

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

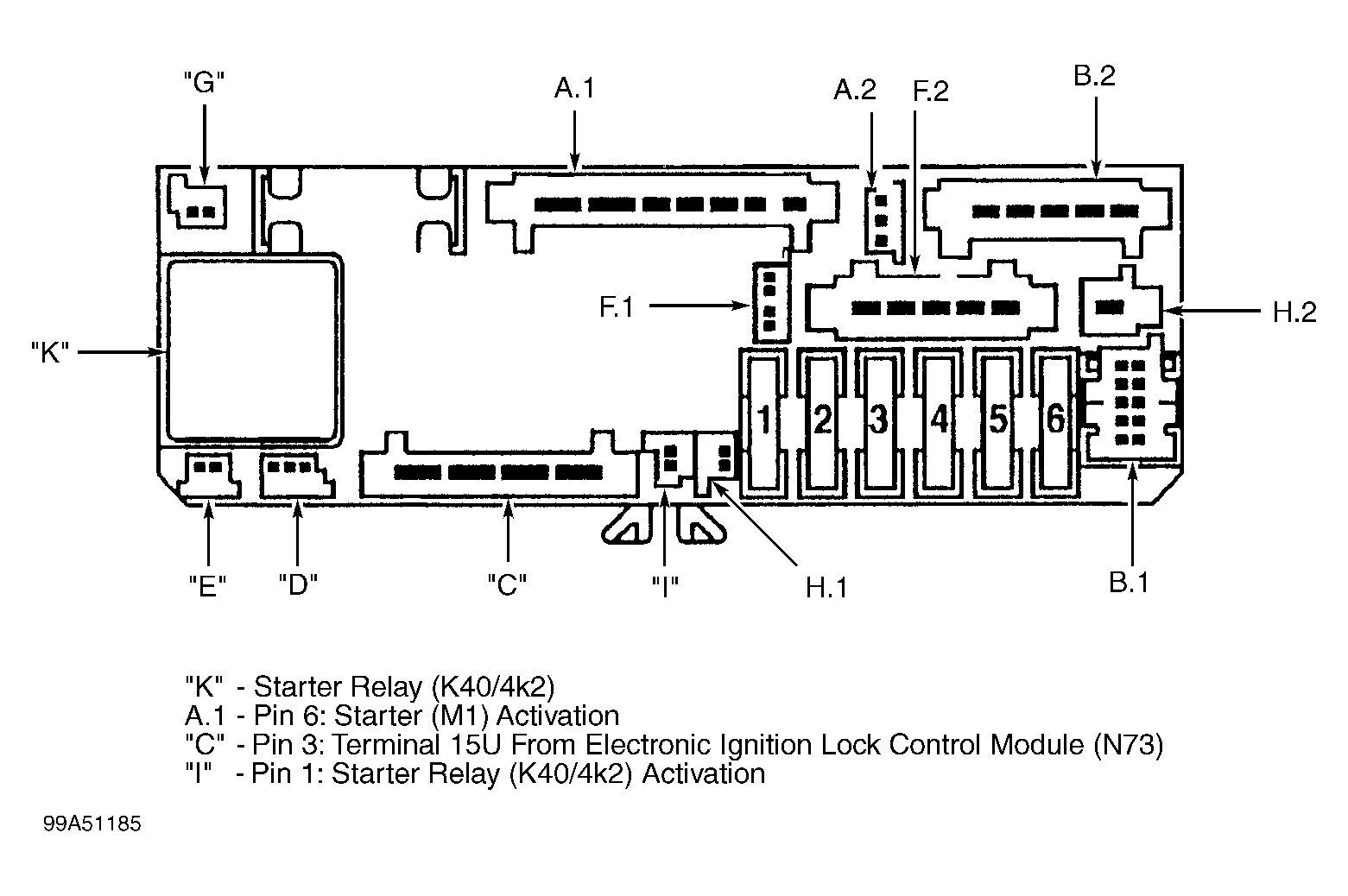

Fig 2: Passenger Side Fuse & Relay Module Box

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: CKP Sensor Signal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Boost Pressure Control/Pressure Control Flap Vacuum Transducer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

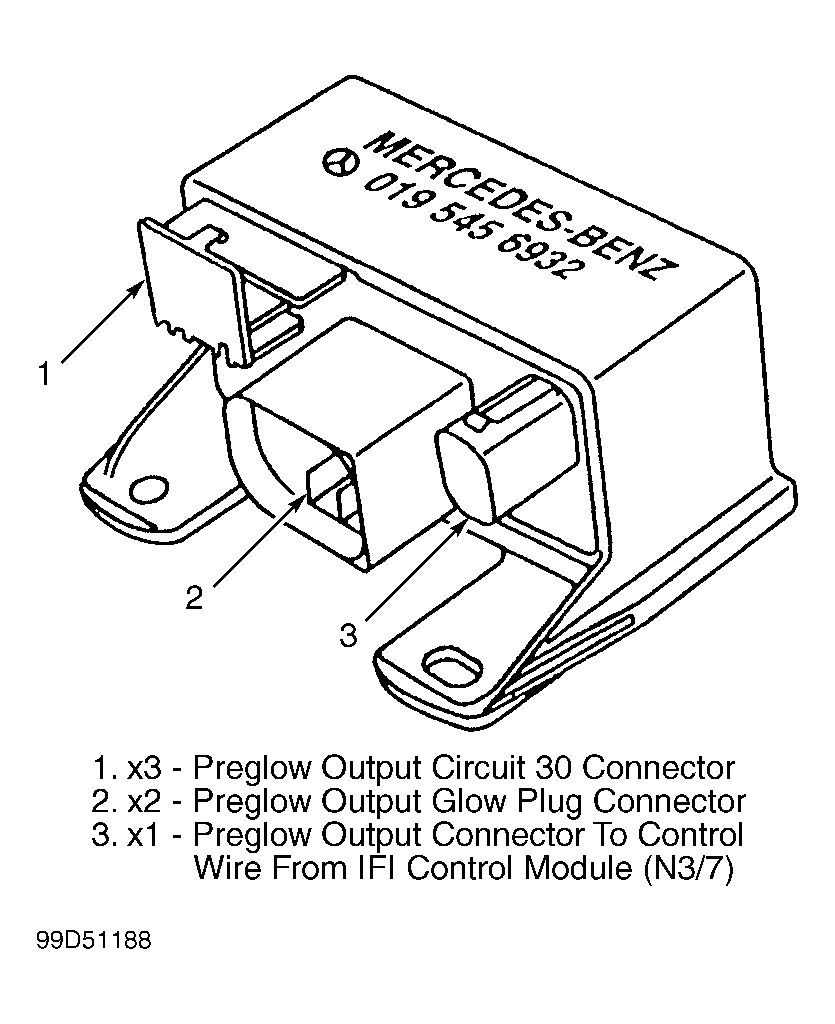

Fig 5: Preglow Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
