Operating and display unit with control module location/task/design/function - GF82.85-P-3114E

MODEL 208, 210 with CODE (352a) COMAND operating and display system

Shown model as of 09/00, new key assignments

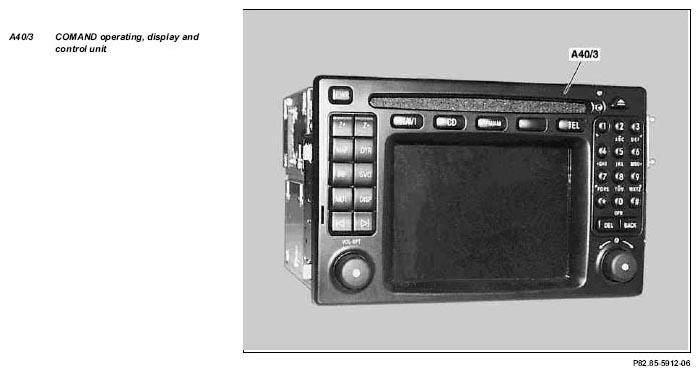

Fig 1: Identifying Operating And Display Unit With Control Module Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

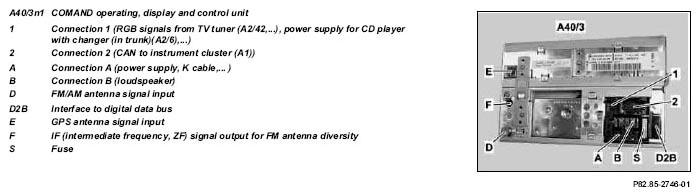

Fig 2: Identifying FM/AM Antenna Signal Input And Interface To Digital Data Bus

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Operating/display unit with control module, location	The COMAND operating, display and control unit (A40/3n1) is in the center console.	GF82.85-P-3114-05E
Operating/display unit with control module, task	Central control of following systems: Radio, CD player and CD changer (optional) Sound system (optional) Navigation system Telephone (optional) Television (TV) (optional)
Operating/display unit with control module, design		GF82.85-P-3114-07B
Display/operating unit with control module, function	Without code 498 (Japanese version)	GF82.85-P-3114-08D
	With code 498 (Japanese version)	GF82.85-P-3114-08F
