Infrared remote control for central locking (RCL), function - GF80.30-P-0004A
MODEL 129, 140 as of 1.6.96, 210 (except 210.2) as of 1.6.96 up to 28.2.97 except CODE (491)
MODEL 170, 210.2 (except 210.281) up to 28.2.97 except CODE (491)
MODEL 210.072 up to 31.5.96 with CODE (491) U.S. version
MODEL 202 (except 202.083) as of 1.8.96 up to 31.5.97 except CODE (491)
MODEL 202.083 up to 31.5.97 except CODE (491)

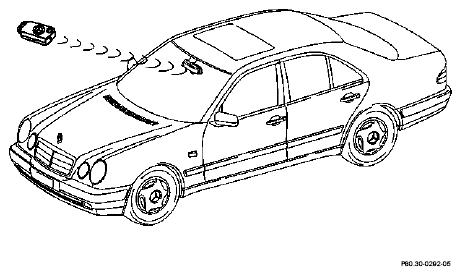

Illustrated on model 210 sedan
When the IR remote control key is actuated an infrared signal is transmitted. If this infrared signal is recognized as valid by the DAS infrared control module, the latter actuates the pneumatic system equipment (PSE) locking or unlocking the vehicle via the central locking.
| Unlocking vehicle, function | GF80.30-P-3000A | ||
| Locking vehicle, function | GF80.30-P-3001A | ||
| Disabling remote control keys, function | GF80.30-P-3003A |
