Open trunk lid with transmitter key function - GF80.20-P-3010A
MODELS 202 as of 1.6.97, 208, 210.081 (except 208.4), 210 (except 210.2 /081) as of 1.3.97

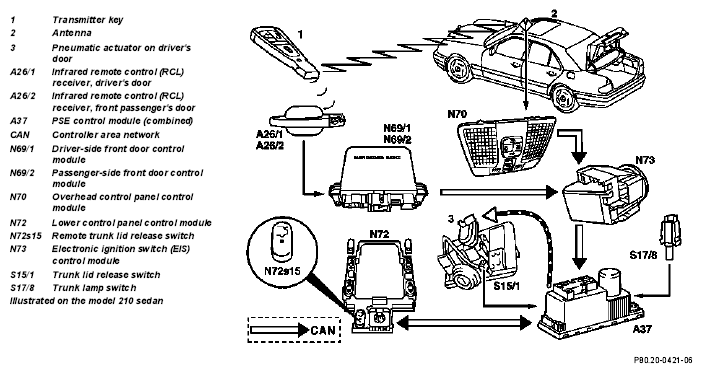

Trunk lid remote control networking
When the "Open trunk lid" button is pressed, the transmitter key sends a radio and infrared signal to the relevant receivers in the vehicle. These receive the signal and transmit its content in the form of a CAN message to the electronic ignition switch (EIS) control module (N73) . The EIS verifies the access authorization code. If the test reveals that the code is valid, then the EIS sends a command to open the trunk lid over the CAN to the pneumatic system equipment (PSE), combination functions (A37) . The PSE opens the trunk lid pneumatically , if the trunk lock has not been locked through the lock cylinder being set to the 90° position.
| Transmit remote control signal | GF80.20-P-4010A | ||
| Receive remote control signal | GF80.20-P-4011A | ||
| Open trunk lid pneumatically | GF80.20-P-4016A | ||
| Pneumatic system equipment (PSE) | GF80.20-P-4106A | ||
| Electronic ignition switch (EIS) control module | GF80.57-P-4102A | ||
| Transmitter key | GF80.57-P-4101A | ||
| Trunk lid lock | GF80.20-P-4103A |
