Engine oil information function - GF07.61-P-3026G

ENGINE 104.941,104.943 /944 /991 /994 as of 1.8.96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model Year 97 Japanese version

ENGINE 111.943 /944 /947 /952 /956 /958 /973 /983,111.975 as of 1.8.96,111.946 as of 1.6.98,111.921 /942 as of 1.9.98

ENGINE 111.945

in MODELS 208.335 /435 as of 1.6.98,

202.020 /080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 119.980 /981 /982 /985

ENGINE 120.982 /983

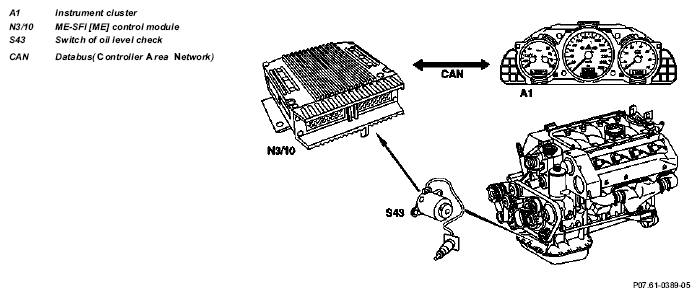

Fig 1: Identifying Instrument Cluster, Control Module And Databus

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Oil Level Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The display in the instrument cluster warns the driver that the oil level is too low

Oil level switch at oil pan shifts to ground. Contact opens if oil level is too low.

When inserting CAN capable instrument cluster, the information is transmitted via CAN from ME control module to the instrument cluster.

ME-SFI control module position / task / design / function		GF07.61-P-5000F
	Engine 111 EVO EURO3/4	GF07.61-P-5000GS
CAN databus, function		GF54.00-P-0005F
Oil level sensor location/task/function		GF18.40-P-4110A
