IFI electrohydraulic shutoff actuator location/task/design/function - GF07.12-P-3133H

ENGINE 605.910 in MODEL 202.125

ENGINE 605.960 in MODEL 202.128 /188

ENGINE 605.912 in MODEL 210.010 /210 /610

ENGINE 606.912 in MODEL 210.020

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

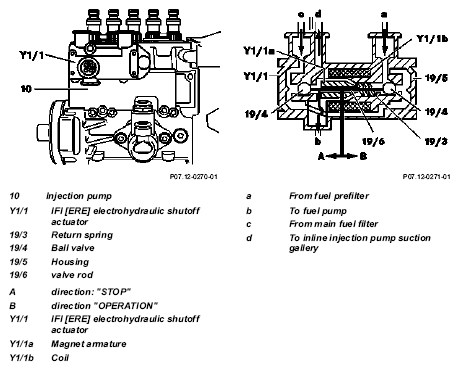

Fig 1: Identifying IFI Electrohydraulic Shutoff Actuator Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Fuel Temperature Sensor, Fuel Pump And Main Fuel Filter

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

IFI [ERE] electrohydraulic shutoff actuator location	At the suction gallery of the inline injection pump (10)
IFI [ERE] electrohydraulic shutoff actuator task	When the engine is turned off, the fuel pump extracts the fuel from the suction gallery of the inline injection pump (10) via the IFI (ERE) electrohydraulic shutoff actuator (Y1/1). To ensure fuel supply to the inline injection pump when the ignition is switched to "ON", during engine starts and while the engine is running
IFI [ERE] electrohydraulic shutoff actuator design	Consists of a housing (19/5) containing the magnet armature (Y1/1a), two ball valves (19/4), a valve rod (19/6), a return spring (19/3) and a fuel temperature sensor
IFI [ERE] electrohydraulic shutoff actuator function		GF07.12-P-3133-01H
