ME-SFI ignition ON function - GF07.61-P-3005F

ENGINE 104.941 /943 /944 /991 /994as of 1.8.96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98,

111.943,

111.944 as of 1.8.96,

111.946 as of 1.6.98,

111.947/973,

111.975 as of 1.8.96

ENGINE 111.945

in MODEL 208.335/435 as of 1.6.98,

202.020/080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/983

ENGINE 137.970

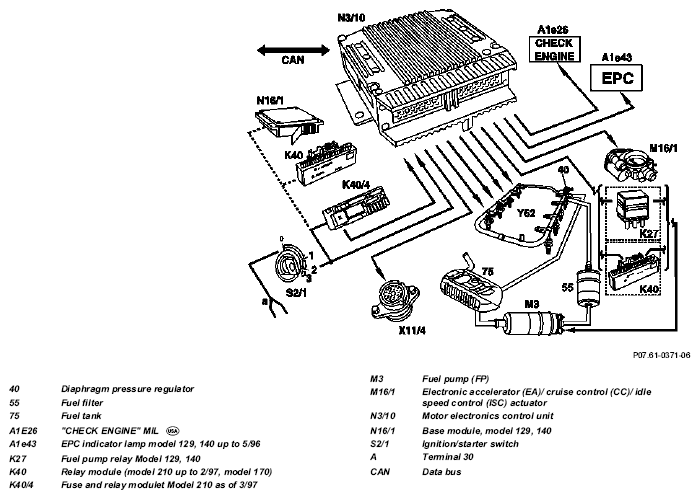

Shown on Engine 119

Fig 1: Identifying ME-SFI Ignition On Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Functions in the case of ignition ON:

Supply the fuel injection and ignition system ME via the base module (N16/1), relay module (K40) or the fuse and relay module (K40/4, K40/7 or F1) with voltage.
Actuating fuel pump for about 1 s (partially audible) as a full-running protection.
An engine start must be completed, however, before repeated actuation of the fuel pump.
Indicator lamps in the instrument cluster must light up (bulb check).
At ignition ON data are transferred via the CAN databus (e.g. for drive authorization or Keyless Go)
The throttle valve actuator checks each time its return spring after ignition ON and carries out a positioner adaptation in certain conditions.

If the fuel pump does not run, first of all check the fuses at the base module (N16/1), relay module (K40) or at the fuse and relay module for the voltage supply of the ME control unit. Then check the fuse of the fuel pump.

Model 170: In addition check crash relay (K56), if the indicator lamps in the instrument cluster do not light up when ignition is ON.

Motor electronics control unit, location/task/ design/function		GF07.61-P-5000F
Voltage supply of ME-SFI control unit function		GF07.61-P-5001F
Fuel pump relay, location/task/design/function		GF54.15-P-4105L
Fuel pump location/task/design/function		GF47.20-P-4003L
Electronic accelerator/cruise control/idle speed control actuator location/task/design/function		GF30.22-P-4010F
Crash relay location/task/function	Model 170	GF15.40-P-5011A
Function of drive authorization system stage X	CAN message output "ignition ON" through different drive authorization systems	GF80.30-P-2002F
