Purge control valve actuation function - GF07.61-P-3013F
ENGINE 104.941 /943 /944 /991 /994as of 1.8.96
ENGINE 104.995
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
with CODE (498) as of Model year 97 Japanese version
ENGINE 111.921 /942 as of 1.9.98,
111.943,
111.944 as of 1.8.96,
111.946 as of 1.6.98,
111.947/973,
111.975 as of 1.8.96
ENGINE 111.945
in MODEL 208.335/435 as of 1.6.98,
202.020/080 as of 1.9.98
ENGINE 111.974
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 119.980 /981 /982 /985
ENGINE 120.982/983
ENGINE 137.970

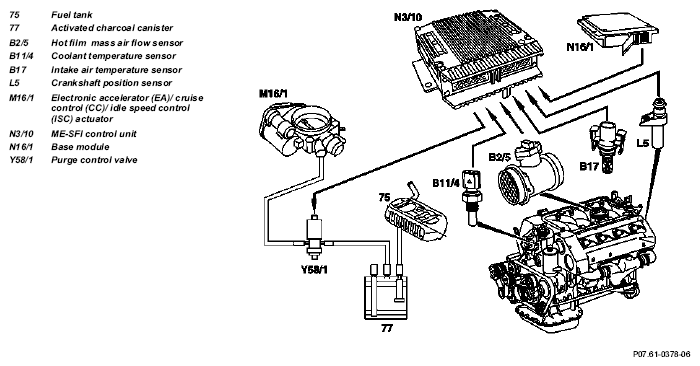

Shown on engine 119 in model 129,140
For controlling the purge quantity the purge control valve is actuated at the ground side by the ME-SFI control unit by means of a pulse width-modulated signal. The purge quantity is determined by constantly opening and closing the purge control valve for on and off periods of various lengths.
The frequency of the pulse width modulation signal is selected from a speed-dependent characteristic in such a way, that all cylinders are uniformly supplied with fuel vapors.
The purge control valve is actuated when the engine is at operating temperature, but not in the deceleration mode.
The following information is processed in the ME-SFI control unit:
- Engine speed
- Air mass (boost pressure in supercharged engines)
- Coolant temperature
- Intake air temperature (charge air temperature in supercharged engines)
| Motor electronics control unit, location/task/ design/function | GF07.61-P-5000F | ||
| Coolant temperature sensor, location/task/ design/function | Engine 119, 120 | GF07.04-P-5026F | |
| Engine 104, 111 | GF07.04-P-5026G | ||
| Engine 112, 113, 137 | GF07.04-P-5026A | ||
| Purge control valve, location/task/design/ function | GF47.30-P-4030L | ||
| Hot film mass air flow sensor, location/task/ design/function | Engine 119, 120 (round connector) |
GF07.07-P-4118E | |
| Engine 104, 111, 112, 113, 137 | GF07.07-P-4118G | ||
| Crankshaft position sensor, location/task/ design/function | GF07.04-P-4116F | ||
| Intake air temperature sensor, location/task/ design/function | GF07.04-P-2100F | ||
| Voltage supply of ME-SFI control unit function | GF07.61-P-5001F |
