Component Locations

NOTE: The All-Activity-Module (AAM) (N10) is located in fuse/relay module box, on left side of engine compartment. AAM is plugged into fuse/relay module box (F1) from underneath.

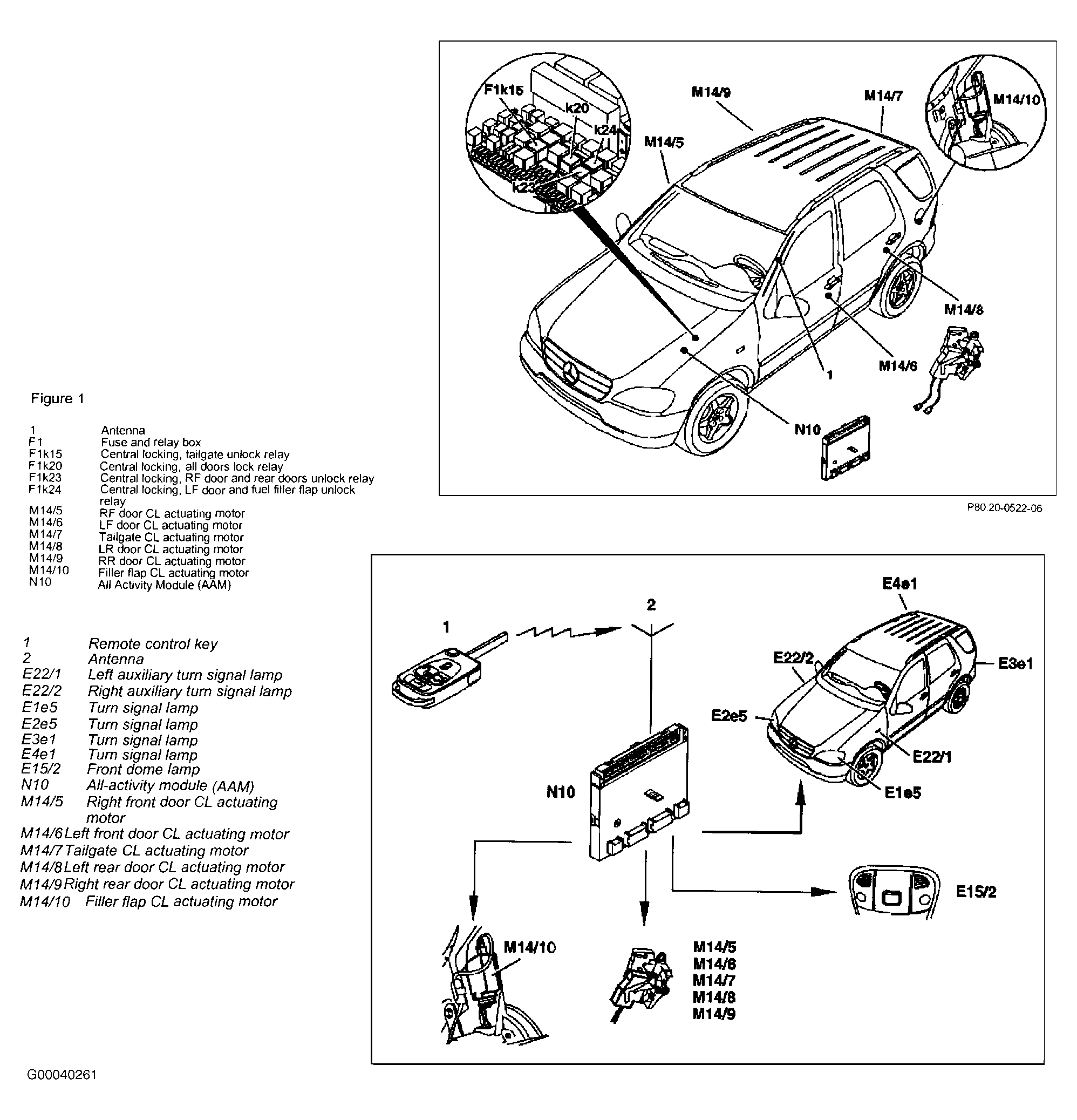

Fig 1: Component Locations

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
