Ignition coils, location/task/design/function - GF15.10-P-3102A: Notes
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

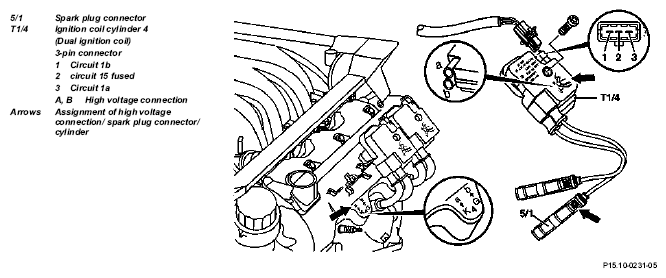

Shown on ENGINE 112
| Ignition coils, location | GF15.10-P-3102-01A | ||
| Ignition coils, task | Supplying adequate ignition energy in all operating conditions for the particular ignition circuit. | ||
| Ignition coils, design | One double ignition coil for each cylinder. Attached to cylinder head cover. | ||
| Ignition coils, function | GF15.10-P-3102-02A |
