Symptom Diagnostics

For symptom diagnosis chart reference, refer to the following list.

• Preglow indicator lamp does not light with glow/starter switch ON, engine can be started. See Fig 1.
• Preglow indicator lamp does not light, engine cannot be started. Fig 1.
• Preglow indicator lamp lights for approx. 1 minute while driving. Fig 1.
• Preglow indicator lamp lights while driving or lights intermittently. Fig 1.

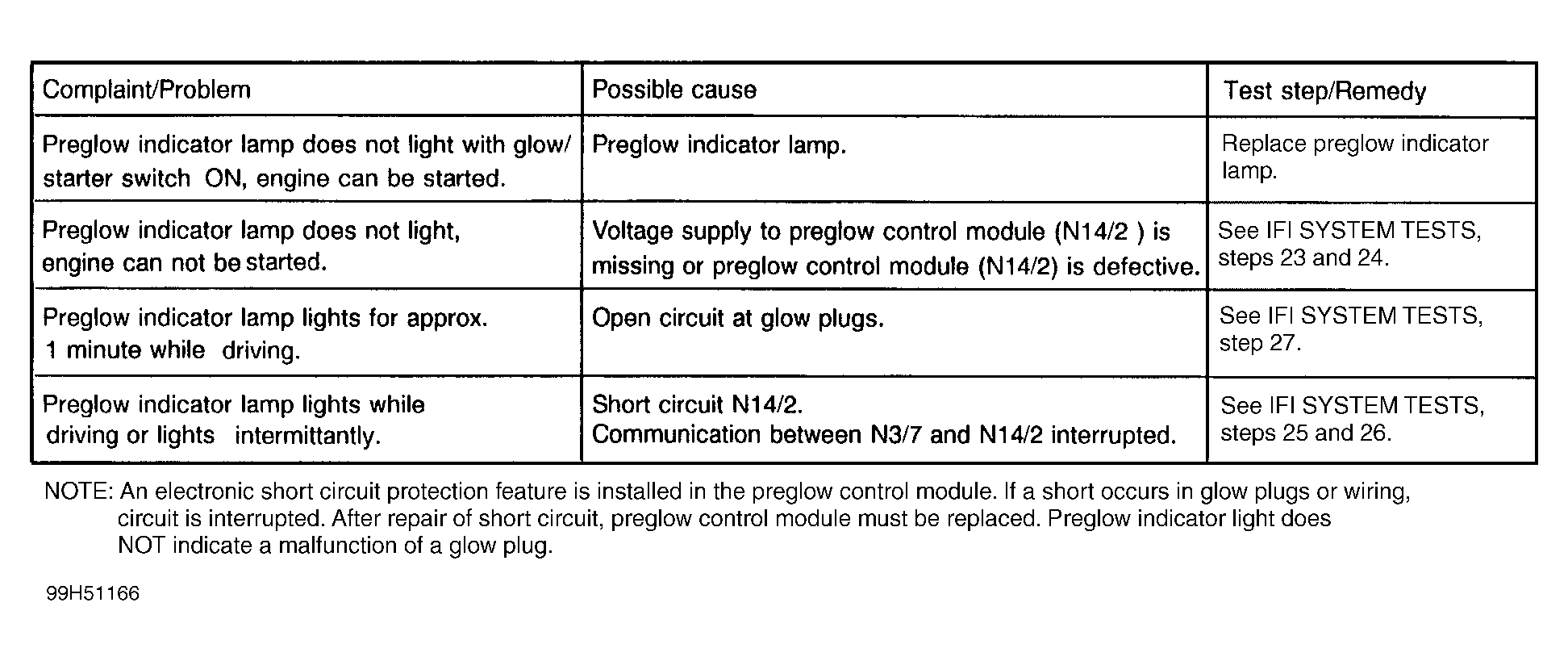

Fig 1: Symptom Diagnostics

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
