EDC diesel indicator lamp location/task/function - GF07.13-P-3112H
ENGINE 604.910 in MODEL 202.121 to 31.7.96
ENGINE 604.912 in MODEL 210.004 to 31.5.96
ENGINE 605.910 in MODEL 202.125
ENGINE 605.912 in MODEL 210.010 to 31.5.96
ENGINE 605.960 in MODEL 202.128 to 31.3.96
ENGINE 606.912 in MODEL 210.020 to 31.5.96 with CODE (491) U.S. version

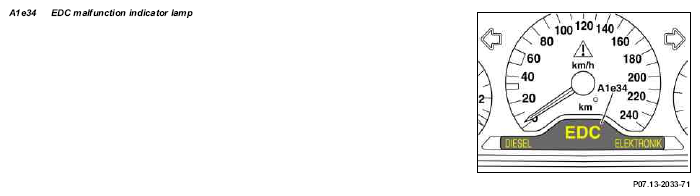

| EDC MIL location | Model 202 to 08.95 | GF07.13-P-3112-01H | ||
| Model 202 as of 09.95 and model 210 without multifunction display. Model 210 with multifunction display in the center of the instrument cluster |
GF07.13-P-3112-01HA | |||
| EDC MIL task | To indicate a fault in the injection system | |||
| EDC MIL function | Ignition "ON" → | Indicator lamp: ON | ||
| Engine idling → | Indicator lamp: OFF | |||
| Driving → | Indicator lamp: OFF | |||
| Fault → | Indicator lamp: ON | |||
| When the engine is running, the Electronic Diesel Control (EDC) malfunction indicator lamp (A1e34) will remain lit if no input signals are received by the IFI [ERE] control module (N3/7) or DFI [EVE] control module (N3/8) for >1 s | ||||
