Fuse and relay module location/task/function - GF07.13-P-3141H

ENGINE 604.910 in MODEL 202.121 as of 1.8.96, 202.182

ENGINE 604.915 in MODEL 202.122 /180

ENGINE 605.960 in MODEL 202.128 as of 1.8.96, 202.188

ENGINE 602.982 in MODEL 210.017 /217 /617 as of 1.3.97

ENGINE 604.917 in MODEL 210.003 as of 1.3.97

ENGINE 604.912 in MODEL 210.004 as of 1.3.97

ENGINE 605.912 in MODEL 210.010 /210 /610 as of 1.3.97

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 611.960 in MODEL 202.133 /134 /193 /194

ENGINE 611.961 in MODEL 210.006 /007 /206 /606

ENGINE 612.961 in MODEL 210.016 /216

ENGINE 605.962 in MODEL 210.015 /215

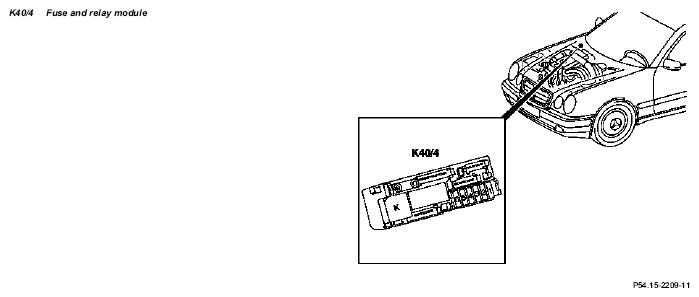

Fig 1: Identifying Fuse And Relay Module Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fuse and relay module location	In the engine compartment, in the control module box or the module box
Fuse and relay module task	To supply power to the control modules and electrical components To protect the circuits of control modules and electrical components To supply power to the engine control module at ignition OFF.
Fuse and relay module function		GF07.13-P-3141-02HA
