ME-SFI part load/full load operation function - GF07.61-P-3016F
ENGINE 104.941 /943 /944 /991 /994as of 1.8.96
ENGINE 104.995
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
with CODE (498) as of Model year 97 Japanese version
ENGINE 111.921 /942 as of 1.9.98,
111.943,
111.944 as of 1.8.96,
111.946 as of 1.6.98,
111.947/973,
111.975 as of 1.8.96
ENGINE 111.945
in MODEL 208.335/435 as of 1.6.98,
202.020/080 as of 1.9.98
ENGINE 111.974
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 119.980 /981 /982 /985
ENGINE 120.982/983
ENGINE 137.970

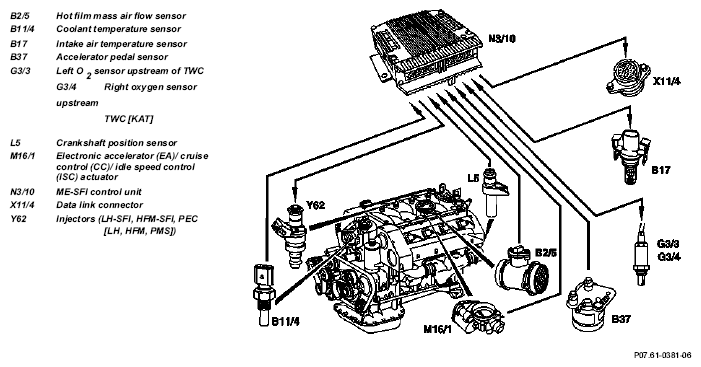

Shown on Engine 119
Task
Partial load operation: when engine is at normal operating temperature ensure, together with lambda control, optimal exhaust emission values and low-cost fuel consumption.
Full load operation: ensure maximum engine torque when throttle valve is fully opened. The injection time is extended accordingly for this purpose.
Design/function
The respective quantity of fuel is metered to the engine in line with the map.
The fuel quantity is dependent on:
- Position of accelerator pedal sensor
- Air mass
- Boost pressure in supercharged engines
- Engine speed
- Engine load
- Coolant temperature
- Intake air temperature
- Charge air temperature in supercharged engines
- Lambda control
- Correction programming with HHT or STAR DIAGNOSIS
| Motor electronics control unit, location/task/ design/function | GF07.61-P-5000F | ||
| Coolant temperature sensor, location/task/ design/function | Engine 119, 120 | GF07.04-P-5026F | |
| Engine 104, 111 | GF07.04-P-5026G | ||
| Engine 112, 113, 137 | GF07.04-P-5026A | ||
| Intake air temperature sensor, location/task/ design/function | GF07.04-P-2100F | ||
| Crankshaft position sensor, location/task/ design/function | GF07.04-P-4116F | ||
| Hot film mass air flow sensor, location/task/ design/function | Engine 104, 111, 112, 113, 137 | GF07.07-P-4118G | |
| Engine 119, 120 (round connector) |
GF07.07-P-4118E | ||
| Pedal value sensor, location/task/design/ function | GF30.20-P-4011L | ||
| Electronic accelerator/cruise control/idle speed control actuator location/task/design/function | GF30.22-P-4010F | ||
| Fuel injector, location/task/design/function | GF07.03-P-5004F | ||
| Correction programming function | GF07.61-P-3031F | ||
| ME-SFI ignition system function | GF15.12-P-0001F | ||
| ECI ignition system function | Engine 137 | GF15.15-P-3000L | |
| ME fuel supply function | Engine 104, 111, 119, 120 in Model 129, 140, 170, 202, 208, 210 |
GF07.61-P-3004F | |
| Engine 112, 113, 137 (except in Model 203, 209, 211) |
GF07.61-P-3004A | ||
| Engine 112.91/94/95 203 Engine 112.91/94/95, 113.96 in Model 211 Engine 112.912/955, 113.968 in Model 209 |
GF07.61-P-3004P | ||
| ME-SFI lambda control function | GF07.61-P-4022F | ||
| Electronic accelerator, location/design/function | Engine 104, 111, 112, 113, 119, 137 | GF30.20-P-3010E | |
| Engine 120.98 | GF30.20-P-3010F |
