ME-SFI start quantity control function - GF07.61-P-3010F
ENGINE 104.941 /943 /944 /991 /994as of 1.8.96
ENGINE 104.995
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
with CODE (498) as of Model year 97 Japanese version
ENGINE 111.921 /942 as of 1.9.98,
111.943,
111.944 as of 1.8.96,
111.946 as of 1.6.98,
111.947/973,
111.975 as of 1.8.96
ENGINE 111.945
in MODEL 208.335/435 as of 1.6.98,
202.020/080 as of 1.9.98
ENGINE 111.974
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 119.980 /981 /982 /985
ENGINE 120.982/983
ENGINE 137.970

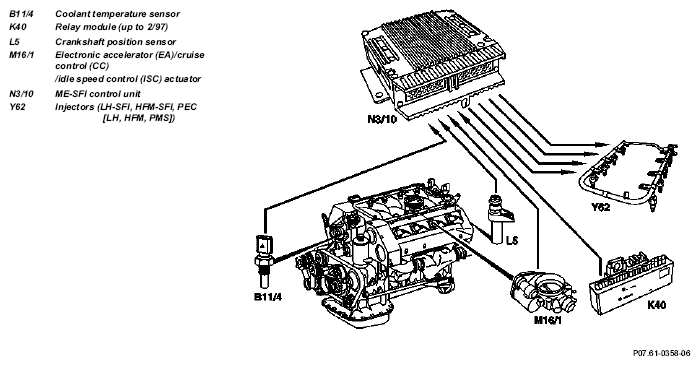

Shown on Engine 119 in Model 210
Task
In order to facilitate starting of the engine when cold, additional fuel must be injected during engine start operation, depending on the coolant temperature. The increased quantity of fuel injected is achieved by extending the injection time.
Design/function
The start quantity control is dependent on:
- Start recognition
- Coolant temperature
- Engine speed
- Engine speed
- Engine shutoff time
- Altitude on engine 137 and engine 112, 113 with ME 2.8
The start quantity control is enabled after start recognition. It continues to remain activated until a temperature-related engine speed is exceeded.
The higher the coolant temperature, the lower is the start quantity enable by the ME-SFI control unit.
| Motor electronics control unit, location/task/ design/function | GF07.61-P-5000F | ||
| Start recognition function | Engine 104, 111, 112, 113, 137 | GF07.13-P-3014G | |
| Engine 119, 120 (via engine speed signal) | GF07.13-P-3014F | ||
| Crankshaft position sensor, location/task/ design/function | GF07.04-P-4116F | ||
| Coolant temperature sensor, location/task/ design/function | Engine 119, 120 | GF07.04-P-5026F | |
| Engine 104, 111 | GF07.04-P-5026G | ||
| Engine 112, 113, 137 | GF07.04-P-5026A | ||
| Pressure sensor location/design/task/function | with air injection Engine 104 and 111 Engine 112, 113 Engine 119, 120, 137 Engine 113 with CODE 479 (cylinder shutoff) |
GF07.04-P-5014F | |
| Electronic accelerator/cruise control/idle speed control actuator, location/task/design/function | GF30.22-P-4010F | ||
| Fuel injector, location/task/design/function | GF07.03-P-5004F | ||
| Voltage supply of ME-SFI control unit function | GF07.61-P-5001F | ||
| Electronic power control indicator lamp, location/task/design/function | Engine 119, 120 in Model 129, 140 up to 5/96 |
GF30.20-P-4012L | |
| Engine diagnosis malfunction indicator lamp, location/task/function | EURO3/4 (Code 925/926 or standard) | GF54.30-P-4102A | |
| CHECK ENGINE malfunction indicator lamp, location/task/function | GF07.13-P-3144F | ||
| Three-way catalytic converter location/task/ design/function | GF49.10-P-3002F |
