ME-SFI warming-up control function - GF07.61-P-3022F

ENGINE 104.941 /943 /944 /991 /994as of 1.8.96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98,

111.943,

111.944 as of 1.8.96,

111.946 as of 1.6.98,

111.947/973,

111.975 as of 1.8.96

ENGINE 111.945

in MODEL 208.335/435 as of 1.6.98,

202.020/080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/983

ENGINE 137.970

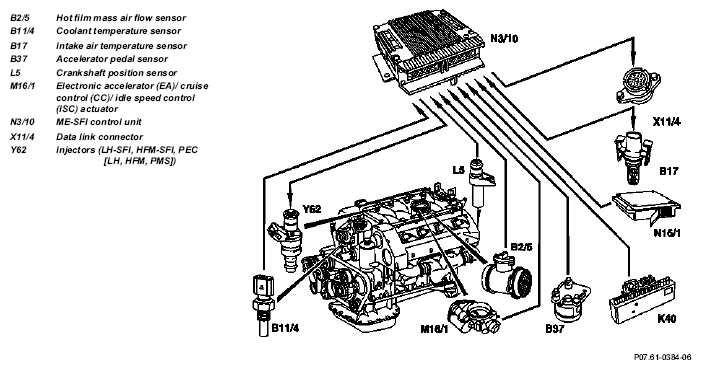

Shown on Engine 119

Task

Further enriching the fuel-air mixture after start and post-start enrichment because part of the fuel-air mixture precipitates on cold parts of the engine.

Design/function

The additional quantity of fuel is metered to the engine in line with the map. The injection time is extended accordingly for this purpose.

The warming-up enrichment is dependent on:

• Coolant temperature
• Intake air temperature
• Charge air temperature in supercharged engines
• Engine speed
• Engine load
• Idle speed/part load operation
• Correction programming with HHT or STAR DIAGNOSIS

	Motor electronics control unit, location/task/ design/function		GF07.61-P-5000F
	Coolant temperature sensor, location/task/ design/function	Engine 119, 120	GF07.04-P-5026F
		Engine 104, 111	GF07.04-P-5026G
		Engine 112, 113, 137	GF07.04-P-5026A
	Intake air temperature sensor, location/task/ design/function		GF07.04-P-2100F
	Crankshaft position sensor, location/task/ design/function		GF07.04-P-4116F
	Hot film mass air flow sensor, location/task/ design/function	Engine 104, 111, 112, 113, 137	GF07.07-P-4118G
		Engine 119, 120 (round connector)	GF07.07-P-4118E
	Pedal value sensor, location/task/design/ function		GF30.20-P-4011L
	Electronic accelerator/cruise control/idle speed control actuator location/task/design/function		GF30.22-P-4010F
	Fuel injector, location/task/design/function		GF07.03-P-5004F
	Correction programming function		GF07.61-P-3031F
