Overlap, function - GF27.60-P-5137-04G
Transmission 722.6
Operation

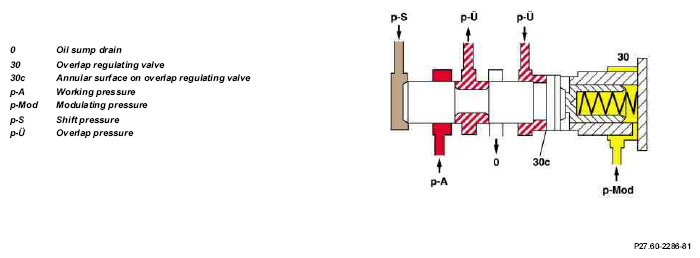

During the shift phase the pressure in the disengaging shift actuator is controlled depending on the engine load (modulating pressure (p-Mod)) and the pressure in the engaging shift actuator. The regulated pressure is inversely proportional to the transfer capacity of the activating shift actuator (regulated overlap).
