BAS Pressure Increase Function

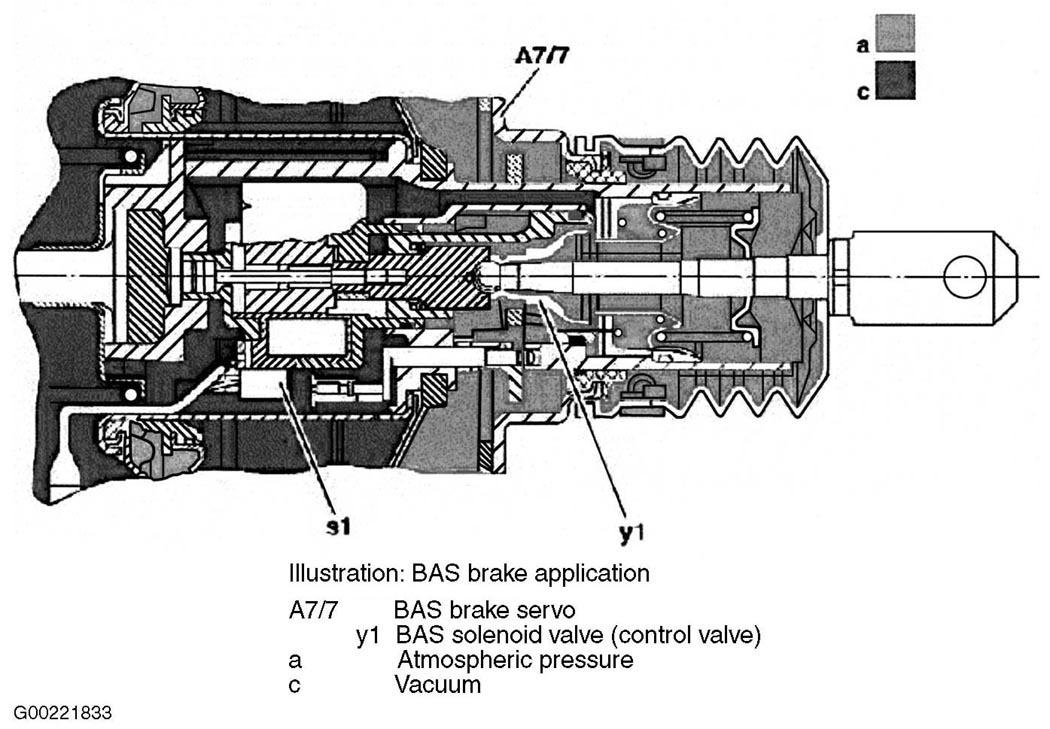

The activation conditions for a BAS brake application are fulfilled, the BAS solenoid valve (y1) is opened. Atmospheric pressure is applied to the back of the power diaphragm. The pressure different between the front and back of the diaphragm provides maximum brake power assistance.
