Connecting Test Equipment To Engine Control Module

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 1996 Mercedes-Benz SL320, 1996 Mercedes-Benz C36, 1996 Mercedes-Benz C280, 1995 Mercedes-Benz SL320, and 1995 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

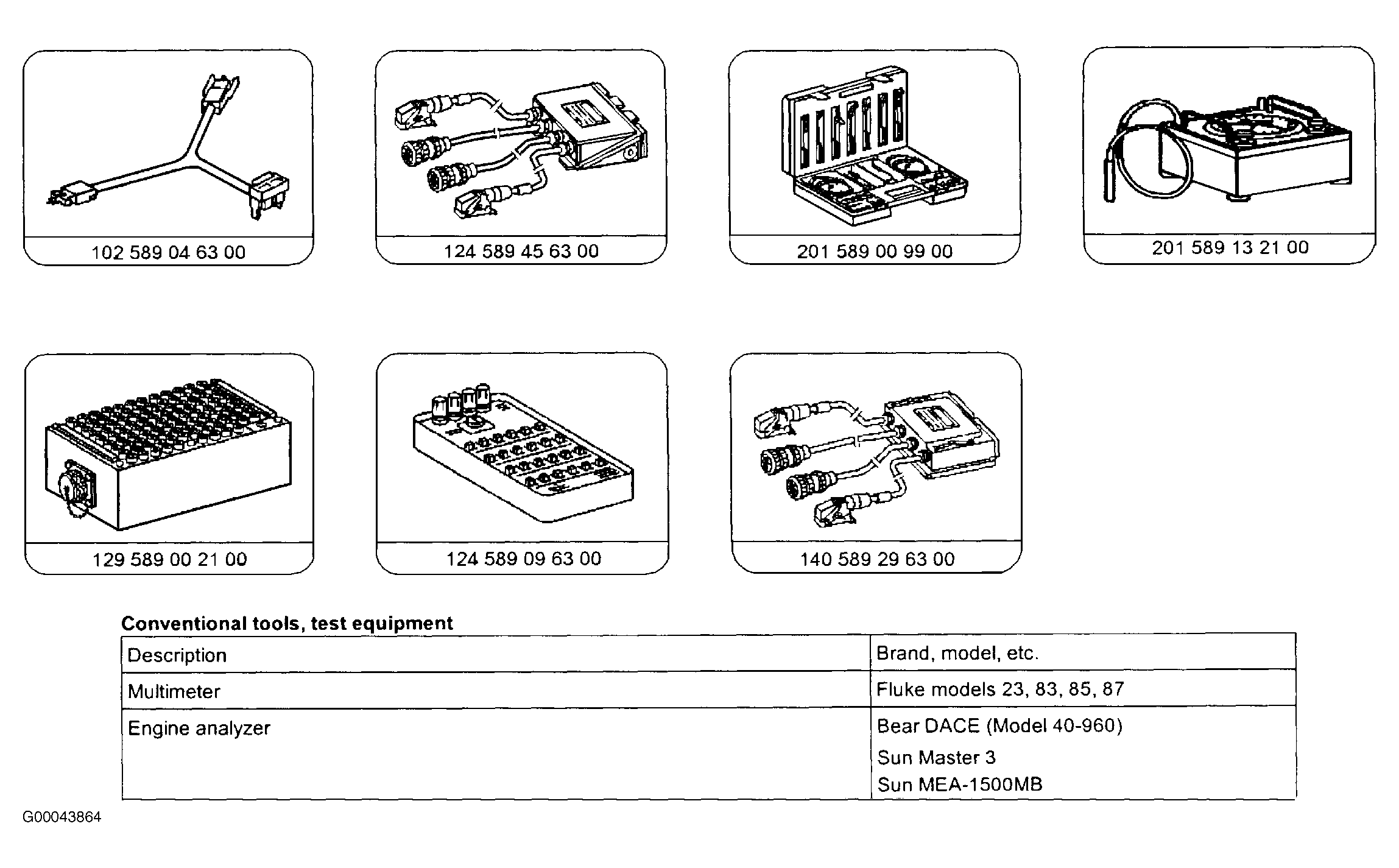

Fig 1: Identifying Special Tools
G00043864Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

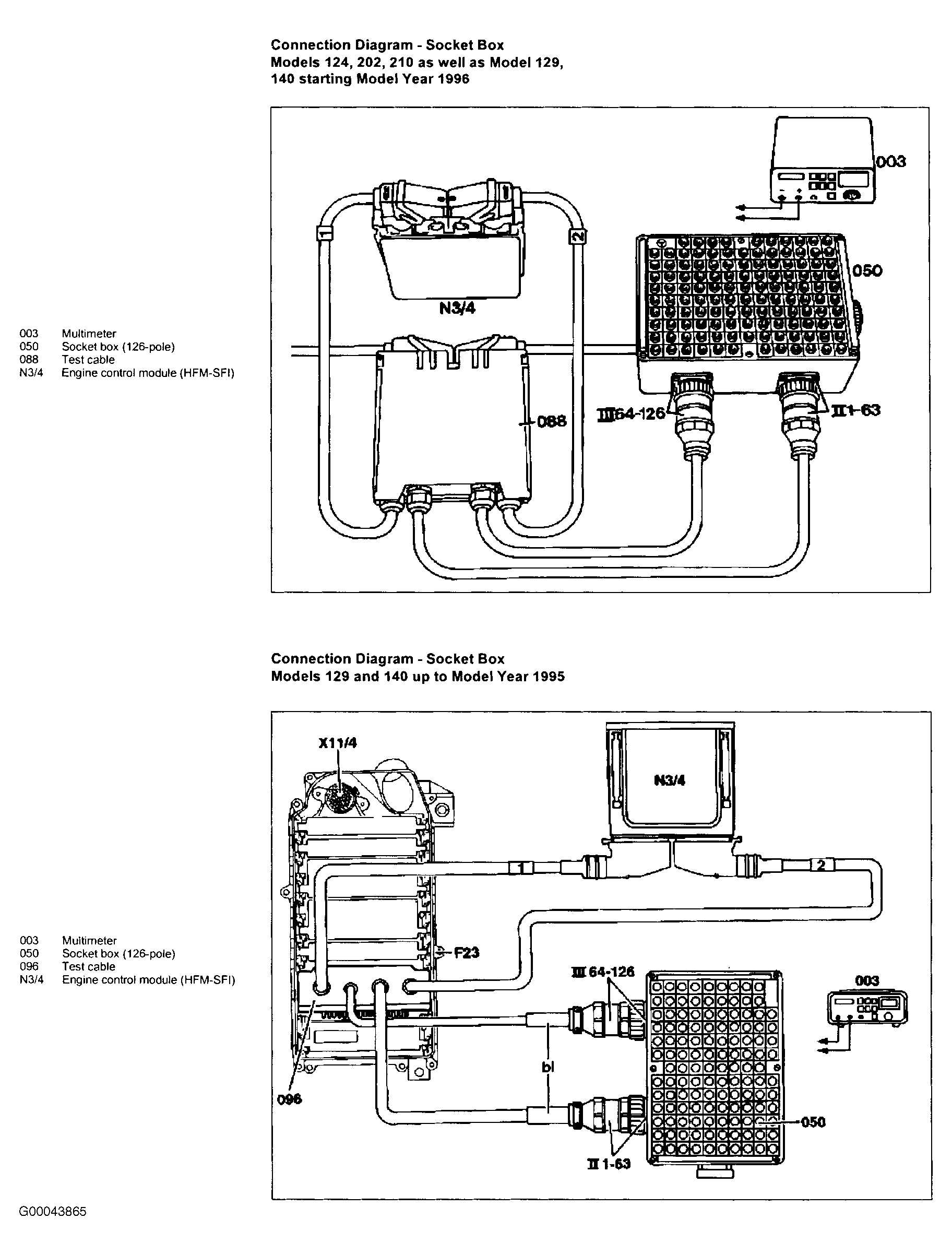

Fig 2: Connecting Socket Box To Engine Control Module
G00043865Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
