Connector Identification

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 1996 Mercedes-Benz SL320, 1996 Mercedes-Benz C36, 1996 Mercedes-Benz C280, 1995 Mercedes-Benz SL320, and 1995 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Data Link Connector Pin Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Engine Control Module Connector 1 Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Engine Control Module Connector 2 Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

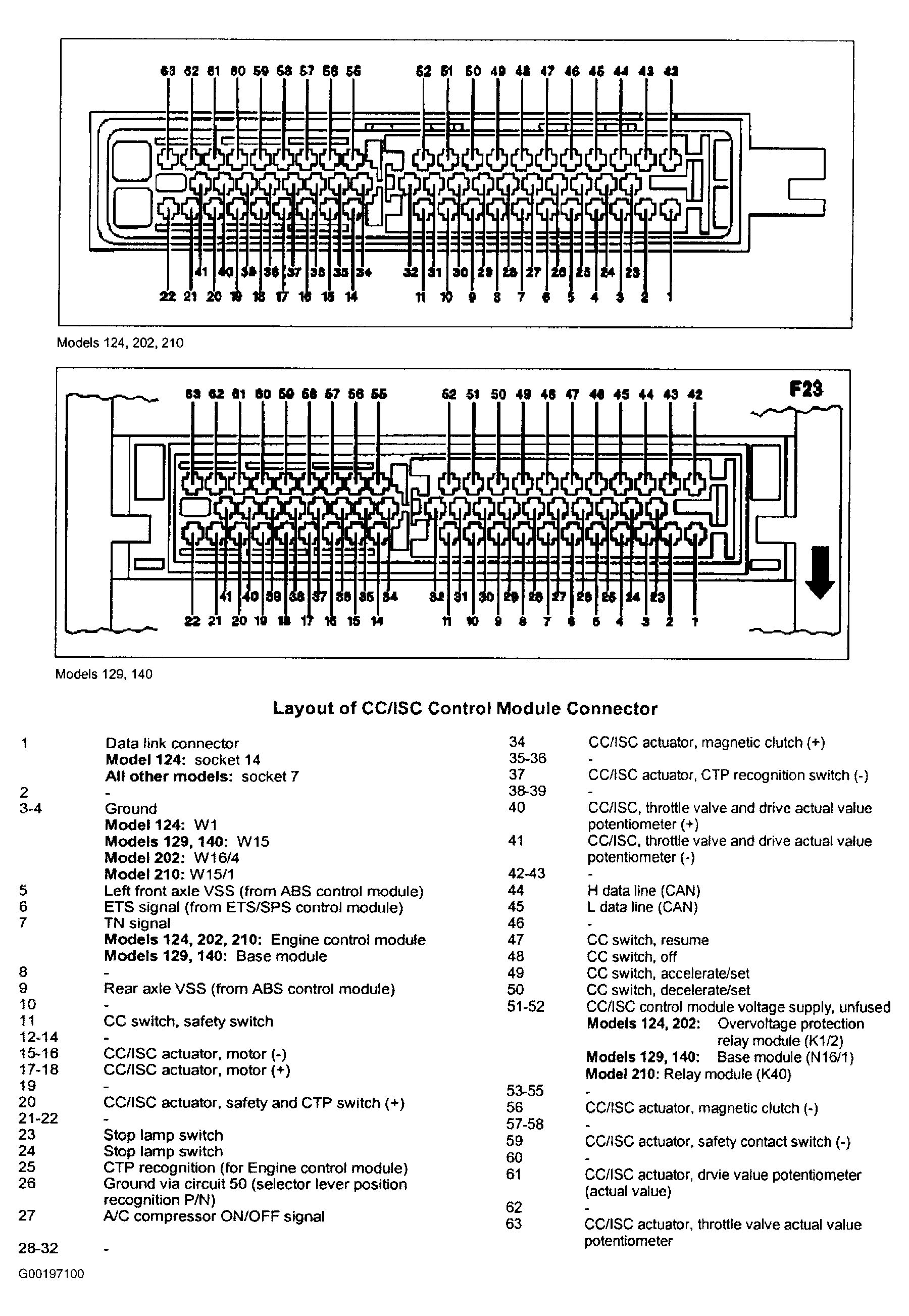

Fig 4: Identifying Cruise Control/Idle Speed Control Connector Pin Layout

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
