Diagnostic Trouble Code Definitions

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 1996 Mercedes-Benz SL320, 1996 Mercedes-Benz C36, 1996 Mercedes-Benz C280, 1995 Mercedes-Benz SL320, and 1995 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

In Fig 1-Fig 3 the 1 and 2 digit codes in the left hand column are for generic scan tools. The 3 digit codes starting with zero or 1 are read from the Mercedes-Benz factory scan tool. See .

CRUISE CONTROL DIAGNOSTIC TROUBLE CODE REFERENCE CHART

Generic DTC	Mercedes-Benz DTC	See
1	-	Fig 1
2	002	Fig 1
2	006	Fig 1
2	007	Fig 1
2	008	Fig 1
2	009	Fig 1
2	0025	Fig 1
-	037	Fig 1
3	048	Fig 2
3	049	Fig 2
3	050	Fig 2
3	051	Fig 2
3	054 & 056	Fig 2
3	055	Fig 2
3	057	Fig 2
4	064	Fig 2
5	080	Fig 2
6	097	Fig 2
7	112, 115 & 117	Fig 3
8	128, 129 & 130	Fig 2
9	144	Fig 2
9	145	Fig 2
9	146	Fig 2
10	160	Fig 2
11	176-178 & 182	Fig 2

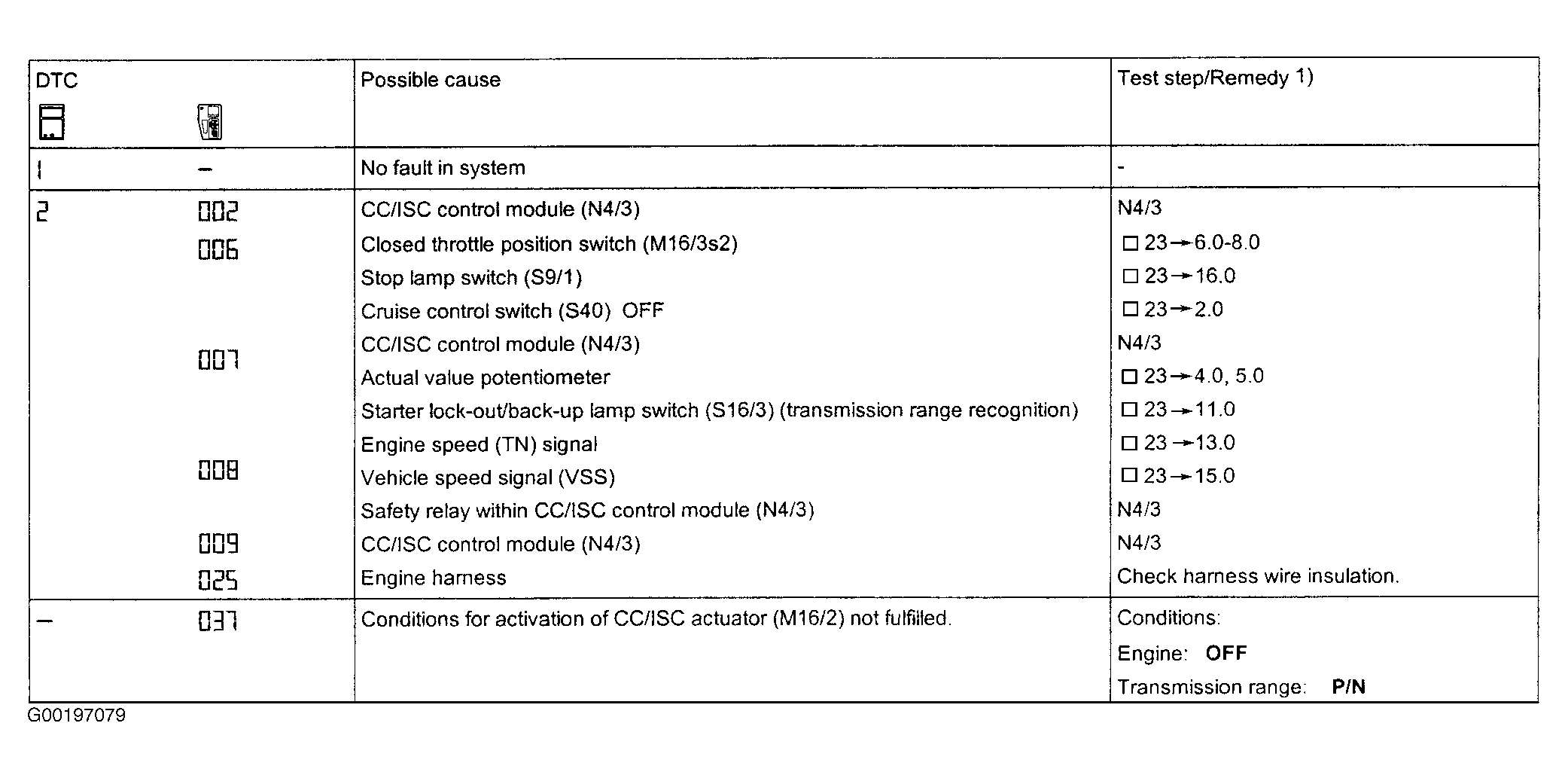

Fig 1: Diagnostic Trouble Code Definitions (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

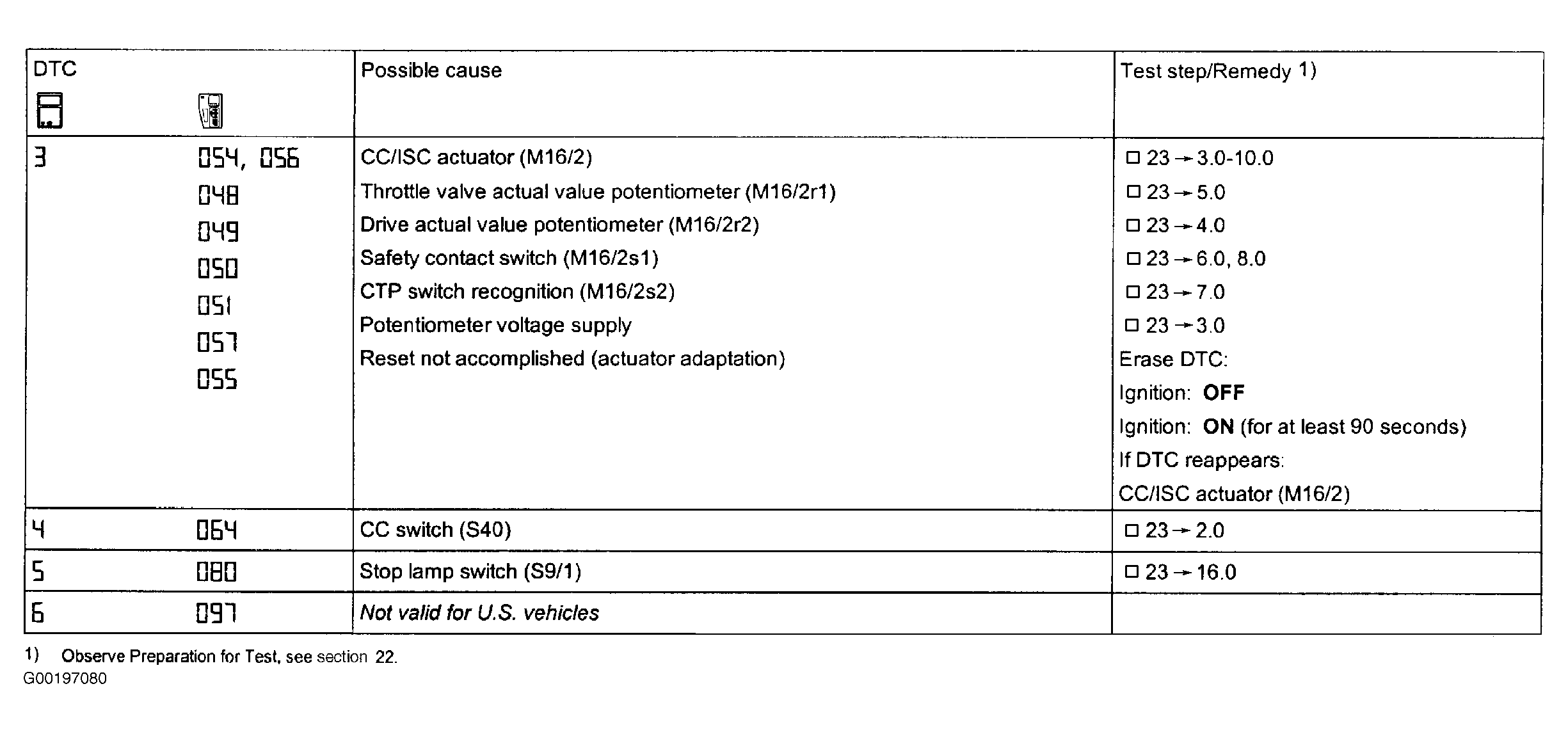

Fig 2: Diagnostic Trouble Code Definitions (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

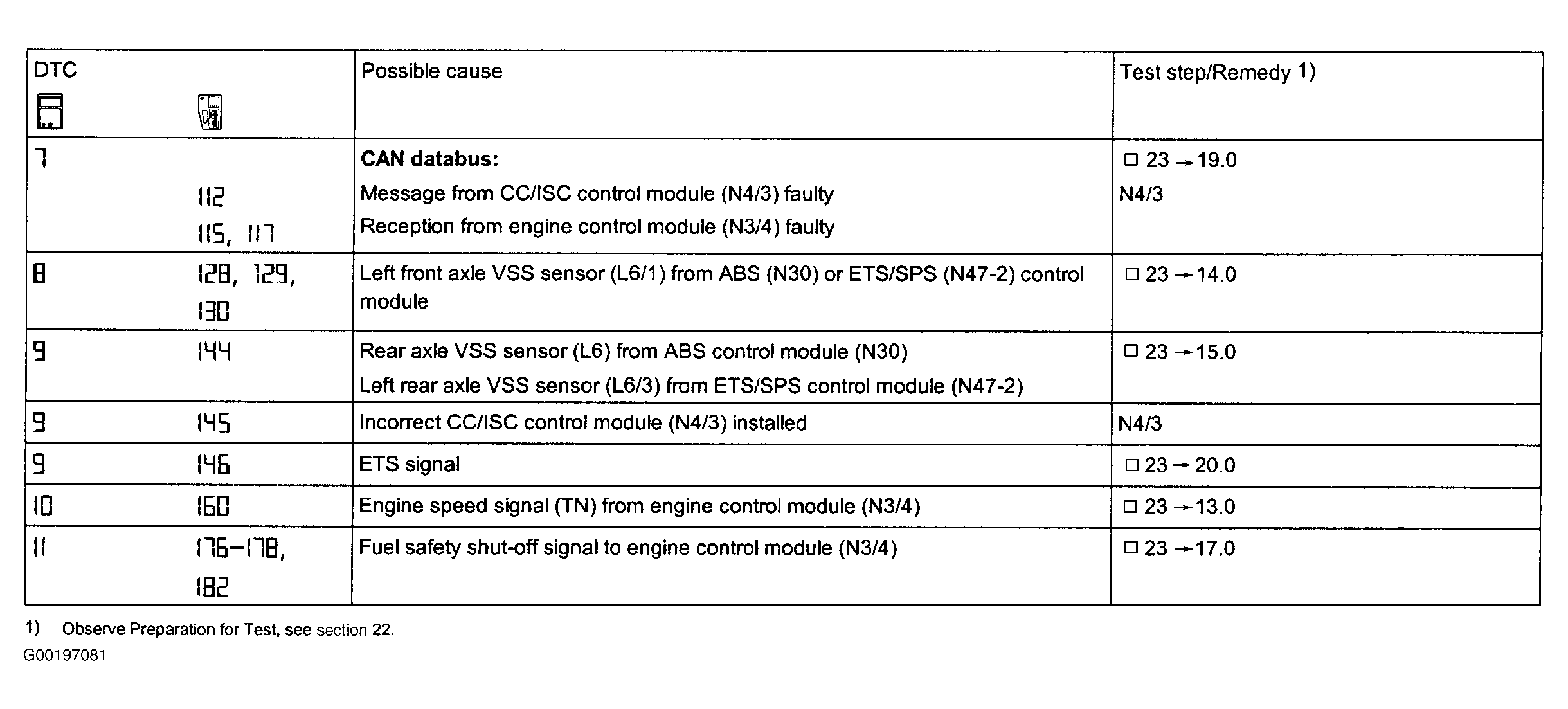

Fig 3: Diagnostic Trouble Code Definitions (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
