COMAND Unit Replacement (82.85/182)
Publication date: 2001-12-27Reference number: 82.85/182
COMAND UNIT REPLACEMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): 82.85/2001, Date of Issue:
December 27, 2001
| BMW: | Models 203, 208 and 210 with COMAND, Model Year 2000 and 2001 |
| GROUP: | 82 - Body Electrical System, Telephone (CTEL), Radio/CD Changer, Wiper/Washer System, Anti-Theft Alarm (ATA), Convenience Feature |
SUBJECT
Models 203, 208 and 210 with COMAND
SERVICE INFORMATION
If you encounter any of the fault symptoms below on Model Year 2000 or 2001 Model 203, 208 and 210 vehicles with COMAND unit production date of week 41/2000 to week 49/2000, please replace the COMAND unit.
Fault symptoms:
- COMAND does not work at times.
- Screen flicker.
- Route lost when engine is turned off for a break in the journey.
- Background noise/distorted sound.
- Sudden increase in volume when the engine is started.
- Station search function inoperative.
- Display dimmed at times.
- Navigation function inoperative
AFFECTED VEHICLES
| Model | As of Approx. VIN | To VIN |
|---|---|---|
| 203 | A072500 | A113578 |
| 203 | F049970 | F083917 |
| 208 | F142251 | F176566 |
| 208 | T067468 | T077974 |
| 210 | X050589 | X055797 |
| 210 | B247967 | B324783 |

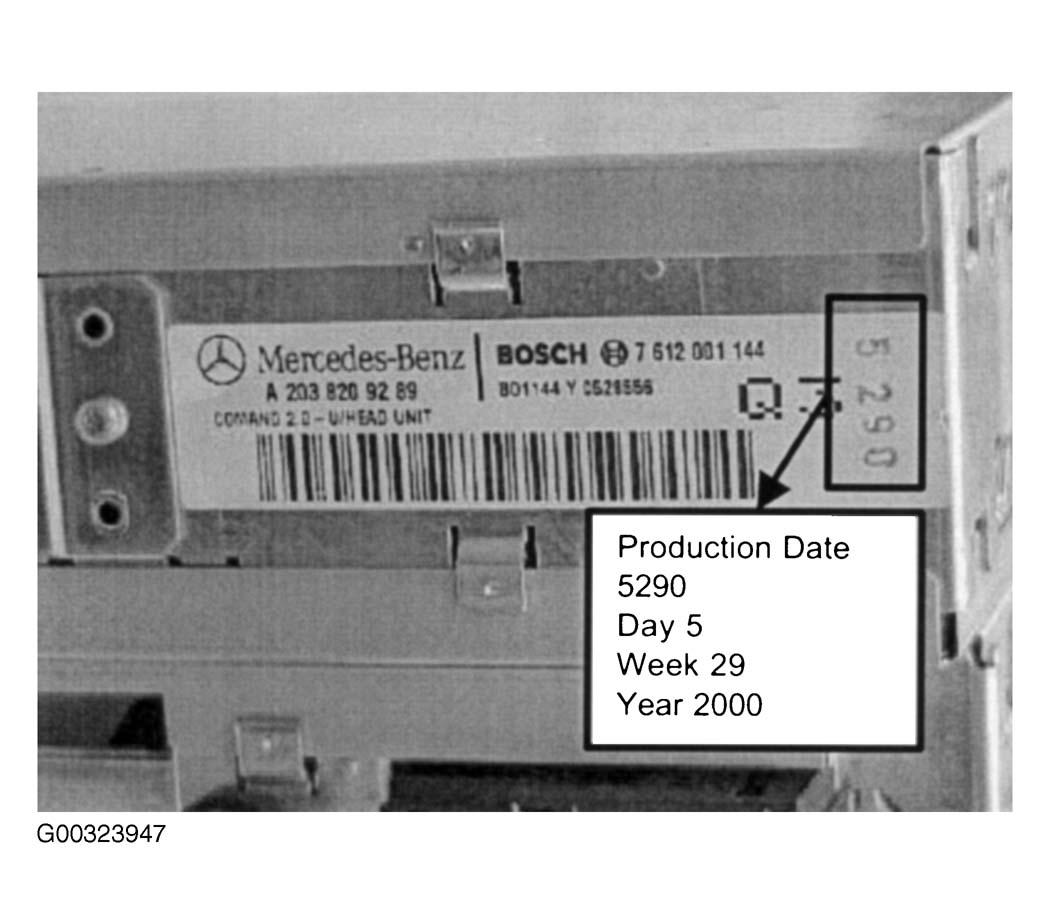

The above vehicles were fitted with a COMAND module with a production date between X410 and X490 (the first digit is not relevant). The date is stamped on the sticker above the connector block (refer to Fig 1 ). Before replacing the COMAND module, please verify the production date on the part number label. (Fig 1 ).
IN CASE OF WARRANTY
Operation: Reset Module
WARRANTY INFORMATION
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator (s) |
|---|---|---|---|
| 82851 | 82-7382 | .4 | H0 |
| 82851 | 82-7382 | .7 | E0, F0 |
| 82851 | 82-7382 | 1.0 | P0 |
