Memory circuit, function - GF91.29-P-0001F

MODEL 210 with CODE (241) Memory for electrically adjustable left front seat with CODE (242a) Memory for electrically adjustable right front seat with CODE (275a) Memory package (driver's seat, steering column, mirrors)

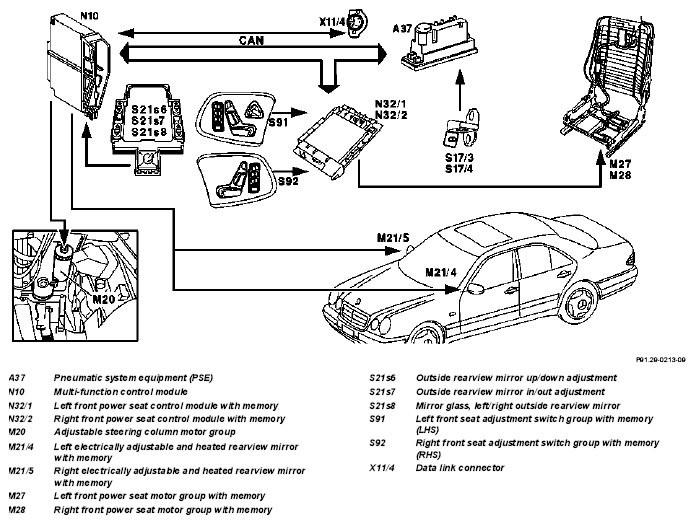

Fig 1: Identifying Memory Circuit, Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1	Power seat with memory	GF91.29-P-0002F
2	Electric steering column adjustment with memory	GF46.15-P-0001F
3	Electric rearview mirror adjustment with memory	GF88.79-P-0001F
