Ventilation Mode Function - GF91.30-P-2005A
MODEL 210 as of 1.7.99 up to 31.5.01, 210 as of 1.6.01 with CODE (401a) Seat ventilation of front seats
Function prerequisites:
- Terminal 15R or terminal 15 ON
- there is no shutdown on faults for the control module
The ventilation mode has three stages:
The motor speed,
- slow
- medium
- fast
is switched on/off and changed using the switch for HS and seat ventilation, front left (N25/7s1) and the switch for HS and seat ventilation, front right (N25/7s2) in the control module for HS and seat ventilation, front (N25/7) .
Up to 31.05.01 with code (401a) seat ventilation for front seats The ventilation mode is, if there are no faults, started at stage 3 , switched back automatically after 10 min to stage 2 and after an additional 10 min to stage 1 .
It is possible to switch off or change the seat ventilation to another ventilation stage at any time by means of the switch.
As of 01.06.01 with code (401a) seat ventilation for front seats, the timer control of the ventilation mode for front seats is discontinued. The selected ventilation stage (I, II, III) of the seat ventilation remains switched on and is not switched back automatically .
It is possible to switch off or change the seat ventilation to another ventilation stage at any time by means of the switch.

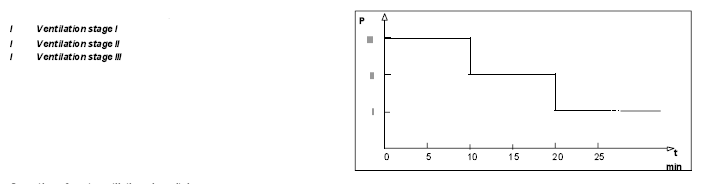

Timer control of seat ventilation up to 31.05.01
Operation of seat ventilation via switch:
| Switch actuation N25/7s1 N25/7s2 | Operating condition of seat ventilation after actuating switch | Function indicator lamp (LED) |
| Off position | OFF | none |
| pressed 1 x | Ventilation stage III | LED 1, 2, 3 |
| pressed 2 x | Ventilation stage II | LED 1, 2 |
| pressed 3 x | Ventilation stage | I LED 1 |
| pressed 4 x | OFF | none |
| pressed 5 x | Ventilation stage III | LED 1, 2, 3 |
| End ventilation mode function | GF91.30-P-2006A | ||
| Shutdown on faults for control module function | GF91.30-P-2007A | ||
| Switch for heated seats/seat ventilation - location/task | GF91.30-P-3004A | ||
| Control module for heated seats and seat ventilation - location/task | GF91.30-P-3005A |
