Cruise control switch, location/task/design/function - GF30.30-P-3100F

ENGINE 104 (except 104.98),

111.946 up to 31.5.98,

111.943,

111.973 up to 31.5.97,

111.920,

111.921 up to 31.8.98,

111.941,

111.942 up to 31.8.98,

111.944 up to 31.5.98,

111.945 up to 31.8.98, 111.974,

111.947/970, 112.942 up to 31.5.98,

119, 120 up to 31.5.97,

668.940/941,611.960/961

with CODE (440a) Cruise control

with CODE (443a) Cruise control and electrically adjustable steering column (codes 400 and 441)

with CODE (446) Cruise control, electrically adjustable steering column and airbag (440, 441 and 442)

ENGINE 104, 111, 112, 113, 119, 120, 137, 613.960, 628.960 (except, 112.96, 113.99) with CODE (494a) USA version

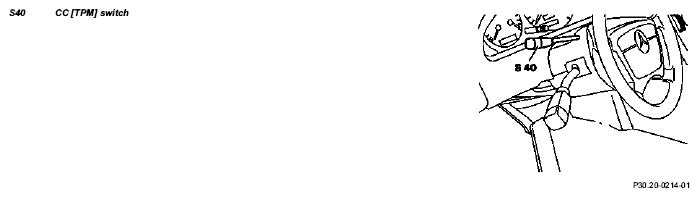

	Cruise control switch location	Left top behind the steering wheel.
	Cruise control switch task	Setting of cruise control and Distronic. With 30 km/h limitation: Switch on and off 30 km/h limitation when below 30 km/h.
	Cruise control switch design	Push-button switch with several switching contacts.
	Cruise control switch function	When the cruise control push-button switch is operated, two switching contacts are always activated simultaneously. The actual input takes place by closing one of the switching contacts (e.g. storing the speed). The safety contact must close simultaneously so that the input is accepted.
